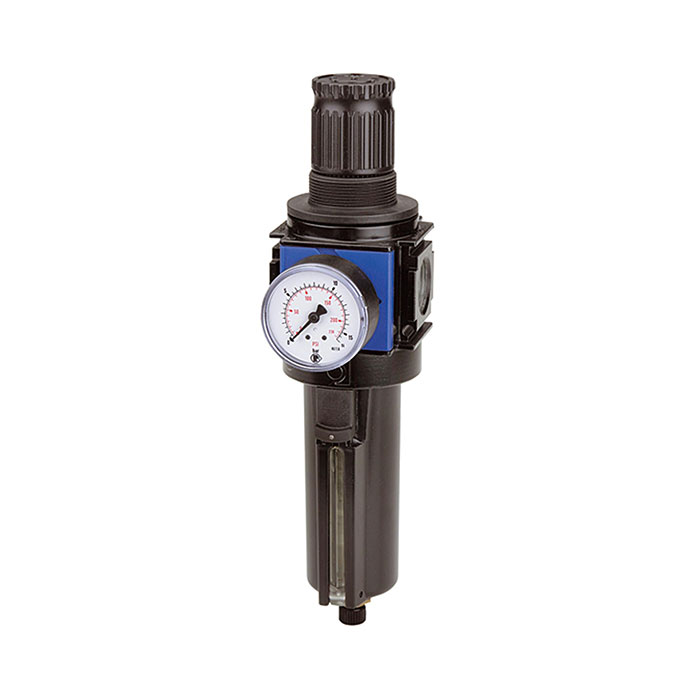

RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 1
Type number: VFR 63 M
EAN: 4047322212687
Filter regulator "variobloc" with metal bowl incl. sight tube and pressure gauge, BG 2, G 1, PE max. 20 bar, control range 0.5 - 10 bar
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Spring cover | POM |
| Thread | G 1 |
| Flow rate | 6500 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 124 mm |
| B | 273 mm |
| C | 98 mm |
| Class name | PLUS |
