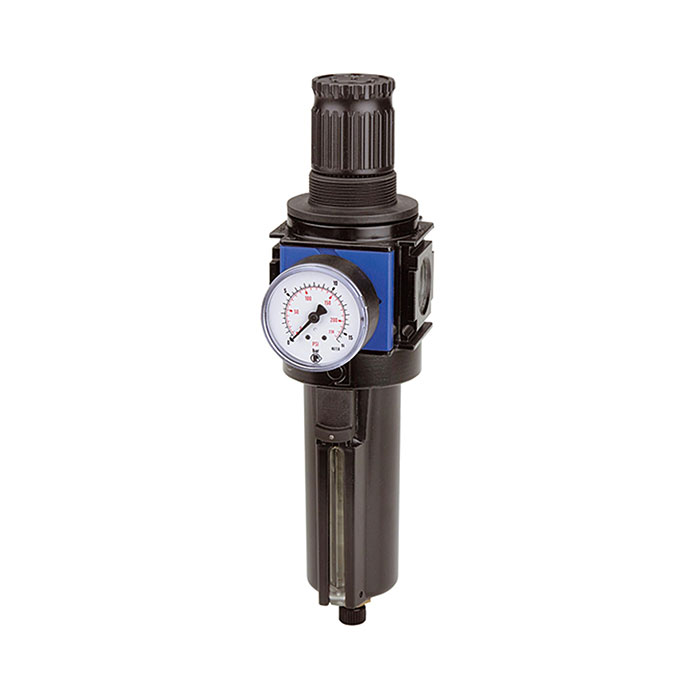

RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 3/4
Type number: VFR 53 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter regulator "variobloc" made of die-cast zinc, for compressed air treatment, 0.5 bar - Type VFR 53 M
The RIEGLER filter regulator "variobloc", metal bowl, sight tube, BG 2, G 3/4 combines compressed air filtration and pressure regulation in one compact device. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 20 bar. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 6500 l/min (at P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, container made of metal container with sight tube. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Spring cover | POM |
| Thread | G 3/4 |
| Flow rate | 6500 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 70 mm |
| B | 273 mm |
| C | 98 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125310] RIEGLER Filter regulator »variobloc« with metal container, Size 1, G 1/4](/web/image/product.template/202453/image_128/%5B125310%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%201-4?unique=23064b7)
|
Type number: VFR 23 M |
150.13 € | |
![[125311] RIEGLER Filter regulator »variobloc« with metal container, Size 1, G 3/8](/web/image/product.template/202454/image_128/%5B125311%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%203-8?unique=0ebd035)
|
Type number: VFR 33 M |
150.13 € | |
![[125314] RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 1](/web/image/product.template/202457/image_128/%5B125314%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201?unique=23064b7)
|
Type number: VFR 63 M |
138.09 € | |
![[125312] RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 1/2](/web/image/product.template/202455/image_128/%5B125312%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201-2?unique=23064b7)
|
Type number: VFR 43 M |
108.68 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100673] RIEGLER Filter element 40 µm, PE sintered](/web/image/product.template/140108/image_128/%5B100673%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20PE%20sintered?unique=37f44b9)
|
Type number: VZ 742 |
5.24 € | |

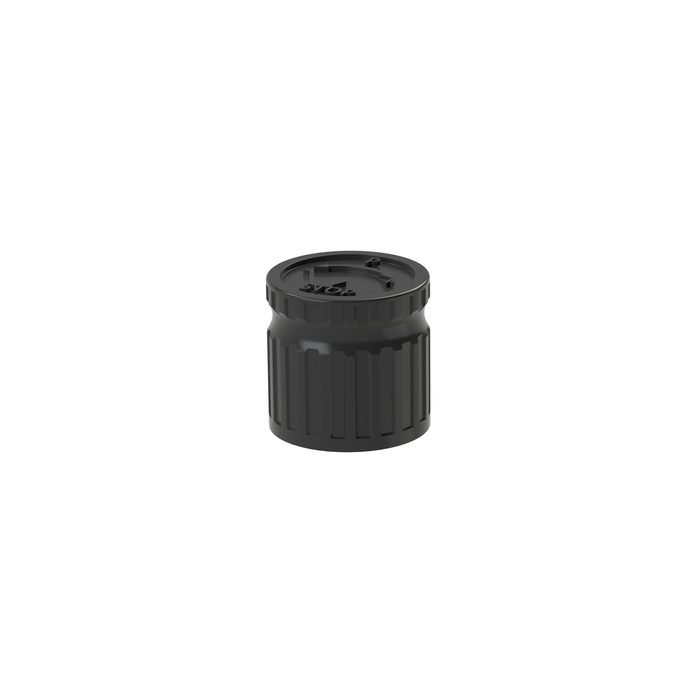

![[118831] RIEGLER Handwheel "variobloc" BG 2 for pressure and filter regulator](/web/image/product.template/280939/image_128/%5B118831%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%202%20for%20pressure%20and%20filter%20regulator?unique=678a166)
|
Type number: 443.3.94 |
2.34 € | |
![[100669] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 2](/web/image/product.template/140104/image_128/%5B100669%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=dc49cec)
|
Type number: VZ 552 |
55.97 € | |

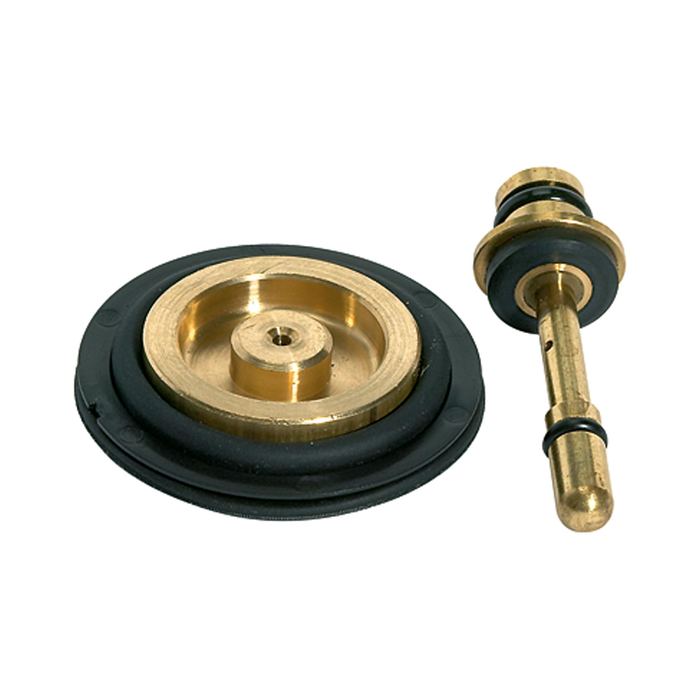

![[100650] RIEGLER Wear part set for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140085/image_128/%5B100650%5D%20RIEGLER%20Wear%20part%20set%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=70785b6)
|
Type number: VZ 782 |
21.94 € | |
