RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 1/2, perforation 3.5 mm
Type number: 5624V104
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Shut-off valve "SYNTESI" made of technopolymer, for compressed air preparation - Type 5624V104
The RIEGLER shut-off valve "SYNTESI", manual, BG2, G 1/2, perforation 3.5 mm adds additional functions to modular maintenance systems. The housing is made of technopolymer. The maximum inlet pressure is 13 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 2 |
| Input connection | G 1/2 |
| Output connection | G 1/2 |
| A | 60.5 mm |
| B | 109 mm |
| Exhaust air | G 1/4 |
| Flow 2 | 4000 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Fuse hole | 3x Ø 3.5 mm |
| Series | Syntesi |
| F | 42.7 mm |
| Flow 1 | 3000 Nl/min |
| Vent flow rate at 6.3 | 2000 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144856] RIEGLER Shut-off valve "SYNTESI", manual, BG1, G 1/4, perforation 3.5 mm](/web/image/product.template/279986/image_128/%5B144856%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20G%201-4%2C%20perforation%203.5%20mm?unique=10f0e8a)
|
Type number: 5612V102 |
42.64 € | |
![[144855] RIEGLER Shut-off valve "SYNTESI", manual, BG1, G 1/8, perforation 3.5 mm](/web/image/product.template/279985/image_128/%5B144855%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20G%201-8%2C%20perforation%203.5%20mm?unique=7044d2f)
|
Type number: 5611V101 |
42.64 € | |
![[144857] RIEGLER Shut-off valve "SYNTESI", manual, BG1, G 3/8, perforation 3.5 mm](/web/image/product.template/279987/image_128/%5B144857%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20G%203-8%2C%20perforation%203.5%20mm?unique=d1fc406)
|
Type number: 5613V103 |
42.64 € | |
![[144844] RIEGLER Shut-off valve "SYNTESI", manual, BG1, without bushings, 3.5mm perforation](/web/image/product.template/279984/image_128/%5B144844%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20without%20bushings%2C%203.5mm%20perforation?unique=64ee8f2)
|
Type number: 5610V100 |
40.42 € | |
![[144862] RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 1, perforation 3.5 mm](/web/image/product.template/279992/image_128/%5B144862%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20G%201%2C%20perforation%203.5%20mm?unique=b16f617)
|
Type number: 5626V106 |
69.10 € | |
![[144861] RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 3/4, perforation 3.5 mm](/web/image/product.template/279991/image_128/%5B144861%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20G%203-4%2C%20perforation%203.5%20mm?unique=21951c4)
|
Type number: 5625V105 |
69.10 € | |
![[144859] RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 3/8, perforation 3.5 mm](/web/image/product.template/279989/image_128/%5B144859%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20G%203-8%2C%20perforation%203.5%20mm?unique=0b59902)
|
Type number: 5623V103 |
60.39 € | |
![[144858] RIEGLER Shut-off valve "SYNTESI", manual, BG2, without bushes, 3.5mm perforation](/web/image/product.template/279988/image_128/%5B144858%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20without%20bushes%2C%203.5mm%20perforation?unique=7a5eb6b)
|
Type number: 5620V100 |
49.22 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100289] RIEGLER Sintered bronze silencer, Slot, G 1/4](/web/image/product.template/139724/image_128/%5B100289%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-4?unique=7601781)
|
Type number: 564-2 |
2.65 € | |
![[100290] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/4, AF 15](/web/image/product.template/139725/image_128/%5B100290%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-4%2C%20AF%2015?unique=98cffbf)
|
Type number: 567-2/M |
3.13 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=eef3aa6)
|
Type number: 9210010 |
6.79 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=3d620d9)
|
Type number: 9210019 |
6.39 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=f780728)
|
Type number: 9210006 |
6.47 € | |
![[145508] RIEGLER SYNTESI" fixing screw, BG 2](/web/image/product.template/279264/image_128/%5B145508%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%202?unique=676a011)
|
Type number: 9210031 |
0.76 € | |
![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=3f5e2bf)
|
Type number: 9062401 |
12.10 € | |

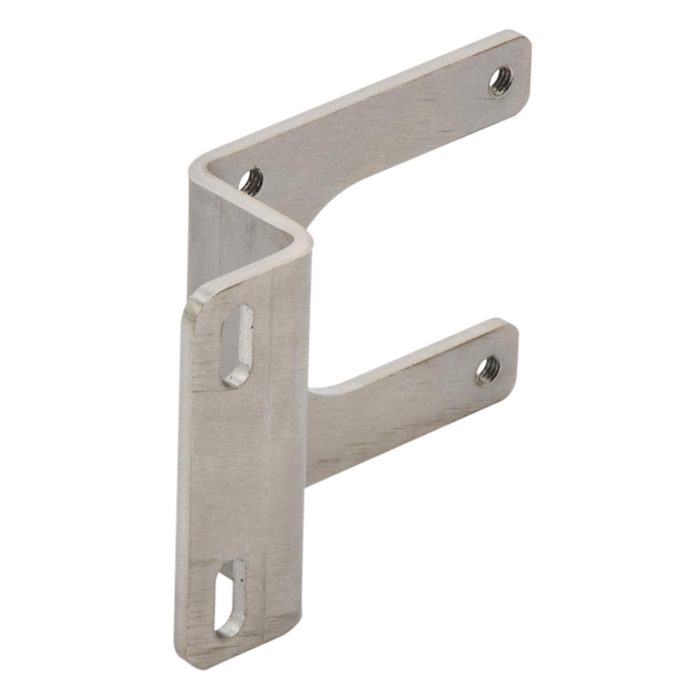

![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=ec5af6f)
|
