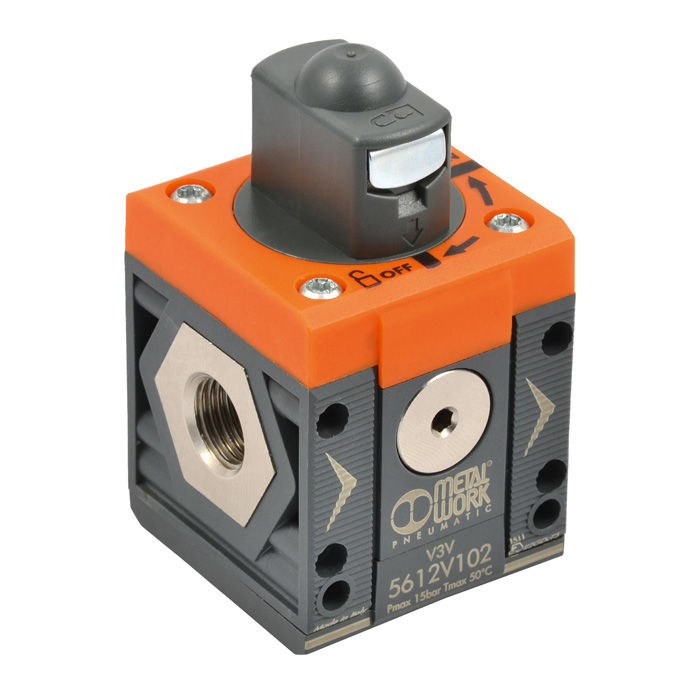

RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 3/8, perforation 3.5 mm
Type number: 5623V103
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Shut-off valve "SYNTESI", manual, BG 2, G 3/8, exhaust air G 1/4, perforation 3.5 mm, p1 = max. 13 bar, T = -10?50 °C, without silencer
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 2 |
| Input connection | G 3/8 |
| Output connection | |
| A | 60.5 mm |
| B | 109 mm |
| Exhaust air | G 1/4 |
| Flow 2 | 3600 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Fuse hole | 3x Ø 3.5 mm |
| Series | Syntesi |
| F | 42.7 mm |
| Flow 1 | 2800 Nl/min |
| Vent flow rate at 6.3 | 2000 Nl/min |
