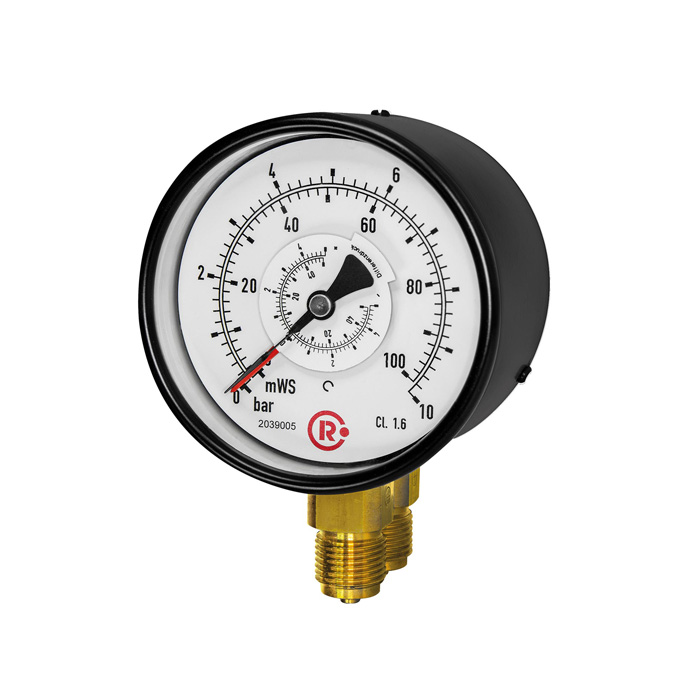

RIEGLER Differential pressure mano., 2x G 1/2 bottom, parallel, 0 - 1.0 bar, Ø 100
Model Number: 1201-R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Differential pressure mano. made of steel, black, G 1/2 - Type 1201-R
The RIEGLER differential pressure gauge, 2x G 1/2 bottom, parallel, 0 - 1.0 bar, Ø 100 indicates the current system pressure reliably and precisely. The housing is made of black steel. The ambient temperature is between -20 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. Reliable pressure indicator for safe system control.
Field of application
Typical areas of application: Pressure monitoring in compressed air, hydraulic and process systems.
| Housing | Steel, black |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Measuring element | Copper alloy |
| Pointer movement | Brass |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 1 |
| Diameter | 100 mm |
| Graduation value in the bar range | 0.02 bar |
| Connection | G 1/2 |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Ring | Steel, black |
| Connection position | radial bottom |
| Class name | PLUS |
| Viewing window | Instrument glass |
| Process connection material | Brass |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[199336] RIEGLER Differential pressure mano., 2x G 1/2 bottom, parallel, 0-10.0 bar, Ø 100](/web/image/product.template/276088/image_128/%5B199336%5D%20RIEGLER%20Differential%20pressure%20mano.%2C%202x%20G%201-2%20bottom%2C%20parallel%2C%200-10.0%20bar%2C%20%C3%98%20100?unique=756c0da)
|
Part Number: 1206-R |
123.27 € | |
![[199332] RIEGLER Differential pressure mano., 2x G 1/2 bottom, parallel, 0 - 1.6 bar, Ø 100](/web/image/product.template/276084/image_128/%5B199332%5D%20RIEGLER%20Differential%20pressure%20mano.%2C%202x%20G%201-2%20bottom%2C%20parallel%2C%200%20-%201.6%20bar%2C%20%C3%98%20100?unique=966b112)
|
Model Number: 1202-R |
123.27 € | |
![[199333] RIEGLER Differential pressure mano., 2x G 1/2 bottom, parallel, 0 - 2.5 bar, Ø 100](/web/image/product.template/276085/image_128/%5B199333%5D%20RIEGLER%20Differential%20pressure%20mano.%2C%202x%20G%201-2%20bottom%2C%20parallel%2C%200%20-%202.5%20bar%2C%20%C3%98%20100?unique=d65f616)
|
Part Number: 1203-R |
123.27 € | |
![[199334] RIEGLER Differential pressure mano., 2x G 1/2 bottom, parallel, 0 - 4.0 bar, Ø 100](/web/image/product.template/276086/image_128/%5B199334%5D%20RIEGLER%20Differential%20pressure%20mano.%2C%202x%20G%201-2%20bottom%2C%20parallel%2C%200%20-%204.0%20bar%2C%20%C3%98%20100?unique=3d72121)
|
Part Number: 1204-R |
123.27 € | |
![[199335] RIEGLER Differential pressure mano., 2x G 1/2 bottom, parallel, 0 - 6.0 bar, Ø 100](/web/image/product.template/276087/image_128/%5B199335%5D%20RIEGLER%20Differential%20pressure%20mano.%2C%202x%20G%201-2%20bottom%2C%20parallel%2C%200%20-%206.0%20bar%2C%20%C3%98%20100?unique=c2e1074)
|
Model Number: 1205-R |
123.27 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

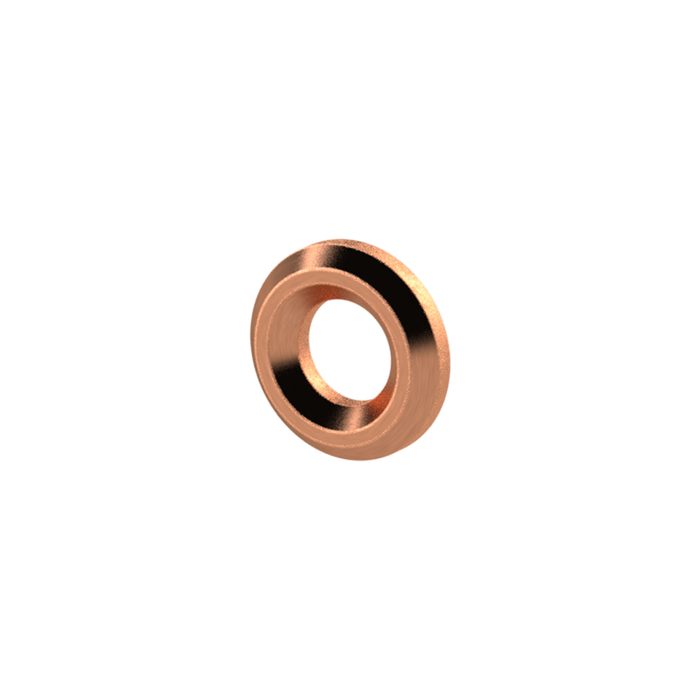

![[102620] RIEGLER Pressure gauge - profile seal, for thread G 1/2, Cu](/web/image/product.template/170592/image_128/%5B102620%5D%20RIEGLER%20Pressure%20gauge%20-%20profile%20seal%2C%20for%20thread%20G%201-2%2C%20Cu?unique=a0abd34)
|
Type number: 257.03 |
1.59 € | |

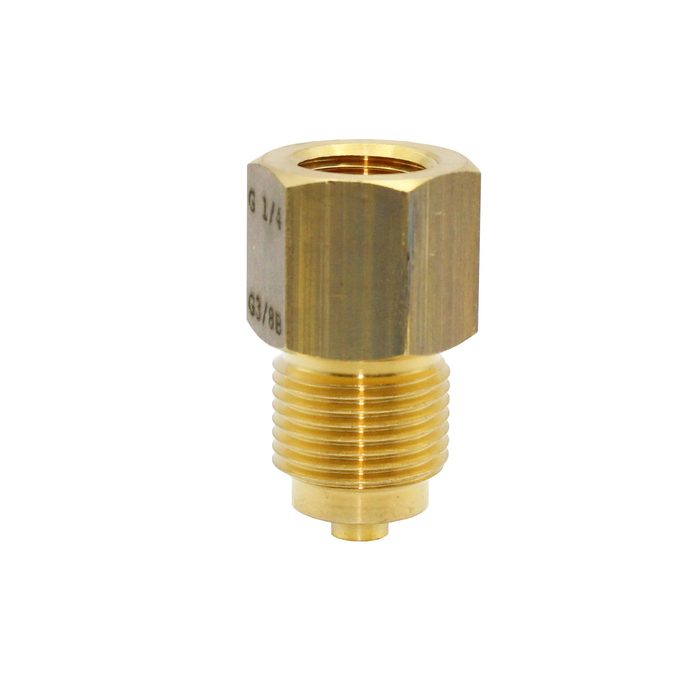

![[102630] RIEGLER Pressure gauge connection nipple brass, G 1/2 bushing, G 1/4 taps](/web/image/product.template/170602/image_128/%5B102630%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%20brass%2C%20G%201-2%20bushing%2C%20G%201-4%20taps?unique=7fd644c)
|
Type number: 257.26 |
9.45 € | |
![[102631] RIEGLER Pressure gauge connection nipple brass, G 1/2 bushing, G 3/8 taps](/web/image/product.template/170603/image_128/%5B102631%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%20brass%2C%20G%201-2%20bushing%2C%20G%203-8%20taps?unique=a9e3b3e)
|
Type number: 257.27 |
9.21 € | |
![[102632] RIEGLER Pressure gauge connection nipple brass G 1/2 bushing, M20x1.5 tap](/web/image/product.template/170604/image_128/%5B102632%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%20brass%20G%201-2%20bushing%2C%20M20x1.5%20tap?unique=25f55f4)
|
Type number: 257.30 |
9.58 € | |
![[102652] RIEGLER Block valve pressure gauge, Bushing - rotating bushing, G 1/2](/web/image/product.template/170624/image_128/%5B102652%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing%20-%20rotating%20bushing%2C%20G%201-2?unique=5c881e5)
|
Type number: 9012 |
21.48 € | |

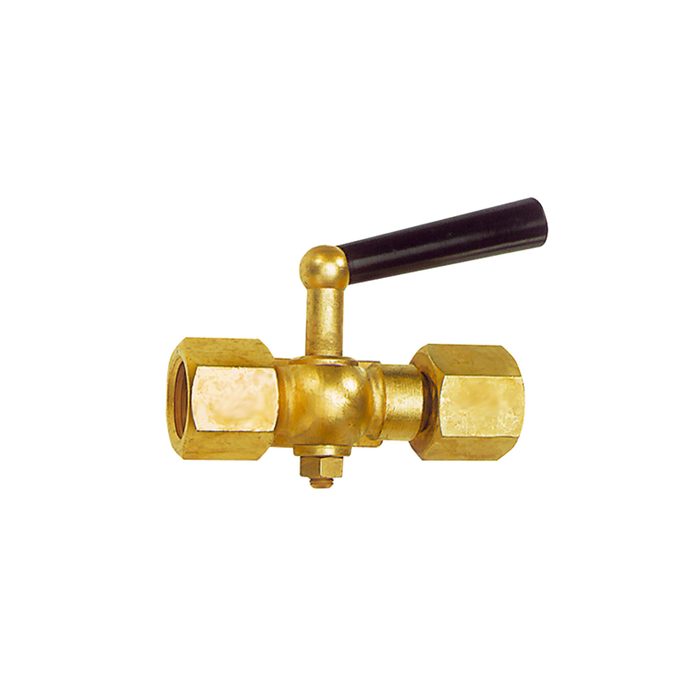

![[102653] RIEGLER Block valve pressure gauge, Bushing - rotating bushing, G 1/2](/web/image/product.template/170625/image_128/%5B102653%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing%20-%20rotating%20bushing%2C%20G%201-2?unique=41c4a53)
|
Type number: 9013 |
27.50 € | |

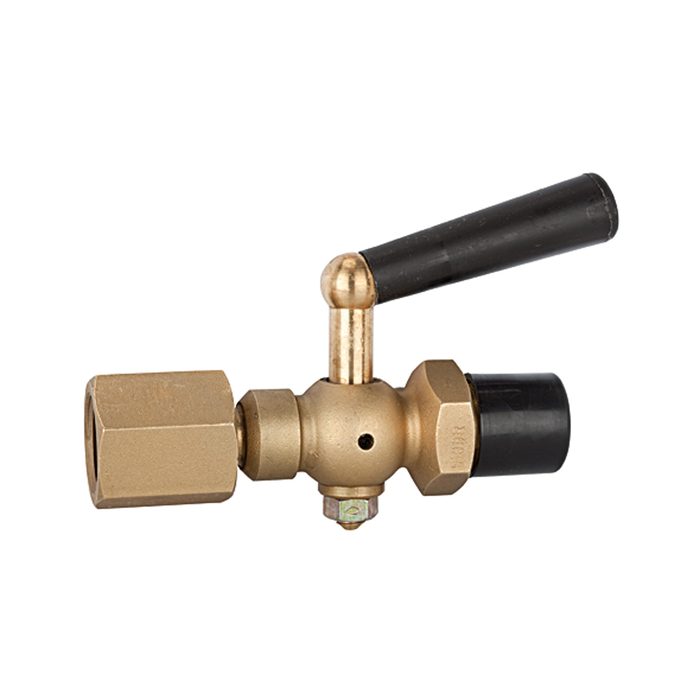

![[102654] RIEGLER Block valve pressure gauge, taps - rotating bushing, G 1/2](/web/image/product.template/170626/image_128/%5B102654%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20rotating%20bushing%2C%20G%201-2?unique=4683979)
|
Type number: 9014 |
21.13 € | |
![[102655] RIEGLER Block valve pressure gauge, taps - rotating bushing, G 1/2](/web/image/product.template/170627/image_128/%5B102655%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20rotating%20bushing%2C%20G%201-2?unique=dbe1142)
|
Type number: 9015 |
30.86 € | |
![[102657] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170629/image_128/%5B102657%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=d13b848)
|
Type number: 9021/M |
16.72 € | |
![[102659] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170631/image_128/%5B102659%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=0fbbb7b)
|
Type number: 9022/M |
24.95 € | |

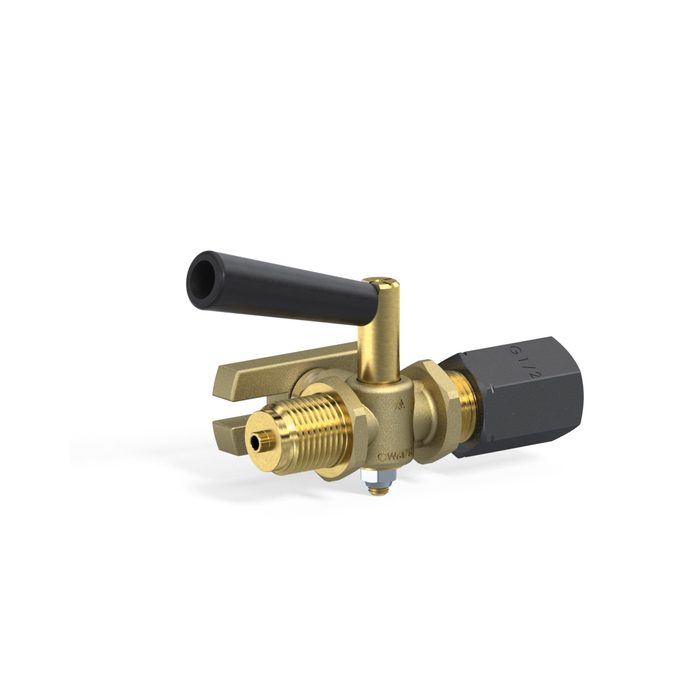

![[102661] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170633/image_128/%5B102661%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=88d0215)
|
Type number: 9023/M |
27.42 € | |

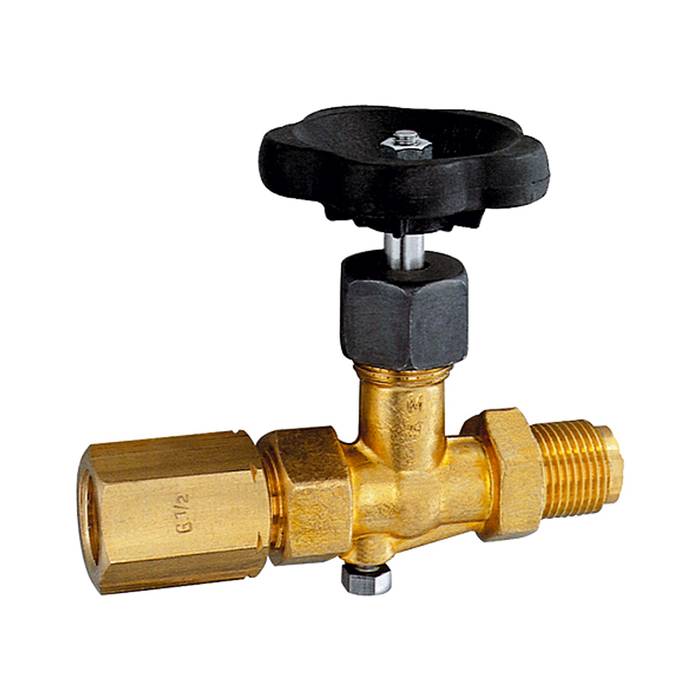

![[102662] RIEGLER Blocking valve pressure gauge, taps-tension sleeve, brass, G 1/2](/web/image/product.template/170634/image_128/%5B102662%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps-tension%20sleeve%2C%20brass%2C%20G%201-2?unique=ef11c93)
|
Type number: 9016/M |
28.46 € | |

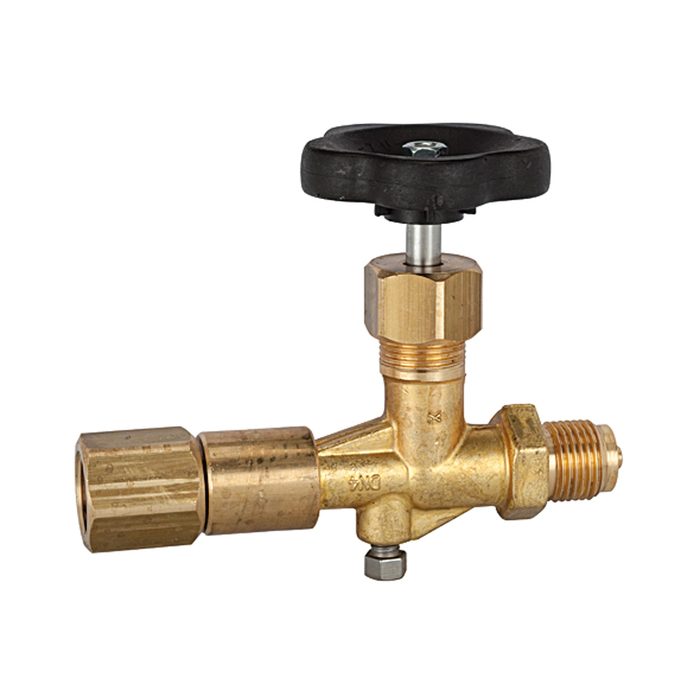

![[102665] RIEGLER Blocking valve pressure gauge, taps - rotating bushing, G 1/2](/web/image/product.template/170637/image_128/%5B102665%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps%20-%20rotating%20bushing%2C%20G%201-2?unique=3d9e093)
|
Type number: 9080/M |
45.16 € | |

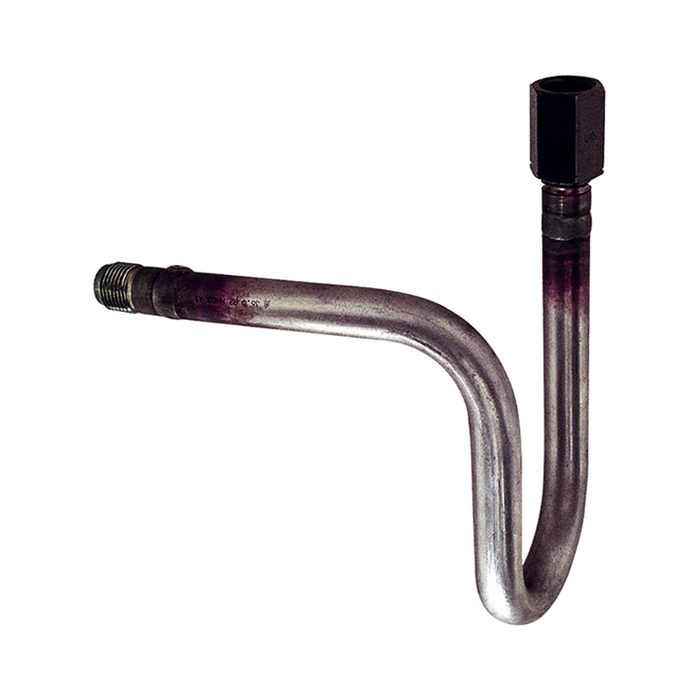

![[102674] RIEGLER Syphon in U shape, connection taps, G 1/2, steel 1.0039, 1.0345](/web/image/product.template/170646/image_128/%5B102674%5D%20RIEGLER%20Syphon%20in%20U%20shape%2C%20connection%20taps%2C%20G%201-2%2C%20steel%201.0039%2C%201.0345?unique=44c005b)
|
Type number: 9072 |
31.68 € | |

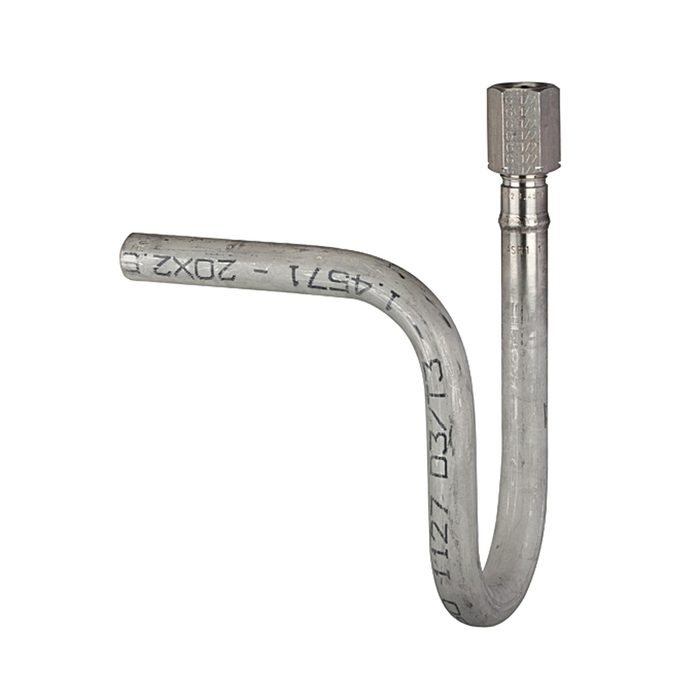

![[102676] RIEGLER Syphon in U shape, welded connection, G 1/2, steel 1.0039, 1.0345](/web/image/product.template/170648/image_128/%5B102676%5D%20RIEGLER%20Syphon%20in%20U%20shape%2C%20welded%20connection%2C%20G%201-2%2C%20steel%201.0039%2C%201.0345?unique=7e14141)
|
Type number: 9074 |
19.68 € | |

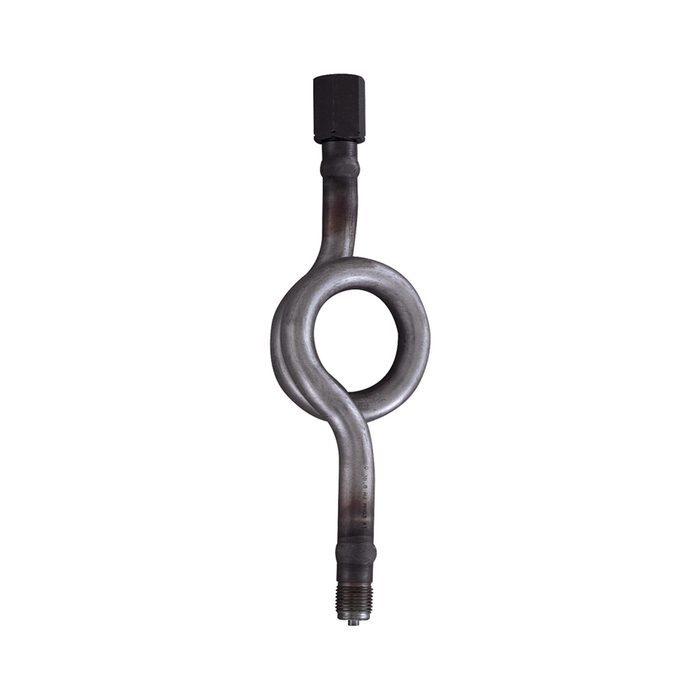

![[102678] RIEGLER Syphon in circular shape, connection tapss, G 1/2, steel](/web/image/product.template/170650/image_128/%5B102678%5D%20RIEGLER%20Syphon%20in%20circular%20shape%2C%20connection%20tapss%2C%20G%201-2%2C%20steel?unique=91cf013)
|
Type number: 9082 |
29.19 € | |

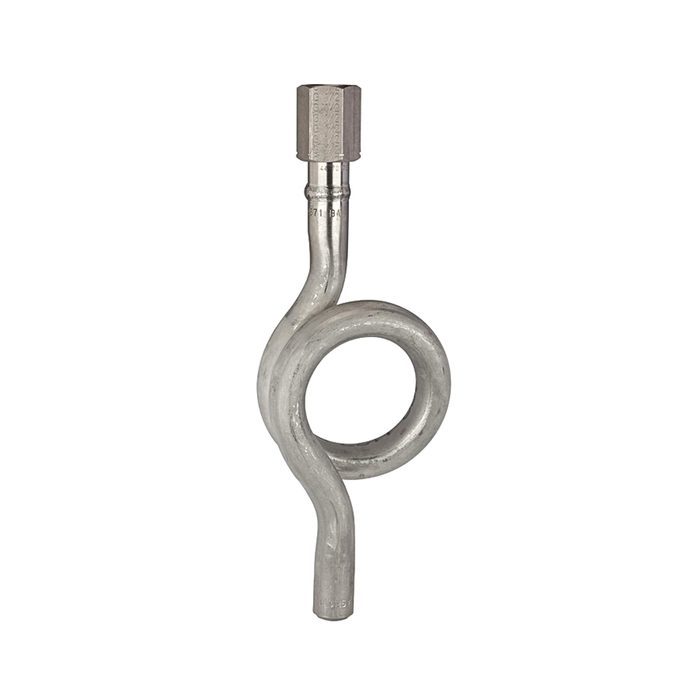

![[102680] RIEGLER Syphon in circular shape, welded connection, G 1/2, steel](/web/image/product.template/170652/image_128/%5B102680%5D%20RIEGLER%20Syphon%20in%20circular%20shape%2C%20welded%20connection%2C%20G%201-2%2C%20steel?unique=c020d90)
|
Type number: 9084 |
25.00 € | |

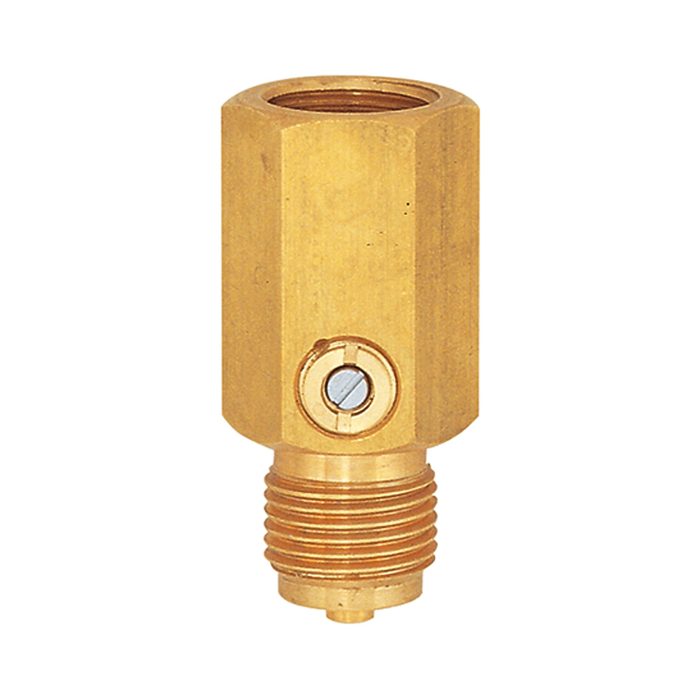

![[102682] RIEGLER Impact reducer for pressure gauge, G 1/2, PN 400 bar, brass](/web/image/product.template/170654/image_128/%5B102682%5D%20RIEGLER%20Impact%20reducer%20for%20pressure%20gauge%2C%20G%201-2%2C%20PN%20400%20bar%2C%20brass?unique=ab4ab97)
|
Type number: 9018/M |
16.58 € | |
![[111986] RIEGLER Pressure gauge fitting, G 1/2 i., Pipe exterior Ø 12 mm](/web/image/product.template/183881/image_128/%5B111986%5D%20RIEGLER%20Pressure%20gauge%20fitting%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%2012%20mm?unique=4b5079f)
|
Type number: N 69 |
6.33 € | |
![[111987] RIEGLER Pressure gauge fitting, G 1/2 i., Pipe exterior Ø 15 mm](/web/image/product.template/183882/image_128/%5B111987%5D%20RIEGLER%20Pressure%20gauge%20fitting%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%2015%20mm?unique=75be17f)
|
Type number: N 70 |
7.72 € | |

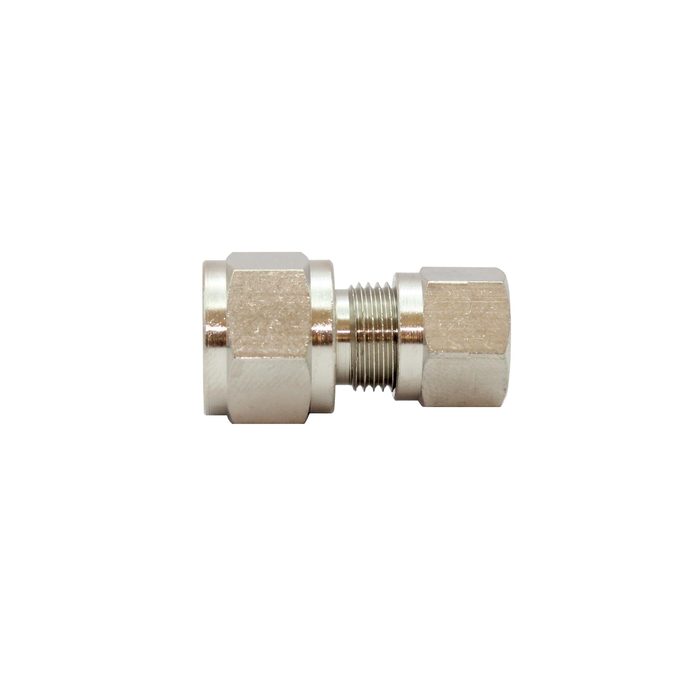

![[111988] RIEGLER Pressure gauge fitting, G 1/2 i., Pipe exterior Ø 18 mm](/web/image/product.template/183883/image_128/%5B111988%5D%20RIEGLER%20Pressure%20gauge%20fitting%2C%20G%201-2%20i.%2C%20Pipe%20exterior%20%C3%98%2018%20mm?unique=2eb33bc)
|
Type number: N 71 |
9.90 € | |

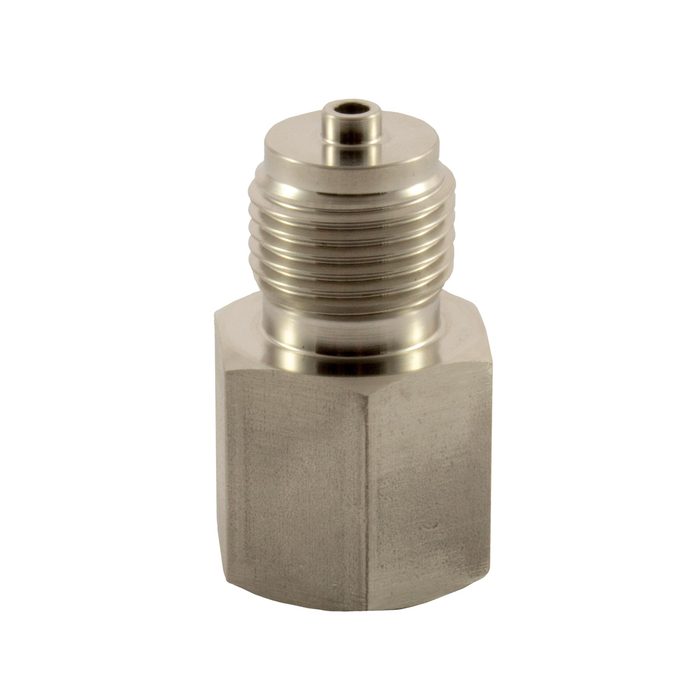

![[143860] RIEGLER Pressure gauge in-line filter, G 1/2 IT, G 1/2 ET, 200 µm](/web/image/product.template/210867/image_128/%5B143860%5D%20RIEGLER%20Pressure%20gauge%20in-line%20filter%2C%20G%201-2%20IT%2C%20G%201-2%20ET%2C%20200%20%C2%B5m?unique=e6cab15)
|
Type number: 9031 |
51.09 € | |

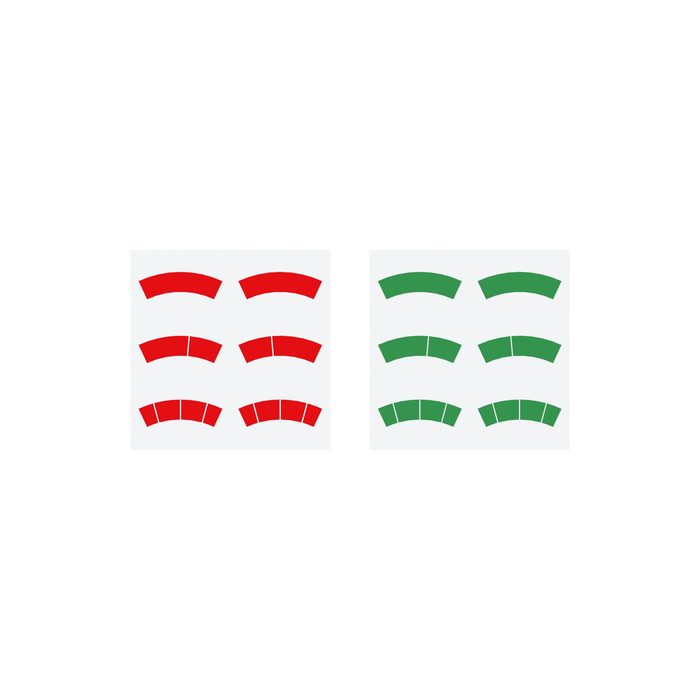

![[179686] RIEGLER Sticker set, red and green arcs, Ø-100, for pressure gauge](/web/image/product.template/276012/image_128/%5B179686%5D%20RIEGLER%20Sticker%20set%2C%20red%20and%20green%20arcs%2C%20%C3%98-100%2C%20for%20pressure%20gauge?unique=420dfb7)
|
