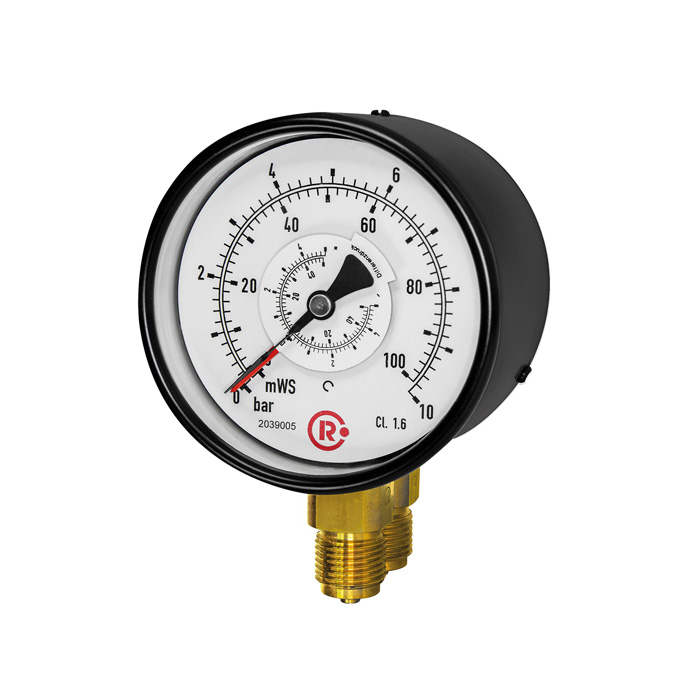

RIEGLER Differential pressure mano., 2x G 1/2 bottom, parallel, 0 - 6.0 bar, Ø 100
Typennummer: 1205-R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Differential pressure mano. made of steel, black, G 1/2 - Type 1205-R
The RIEGLER differential pressure gauge, 2x G 1/2 bottom, parallel, 0 - 6.0 bar, Ø 100 indicates the current system pressure reliably and precisely. The housing is made of black steel. The ambient temperature is between -20 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. Reliable pressure indicator for safe system control.
Field of application
Typical areas of application: Pressure monitoring in compressed air, hydraulic and process systems.
| Housing | Steel, black |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Measuring element | Copper alloy |
| Pointer movement | Brass |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 6 |
| Diameter | 100 mm |
| Graduation value in the bar range | 0.1 bar |
| Connection | G 1/2 |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Ring | Steel, black |
| Connection position | radial bottom |
| Class name | PLUS |
| Viewing window | Instrument glass |
| Process connection material | Brass |
