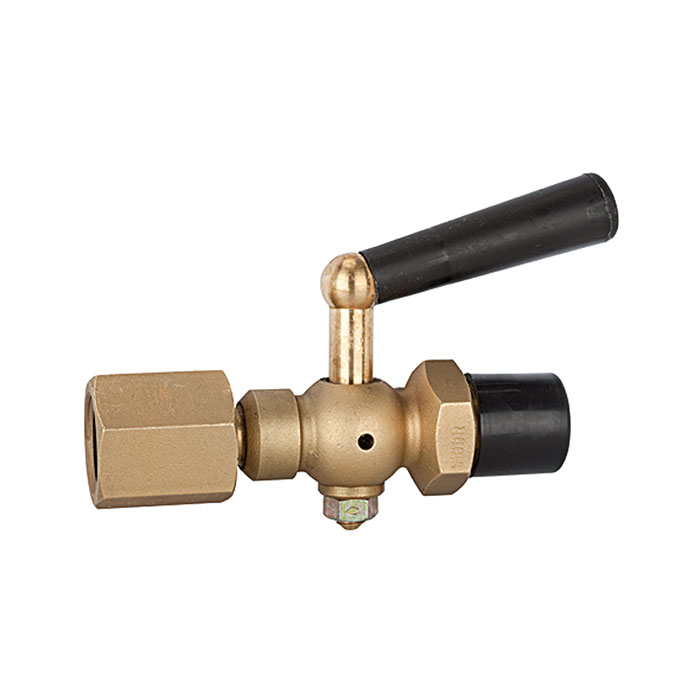

RIEGLER Block valve pressure gauge, taps - rotating bushing, G 1/2
Type number: 9014
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
102654EAN :
4047322122832Category :
Accessories for Pressure GaugesWeight :
0.37 kgRIEGLER Pressure gauge stopcock made of bare brass, for pressure measurement, G 1/2 - type 9014
The RIEGLER pressure gauge stopcock, spigot - rotatable socket, MS blank, G 1/2 supplements pressure gauges with protective and connection functions. The housing is made of bright brass. G 1/2 connection thread - suitable for common industry standards. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge installation.
| Temperature range max. | 50 °C |
| Housing | Brass bright |
| Area of application | for all pressure gauges with flat sealing ring to DIN 16258 |
| Hand lever | Plastic |
| Thread | G 1/2 |
| SW | 27 mm |
| PN | 25 bar |
| Execution | Spigot / rotatable socket |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
