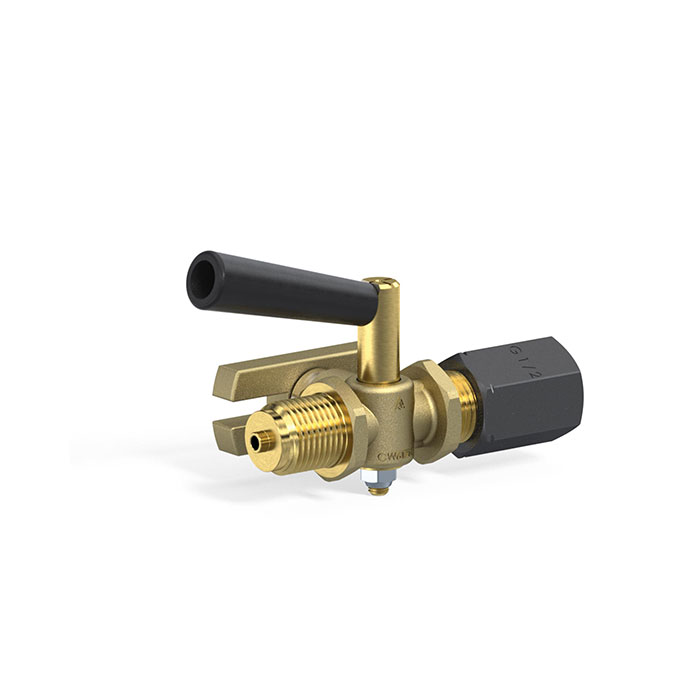

RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2
Type number: 9021/M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
102657EAN :
4047322122979Category :
Accessories for Pressure GaugesWeight :
0.36 kgPressure gauge stopcock, spigot - clamping sleeve, bare brass body, steel clamping sleeve, G 1/2, PN 25 bar, SW 27, max. 50 °C
| Temperature range max. | 50 °C |
| Housing | Brass bright |
| Area of application | for all pressure gauges with flat sealing ring to DIN 16258 |
| Hand lever | Plastic |
| Thread | G 1/2 |
| SW | 27 mm |
| PN | 25 bar |
| Regulation | DIN 16262-A |
| Execution | Spigot / clamping sleeve |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Clamping sleeve | Phosphated steel |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

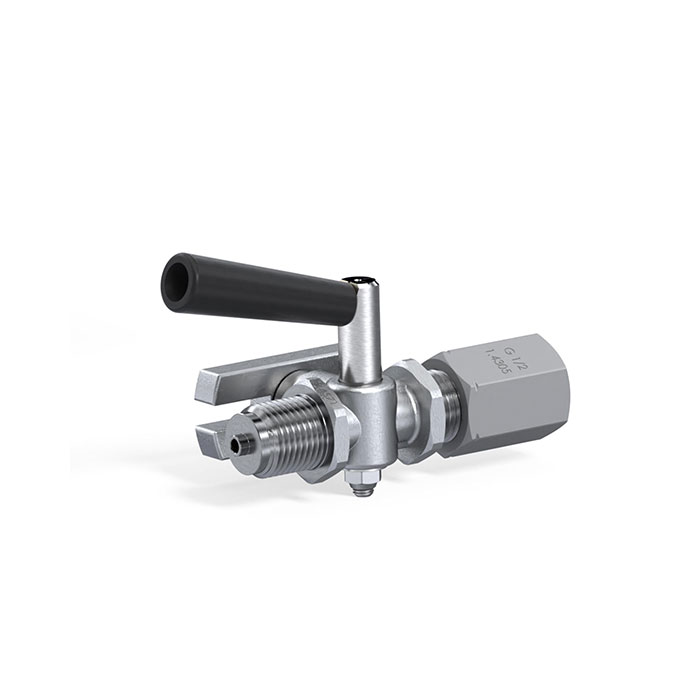

![[102658] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170630/image_128/%5B102658%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=68d6c67)
|
