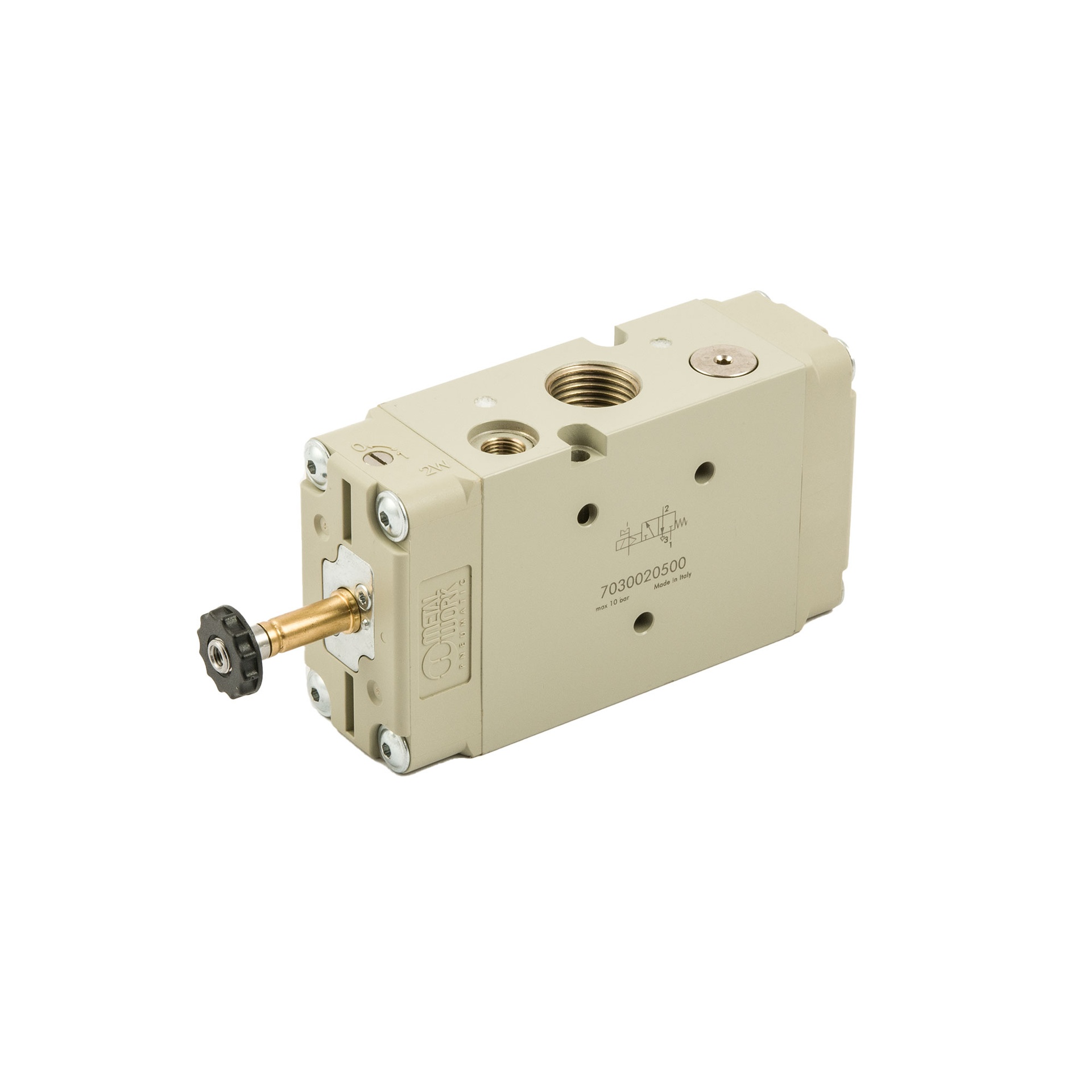

RIEGLER 3/2-way valve, electropneumatic, external control, monostable, G 1/2, NC
Type number: 7030020500
EAN: 4047322788410
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
147116EAN :
4047322788410Category :
Valves Electropneumatically OperatedWeight :
0.68 kgSpare parts set for gunmetal strainer, strainer insert and seal, mesh size 0.25 mm, for connection size 1
| Execution | electropneumatic |
| Control air supply | external |
| Tension | ohne Spannung |
| Symbol | 57 |
| Scope of delivery | without plug and coil |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Flow_2 | 4600 Nl/min |
| Flow_1 | 3200 Nl/min |
| Actuation | monostable |
| DN | 15 |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Control pressure min. | 2.5 bar |
| Function | 3/2 NC |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 |
| Pilot air connection | G 1/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
