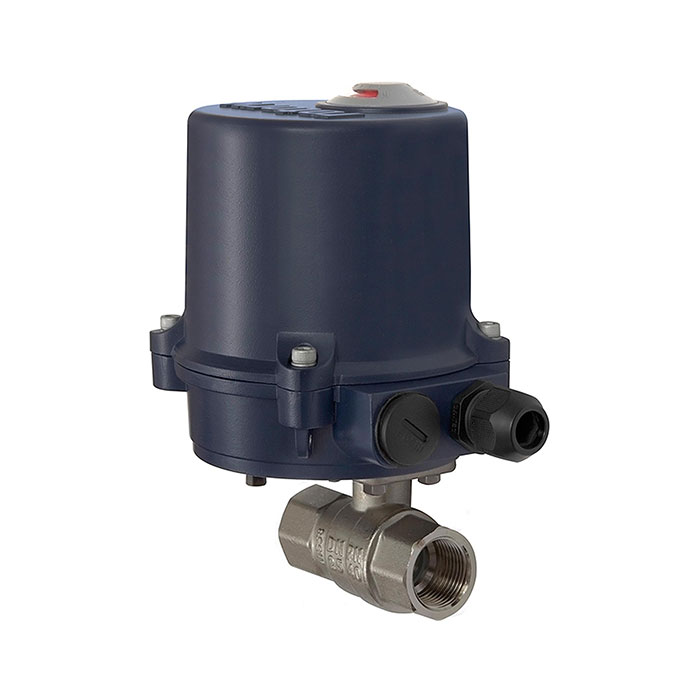

RIEGLER Brass ball valve, Electr. actuation drive, 230 V AC, 50 Hz, Rp 1
Type number: 350.1812R
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2-way brass ball valve, electric actuator, 230 V AC, 50 Hz, operating temperature -20 °C to 70 °C, Rp 1, DN 25, PN max. 40 bar
| Housing | Powder-coated aluminum |
| Duty cycle | 0.3 |
| Protection class | IP 68 |
| Ambient temperature min. | -30 °C |
| Ambient temperature max. | 70 °C |
| Material | Nickel-plated brass |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE, glass fiber reinforced |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Position indicator | manual override |
| Shift shaft | Hard chrome-plated brass |
| Shift shaft seal | FKM |
| Air humidity | 30 % to 95 % |
| Mounting flange | ISO 5211 |
| Thread | Rp 1 |
| DN | 25 |
| SW | 41 mm |
| PN | 40 bar |
| Operating time | 15 sec. |
| Tension | 230 VAC, 50 Hz |
| A | 153 mm |
| B | 170.5 mm |
| D | 25 mm |
| L | 90 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
