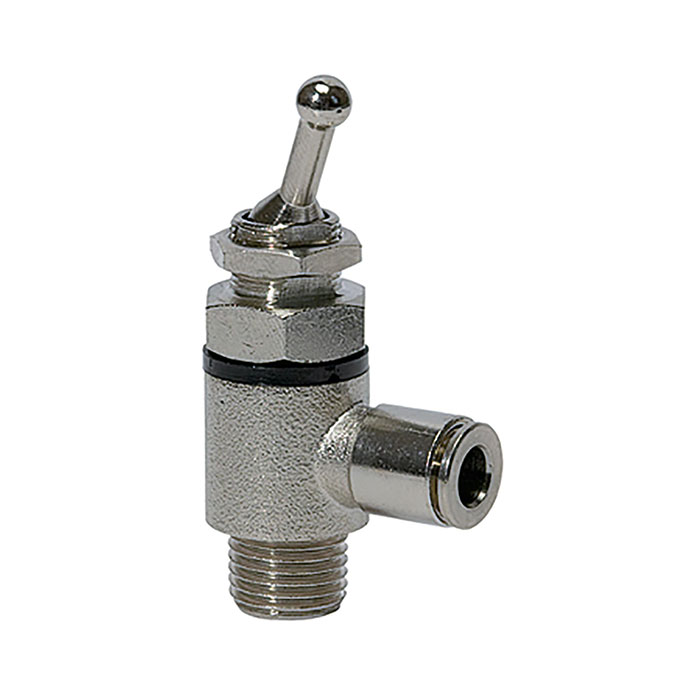

RIEGLER 2/2-way toggle lever valve, both sides, Push-in connector, G 1/8
Type number: 3614.018-4
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way toggle valve, on both sides, push-in connection hose 4, G 1/8, PN max. 8 bar, temp. -20 °C to 80 °C, nickel-plated brass.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Interior parts | Brass bright |
| Banjo bolt | Nickel-plated brass |
| Swivel arm | Nickel-plated brass |
| Captive seals | Polyamide glass fiber reinforced |
| Rocker arm | Nickel-plated brass |
| Thread | G 1/8 |
| Control panel thread | M12x0.75 (sheet thickness max. 4 mm) |
| SW | 14 mm |
| Function | 2/2-way |
| for hose | 4 mm |
| Connection type | Connection Plug connection |
| B | 55 mm |
| C | 19.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | Pressure connection on both sides |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, CW617N |
| Class name | PLUS |
