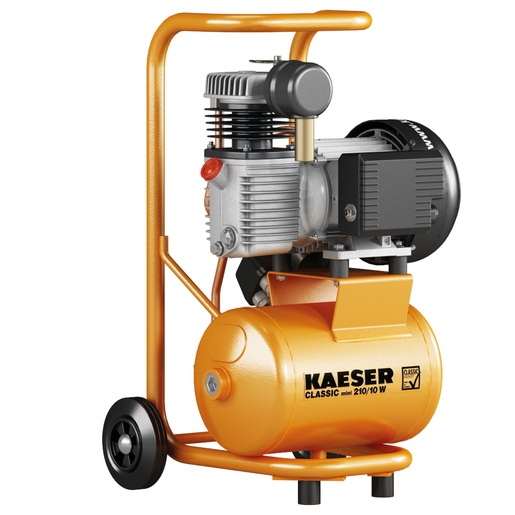

KAESER Reciprocating compressor model CLASSIC MINI 210/10 W
Suction capacity: 210 l/min | Maximum overpressure: 10 bar | Pressure tank: 10 liters | Electrical connection: 230V AC (alternating current)
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Mobile craftsman compressor from 24 kg - 109 l/min, 10 bar, 10 l tank
The KAESER CLASSIC MINI 210/10 W is the most compact representative of the CLASSIC series - weighing just 24 kg and with a 10-liter tank, it is ideal for mobile use. The single-cylinder compressor delivers an effective volume flow of 109 l/min at 10 bar and is particularly energy-efficient thanks to its 1:1 direct drive.
Application areas
Thanks to its compact design, the CLASSIC MINI 210/10 W is particularly suitable for tire inflation, blowing out, light sanding and spraying work. It is easy to transport and also fits into small workshops or vehicles.
KAESER quality made in Germany
Like all KAESER CLASSIC compressors, the CLASSIC MINI 210/10 W is manufactured at the Coburg plant. Corrosion-free stainless steel valves, cross-ground cylinders and high-performance fluid as standard ensure a long service life with low maintenance costs - the oil only needs to be changed after approx. 1,000 operating hours.
| Volume flow at 6 bar (l/min) | 109 |
| Suction volume flow (l/min) | 210 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 1,5 |
| Number of cylinders | 1 |
| Nominal synchronous speed (1/min) | 3000 |
| Volume of compressed air tank (litres) | 10 |
| Emission sound pressure level (dB(A)) | 73 |
| Sound power level (dB(A)) | 97 |
| Hose connection (mm) | 6 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Width (mm) | 380 |
| Depth (mm) | 420 |
| Height (mm) | 650 |
| Weight (kg) | 30 |
| Volume flow at 6 bar (l/min) | 109 |
| Model range - piston compressors | CLASSIC |
| Design | mobile |
| Hose reel attached | NO |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

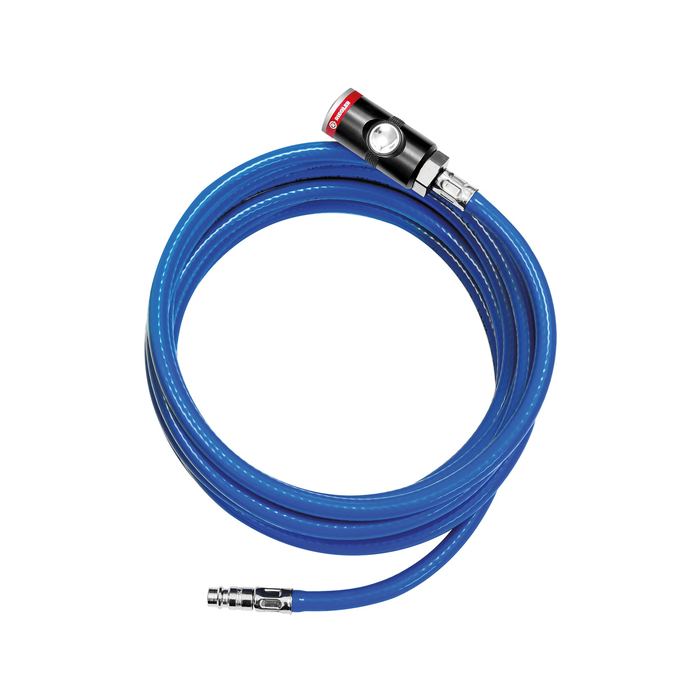

![[113854] RIEGLER Soft PVC workshop hose set, Safety coupling, Hose Ø 14.5x9, 5 m](/web/image/product.template/189956/image_128/%5B113854%5D%20RIEGLER%20Soft%20PVC%20workshop%20hose%20set%2C%20Safety%20coupling%2C%20Hose%20%C3%98%2014.5x9%2C%205%20m?unique=d44b5a9)
|
Type number: DSB9-5S |
41.97 € | |
![[113855] RIEGLER Soft PVC workshop hose set, Safety coupling, Hose Ø 14.5x9, 10 m](/web/image/product.template/189957/image_128/%5B113855%5D%20RIEGLER%20Soft%20PVC%20workshop%20hose%20set%2C%20Safety%20coupling%2C%20Hose%20%C3%98%2014.5x9%2C%2010%20m?unique=5b6040b)
|
Type number: DSB9-10S |
56.97 € | |

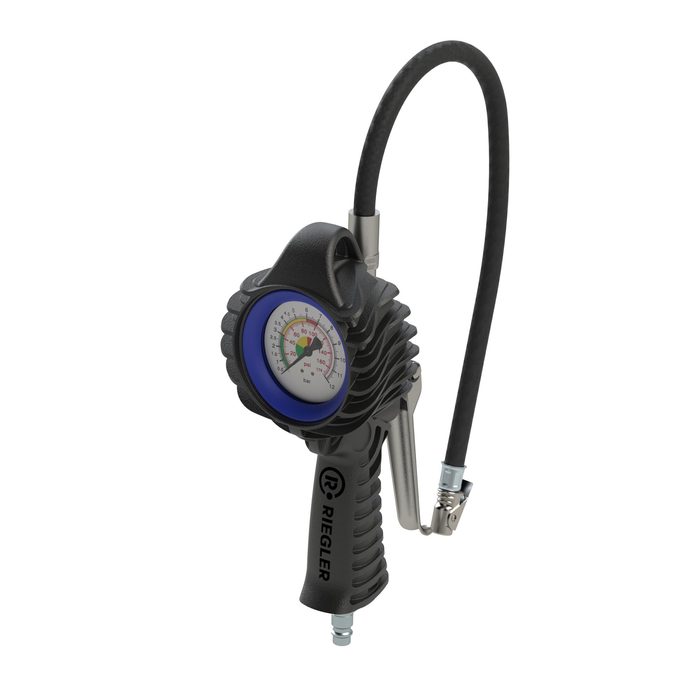

![[114543] RIEGLER Stand. manual tyre gauge, quick connector, Uncalibrated, 0-12 bar](/web/image/product.template/199158/image_128/%5B114543%5D%20RIEGLER%20Stand.%20manual%20tyre%20gauge%2C%20quick%20connector%2C%20Uncalibrated%2C%200-12%20bar?unique=650aa73)
|
Type number: 39.011 |
61.21 € | |
![[113856] RIEGLER Soft PVC workshop hose set, Safety coupling, Hose Ø 14.5x9, 20 m](/web/image/product.template/189959/image_128/%5B113856%5D%20RIEGLER%20Soft%20PVC%20workshop%20hose%20set%2C%20Safety%20coupling%2C%20Hose%20%C3%98%2014.5x9%2C%2020%20m?unique=fcbbb80)
|
Type number: DSB9-20S |
86.93 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

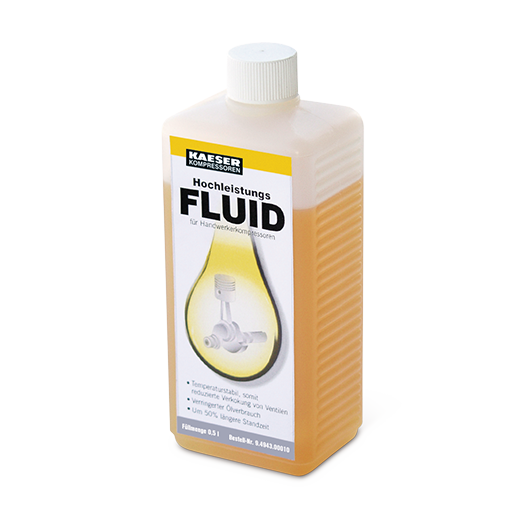

![[9.4943.00010] KAESER Compressor oil S-68 500 ml](/web/image/product.template/14242/image_128/%5B9.4943.00010%5D%20KAESER%20Compressor%20oil%20S-68%20500%20ml?unique=02cbfb9)
|
