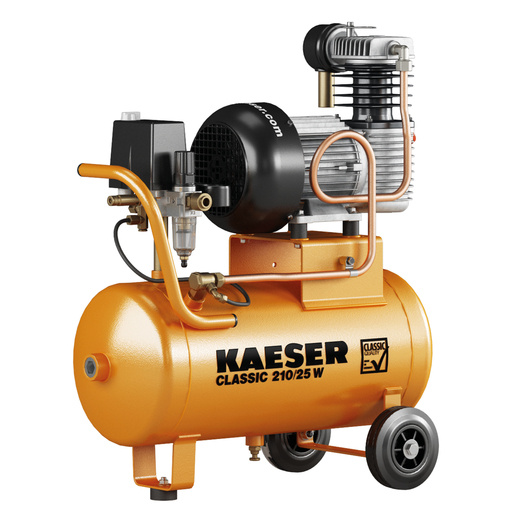

KAESER Reciprocating compressor model CLASSIC 210/25 W
Suction capacity: 210 l/min | Maximum overpressure: 10 bar | Pressure tank: 25 liters | Electrical connection: 230V AC (alternating current)
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Handicraft compressor with direct drive - 109 l/min, 10 bar, 25 l tank
The KAESER CLASSIC 210/25 W is a compact single-cylinder compressor with a 25-liter tank that reliably supplies compressed air in a small space. With an effective volume flow of 109 l/min at 10 bar and 1.5 kW motor, it is ideal for everyday use thanks to its 1:1 direct drive and 230 V AC connection.
Application areas
The CLASSIC 210/25 W is particularly suitable for tire inflation, blowing out, light sanding and spraying work. The 1:1 direct drive transfers the motor power to the compressor with low losses - this saves energy and reduces wear.
KAESER quality made in Germany
Like all KAESER CLASSIC compressors, the CLASSIC 210/25 W is manufactured at the Coburg plant. Corrosion-free stainless steel valves, cross-ground cylinders and high-performance fluid as standard ensure a long service life with low maintenance costs - the oil only needs to be changed after approx. 1,000 operating hours.
| Volume flow at 6 bar (l/min) | 109 |
| Suction volume flow (l/min) | 210 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 1,5 |
| Number of cylinders | 1 |
| Nominal synchronous speed (1/min) | 3000 |
| Volume of compressed air tank (litres) | 25 |
| Emission sound pressure level (dB(A)) | 74 |
| Sound power level (dB(A)) | 97 |
| Hose connection (mm) | 6 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Width (mm) | 610 |
| Depth (mm) | 310 |
| Height (mm) | 670 |
| Weight (kg) | 33 |
| Model range - piston compressors | CLASSIC |
| Hose reel attached | NO |
| Design | mobile |
| Volume flow at 6 bar (l/min) | 109 |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[113854] RIEGLER Soft PVC workshop hose set, Safety coupling, Hose Ø 14.5x9, 5 m](/web/image/product.template/189956/image_128/%5B113854%5D%20RIEGLER%20Soft%20PVC%20workshop%20hose%20set%2C%20Safety%20coupling%2C%20Hose%20%C3%98%2014.5x9%2C%205%20m?unique=d44b5a9)
|
Type number: DSB9-5S |
41.97 € | |
![[113855] RIEGLER Soft PVC workshop hose set, Safety coupling, Hose Ø 14.5x9, 10 m](/web/image/product.template/189957/image_128/%5B113855%5D%20RIEGLER%20Soft%20PVC%20workshop%20hose%20set%2C%20Safety%20coupling%2C%20Hose%20%C3%98%2014.5x9%2C%2010%20m?unique=5b6040b)
|
Type number: DSB9-10S |
56.97 € | |

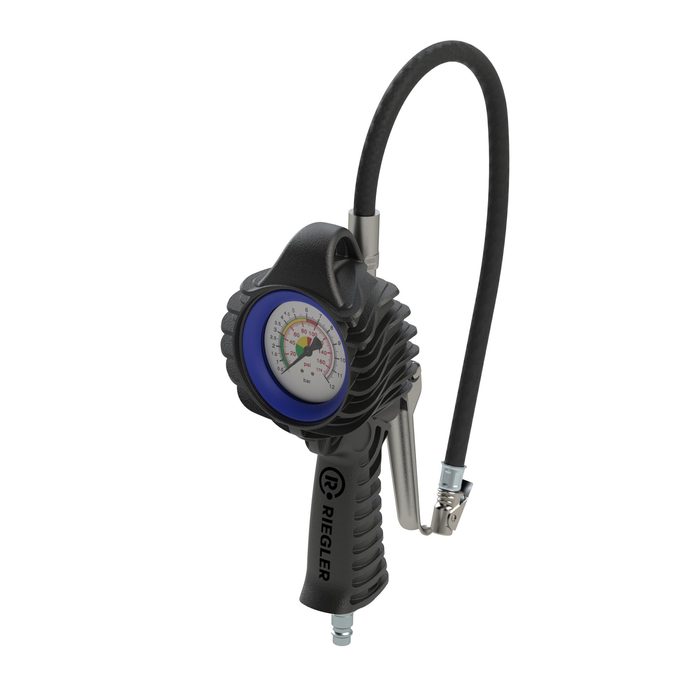

![[114543] RIEGLER Stand. manual tyre gauge, quick connector, Uncalibrated, 0-12 bar](/web/image/product.template/199158/image_128/%5B114543%5D%20RIEGLER%20Stand.%20manual%20tyre%20gauge%2C%20quick%20connector%2C%20Uncalibrated%2C%200-12%20bar?unique=650aa73)
|
Type number: 39.011 |
61.21 € | |

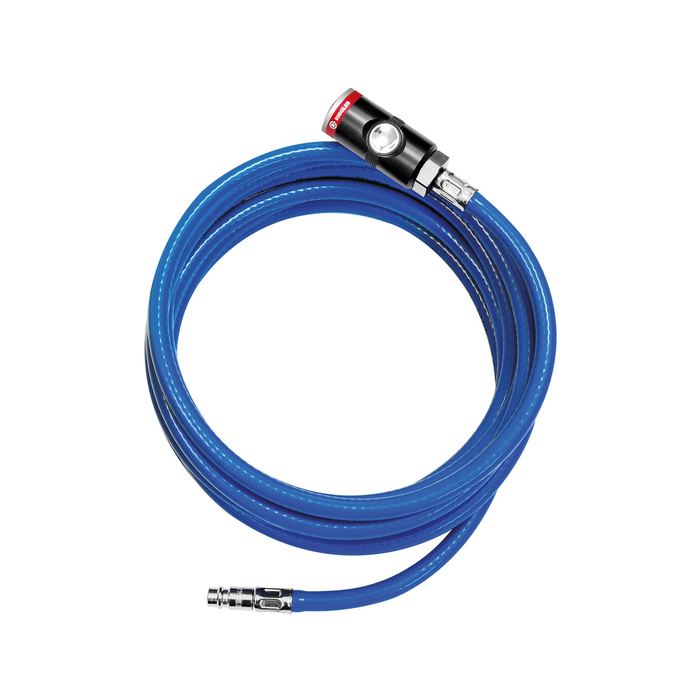

![[113856] RIEGLER Soft PVC workshop hose set, Safety coupling, Hose Ø 14.5x9, 20 m](/web/image/product.template/189959/image_128/%5B113856%5D%20RIEGLER%20Soft%20PVC%20workshop%20hose%20set%2C%20Safety%20coupling%2C%20Hose%20%C3%98%2014.5x9%2C%2020%20m?unique=fcbbb80)
|
