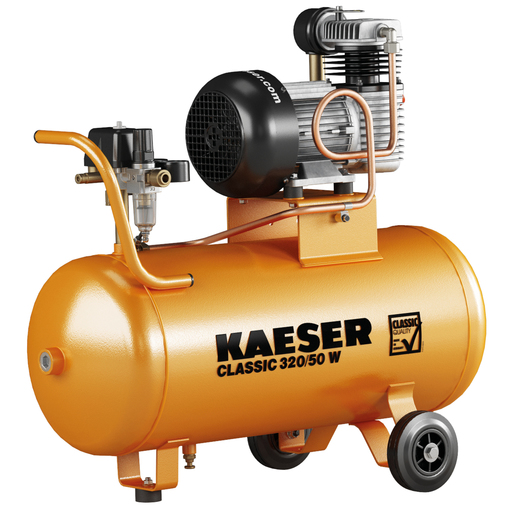

KAESER Reciprocating compressor model CLASSIC 320/50 W
Suction capacity: 320 l/min | Maximum overpressure: 10 bar | Pressure tank: 50 liters | Electrical connection: 230V AC (alternating current)
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Two-cylinder hand compressor - 167 l/min, 10 bar, 50 l tank, 230V
The KAESER CLASSIC 320/50 W combines a 50-liter boiler with a powerful 2.2 kW twin-cylinder motor and delivers 167 l/min effective volume flow at 10 bar. Thanks to the 1:1 direct drive and 230 V AC connection, it offers a balanced ratio of compressed air reserve, power and footprint.
Application areas
The CLASSIC 320/50 W is particularly suitable for paint spraying, sanding, sandblasting, impact wrenches and blowing work. The 1:1 direct drive transfers the motor power to the compressor with low losses - this saves energy and reduces wear.
KAESER quality made in Germany
Like all KAESER CLASSIC compressors, the CLASSIC 320/50 W is manufactured at the Coburg plant. Corrosion-free stainless steel valves, cross-ground cylinders and high-performance fluid as standard ensure a long service life with low maintenance costs - the oil only needs to be changed after approx. 1,000 operating hours.
| Volume flow at 6 bar (l/min) | 167 |
| Suction volume flow (l/min) | 320 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 1,5 |
| Number of cylinders | 1 |
| Nominal synchronous speed (1/min) | 3000 |
| Volume of compressed air tank (litres) | 50 |
| Emission sound pressure level (dB(A)) | 76 |
| Sound power level (dB(A)) | 97 |
| Hose connection (mm) | 6 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Width (mm) | 820 |
| Depth (mm) | 400 |
| Height (mm) | 780 |
| Weight (kg) | 39 |
| Volume flow at 6 bar (l/min) | 167 |
| Model range - piston compressors | CLASSIC |
| Design | mobile |
| Hose reel attached | NO |
