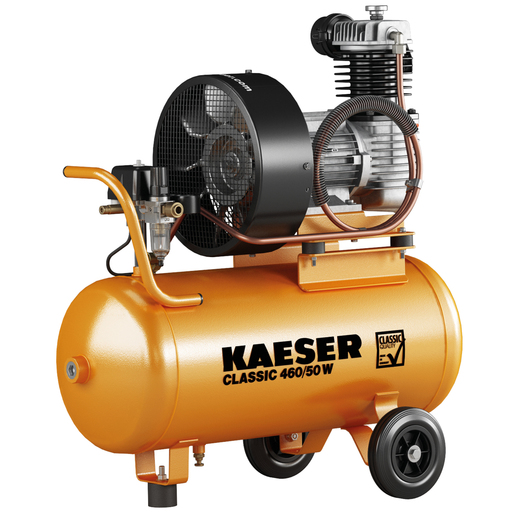

KAESER Reciprocating compressor model CLASSIC 460/50 W
Suction capacity: 460 l/min | Maximum overpressure: 10 bar | Pressure tank: 50 liters | Electrical connection: 230V AC (alternating current)
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Powerful hand compressor - 234 l/min, 10 bar, 50 l tank, 230V
The KAESER CLASSIC 460/50 W combines a 50-liter boiler with a powerful 3.0 kW two-cylinder motor and delivers 234 l/min effective volume flow at 10 bar. Thanks to the 1:1 direct drive and 230 V AC connection, it offers a balanced ratio of compressed air reserve, power and footprint.
Application areas
The CLASSIC 460/50 W is particularly suitable for sandblasting, impact wrenches, paint spraying, sanding and continuous operation at the workbench. The 1:1 direct drive transfers the motor power to the compressor with low loss - this saves energy and reduces wear.
KAESER quality made in Germany
Like all KAESER CLASSIC compressors, the CLASSIC 460/50 W is manufactured at the Coburg plant. Corrosion-free stainless steel valves, cross-ground cylinders and high-performance fluid as standard ensure a long service life with low maintenance costs - the oil only needs to be changed after approx. 1,000 operating hours.
| Volume flow at 6 bar (l/min) | 234 |
| Suction volume flow (l/min) | 460 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 2,2 |
| Number of cylinders | 1 |
| Nominal synchronous speed (1/min) | 1500 |
| Volume of compressed air tank (litres) | 50 |
| Emission sound pressure level (dB(A)) | 75 |
| Sound power level (dB(A)) | 97 |
| Hose connection (mm) | 9 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Width (mm) | 820 |
| Depth (mm) | 410 |
| Height (mm) | 860 |
| Weight (kg) | 64 |
| Model range - piston compressors | CLASSIC |
| Design | mobile |
| Hose reel attached | NO |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

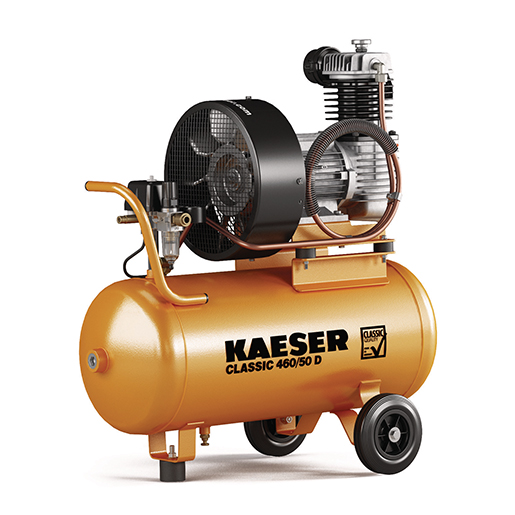

![[1.1709.2] KAESER Reciprocating compressor model CLASSIC 460/50 D](/web/image/product.template/103177/image_128/%5B1.1709.2%5D%20KAESER%20Reciprocating%20compressor%20model%20CLASSIC%20460-50%20D?unique=02cbfb9)
|
Suction capacity: 460 l/min | Maximum overpressure: 10 bar | Pressure tank: 50 liters | Electrical connection: 400V AC (three-phase current) |
1,449.06 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

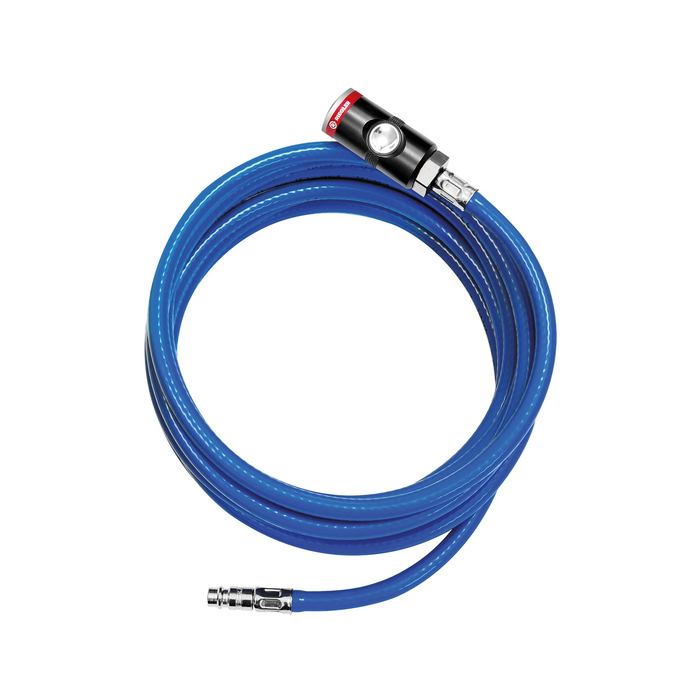

![[113854] RIEGLER Soft PVC workshop hose set, Safety coupling, Hose Ø 14.5x9, 5 m](/web/image/product.template/189956/image_128/%5B113854%5D%20RIEGLER%20Soft%20PVC%20workshop%20hose%20set%2C%20Safety%20coupling%2C%20Hose%20%C3%98%2014.5x9%2C%205%20m?unique=d44b5a9)
|
