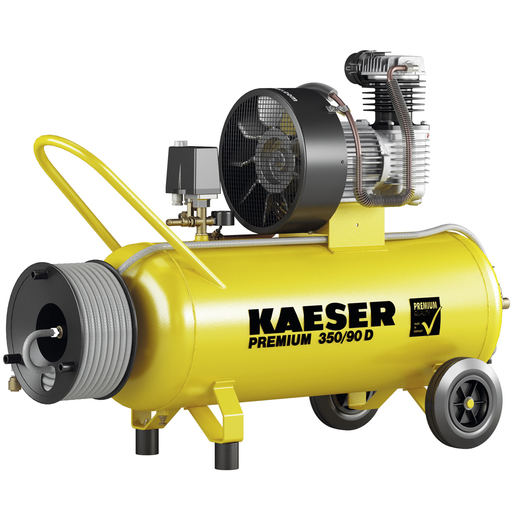

KAESER Reciprocating compressor model PREMIUM 350/90 D with Hose reel incl. 15 m hose
Suction capacity: 350 l/min | Maximum overpressure: 10 bar | Pressure tank: 90 liters | Electrical connection: 400V AC (three-phase current)
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Piston compressor for the workshop - 350 l/min, 10 bar, 90 l tank
The KAESER PREMIUM 350/90 D is a high-performance piston compressor that has been specially designed for versatile workshop use - equipped with a practical hose reel incl. 15 m compressed air hose for immediate use. This KAESER Quality product offers 350 l/min intake capacity at 10 bar maximum overpressure. The 90-liter compressed air tank ensures a constant supply of compressed air for all workshop work.
Technical highlights
- Suction capacity: 350 l/min - sufficient compressed air for demanding workshop work.
- Maximum overpressure: 10 bar - reliable operating pressure for all standard pneumatic tools.
- Compressed air tank: 90 liter tank - for a constant supply of compressed air in the workshop.
- Electrical connection: 400V three-phase current - for professional use with high-voltage connection.
Quality & structure
- Made in Germany: Manufactured at the KAESER production center in Coburg - highest quality and reliability.
- Stainless steel valves: Corrosion-free valves with heat-dissipating stroke limiter for tight closing and long service life.
- High-performance fluid: Filled with temperature-resistant special fluid as standard - almost no oil carbon, up to 1,000 h change interval.
- CE-certified: With LwA and CE mark in accordance with legal requirements. Type-tested.
- Rugged construction: First-class materials and careful workmanship for years of economical operation.
Typical areas of application
- Car workshop: Air compressor for changing tires, impact wrenches and bodywork repairs.
- Sanding: Workshop compressor for operating eccentric, orbital and angle grinders.
- Painting: Powerful compressed air supply for professional painting and coating.
- Drilling: Reliable compressed air for use with pneumatic drills in wood, stone and metal.
| Volume flow at 6 bar (l/min) | 211 |
| Suction volume flow (l/min) | 350 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 2,2 |
| Number of cylinders | 1 |
| Nominal synchronous speed (1/min) | 1500 |
| Volume of compressed air tank (litres) | 90 |
| Emission sound pressure level (dB(A)) | 71 |
| Sound power level (dB(A)) | 97 |
| Hose connection (mm) | 9 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Width (mm) | 1180 |
| Depth (mm) | 460 |
| Height (mm) | 900 |
| Weight (kg) | 80 |
| Model range - piston compressors | Premium |
| Hose reel attached | YES |
| Design | mobile |
