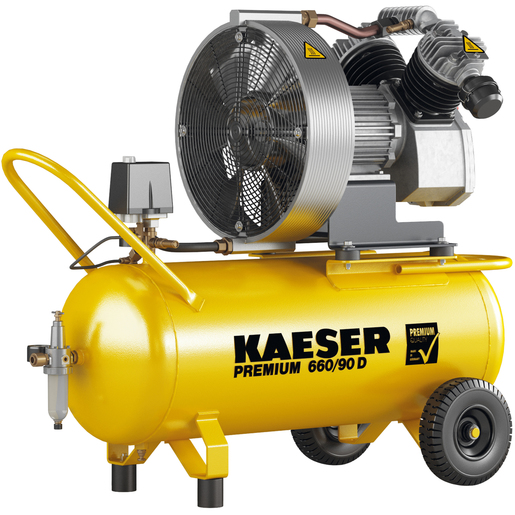

KAESER Reciprocating compressor model PREMIUM 660/90 D
Suction capacity: 660 l/min | Maximum overpressure: 10 bar | Pressure tank: 90 liters | Electrical connection: 400V AC (three-phase current)
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
KAESER workshop compressors
PREMIUM - for the workshop
With KAESER's "PREMIUM" tradesman compressors, you are optimally equipped for your workshop. The PREMIUM series is characterized by its versatility, especially in the automotive sector. Its strengths are evident in tasks such as quick tire changes, repairing minor bodywork damage and supplying compressed air to small workshops. Discover over 80 years of experience in precision engineering with KAESER. KAESER compressors guarantee precise manufacturing and are carefully assembled. Equipped with corrosion-free stainless steel valves and high-performance fluid, they offer top performance and quality "Made in Germany".
High-performance fluid
Corrosion-free stainless steel valves
KAESER quality compressor block
Made in Germany
Type-tested with LwA and CE mark
Quality products
Powerful impact wrench
Whether in the professional workshop or in the private sector: with the reliable PREMIUM KAESER range of tradesman compressors, you are always on the safe side - whether for the problem-free loosening of wheel nuts or for a wide range of applications. Experience the quality of KAESER compressed air - Made in Germany.
Optimum painting result
KAESER's PREMIUM series of craftsman compressors enable flawless painting results, both in the workshop and at home. Large surfaces can be painted and reshaped with ease. KAESER always provides the required compressed air. Optimum compressed air preparation also ensures brilliant results.
Versatile sanding
From random orbital and straight grinders to orbital, cut-off and angle grinders - the range of air grinders is wide, just like the variety of your air requirements. KAESER's premium craftsman compressors have the right answer to every question to ensure you are optimally equipped for every type of sanding.
| Volume flow at 6 bar (l/min) | 440 |
| Suction volume flow (l/min) | 660 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 3 |
| Number of cylinders | 2 |
| Nominal synchronous speed (1/min) | 1500 |
| Volume of compressed air tank (litres) | 90 |
| Emission sound pressure level (dB(A)) | 76 |
| Sound power level (dB(A)) | 97 |
| Hose connection (mm) | 9 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Width (mm) | 1240 |
| Depth (mm) | 570 |
| Height (mm) | 970 |
| Weight (kg) | 118 |
| Model range - piston compressors | Premium |
| Hose reel attached | NO |
| Design | mobile |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[1.1821.10010] KAESER Reciprocating compressor model PREMIUM 660/90 D with Hose reel incl. 15 m hose](/web/image/product.template/103210/image_128/%5B1.1821.10010%5D%20KAESER%20Reciprocating%20compressor%20model%20PREMIUM%20660-90%20D%20with%20Hose%20reel%20incl.%2015%20m%20hose?unique=4bdfd11)
|

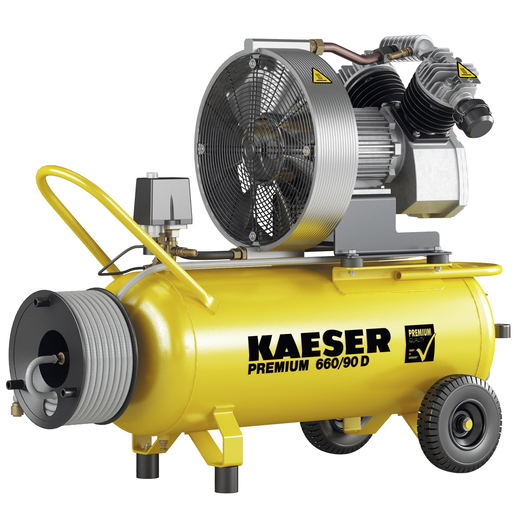

[1.1821.10010] KAESER Reciprocating compressor model PREMIUM 660/90 D with Hose reel incl. 15 m hose
