incl. 5 mtr. hose (free of charge)

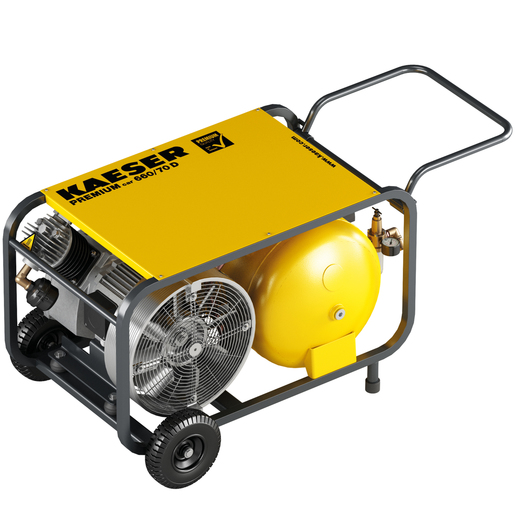

KAESER Reciprocating compressor model PREMIUM CAR 660/70 D
Suction capacity: 660 l/min | Maximum overpressure: 10 bar | Pressure tank: 70 liters | Electrical connection: 400V AC (three-phase current)
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
1.1830.1Category :
PREMIUM CAR (construction site)Weight :
123.00 kgDelivery area :
GermanyPowerful mobile piston compressor - 660 l/min for demanding construction site work
The KAESER PREMIUM CAR 660/70 is a portable piston compressor that has been specially designed for tough construction site use. This KAESER Quality product impresses with its robust frame construction: The construction site compressor is tilt-proof and can be easily transported around the construction site thanks to its sturdy wheels.
Technical highlights
- Suction capacity: 660 l/min - sufficient compressed air for demanding construction site work.
- Maximum overpressure: 10 bar - reliable operating pressure for all standard pneumatic tools.
- Compressed air tank: 70 liter tank - for a constant supply of compressed air on the construction site.
- Electrical connection: 400V three-phase current - for professional use with high-voltage connection.
Quality & structure
- Made in Germany: Manufactured at the KAESER production center in Coburg - highest quality and reliability.
- Stainless steel valves: Corrosion-free valves with heat-dissipating stroke limiter for tight closing and long service life.
- High-performance fluid: Filled with temperature-resistant special fluid as standard - almost no oil carbon, up to 1,000 h change interval.
- CE-certified: With LwA and CE mark in accordance with legal requirements. Type-tested.
- Tilt-proof frame: Robust steel frame construction with wheels for safe transportation on the construction site.
Typical areas of application
- Construction site: Mobile air compressor for simultaneous operation of several compressed air tools.
- Sandblasting: Powerful compressed air supply for effective sandblasting on the construction site.
- Carpentry work: High compressed air output for the professional use of pneumatic nailers for roofing.
- Clean off plaster: Powerful mobile compressor for use with chipping hammers for plaster removal.
| Volume flow at 6 bar (l/min) | 440 |
| Suction volume flow (l/min) | 660 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 3 |
| Number of cylinders | 2 |
| Nominal synchronous speed (1/min) | 1500 |
| Volume of compressed air tank (litres) | 70 |
| Emission sound pressure level (dB(A)) | 74 |
| Sound power level (dB(A)) | 97 |
| Hose connection (mm) | 9 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Width (mm) | 690 |
| Depth (mm) | 1040 |
| Height (mm) | 630 |
| Weight (kg) | 123 |
| Model range - piston compressors | Premium Car |
| Hose reel attached | NO |
| Design | mobile |
