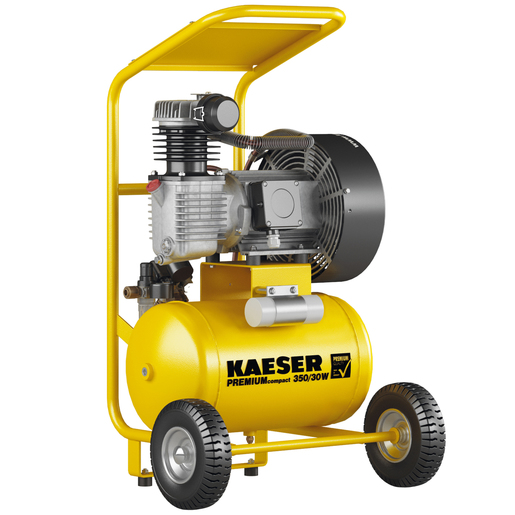

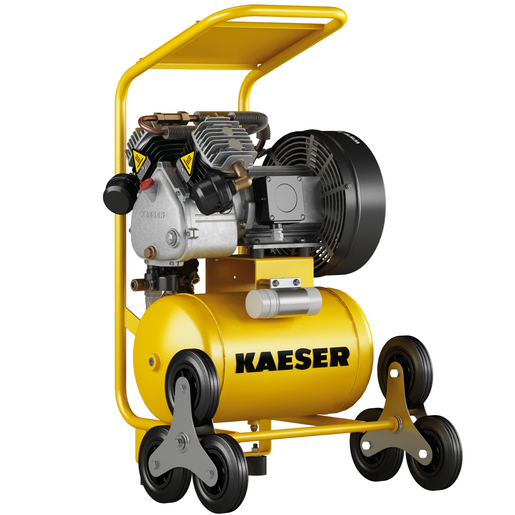

KAESER Reciprocating compressor model PREMIUM COMPACT S 350/30 W
Suction capacity: 350 l/min | Maximum overpressure: 10 bar | Pressure tank: 30 liters | Electrical connection: 230V AC (alternating current)
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
1.1845.00010Category :
PREMIUM COMPACT (interior fittings)Weight :
67.00 kgDelivery area :
GermanyCompact piston compressor with hose reel - 350 l/min for interior work
The KAESER PREMIUM COMPACT S 350/30 combines a compact design with an integrated hose reel. This portable piston compressor is the perfect solution for the building trade and interior work. With 350 l/min intake capacity, 10 bar maximum overpressure and 30 liter compressed air tank, this KAESER Quality product with all the advantages of the COMPACT series plus the convenience of a built-in hose reel.
Technical highlights
- Suction capacity: 350 l/min - suitable for typical applications in the building trade.
- Maximum overpressure: 10 bar - reliable operating pressure for pneumatic tools.
- Compressed air tank: 30 liter tank for consistent compressed air supply.
- Hose reel: Integrated reel for convenient working without hose chaos.
- Electrical connection: 230V alternating current - flexible use at the household socket.
Quality & structure
- Made in Germany: Manufactured at the KAESER production center in Coburg - highest quality and reliability.
- Stainless steel valves: Corrosion-free valves with heat-dissipating stroke limiter for tight closing and long service life.
- High-performance fluid: Filled with temperature-resistant special fluid as standard - almost no oil carbon, up to 1,000 h change interval.
- CE-certified: With LwA and CE mark in accordance with legal requirements. Type-tested.
- Compact design: Portable by one person, ideal for narrow construction sites and stairwells.
Typical areas of application
- Internal fittings: Compact air compressor for stapling, nailing and light compressed air work.
- Sanitary installations: Reliable compressed air supply for grouting work.
- Auxiliary building trades: Mobile piston compressor for painters, tilers and drywallers.
| Volume flow at 6 bar (l/min) | 211 |
| Suction volume flow (l/min) | 350 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 2,2 |
| Number of cylinders | 1 |
| Nominal synchronous speed (1/min) | 1500 |
| Volume of compressed air tank (litres) | 30 |
| Emission sound pressure level (dB(A)) | 73 |
| Sound power level (dB(A)) | 97 |
| Hose connection (mm) | 9 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Width (mm) | 630 |
| Depth (mm) | 550 |
| Height (mm) | 1010 |
| Weight (kg) | 67 |
| Model range - piston compressors | Premium Compact |
| Hose reel attached | NO |
| Design | mobile |
