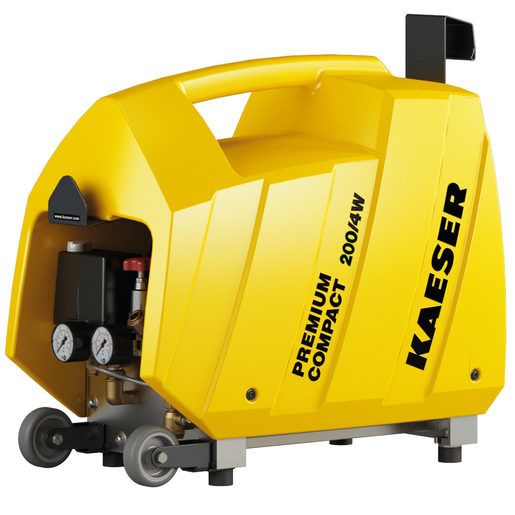

KAESER Reciprocating compressor model PREMIUM COMPACT 200/4 W
Suction capacity: 160 l/min | Maximum overpressure: 10 bar | Pressure tank: 4 liters | Electrical connection: 230V AC (alternating current)
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
1.1850.0Category :
PREMIUM COMPACT (interior fittings)Weight :
33.00 kgDelivery area :
GermanyCompact piston compressor without boiler - 200 l/min, portable for interior work
The KAESER PREMIUM COMPACT 200/4 is a compact, portable piston compressor that has been specially developed for the building trade and interior work. This KAESER Quality product offers 200 l/min suction capacity at 10 bar maximum overpressure. Thanks to its particularly compact design without a large compressed air tank, it is extremely lightweight and can be easily transported by a single person - even when climbing stairs.
Technical highlights
- Suction capacity: 200 l/min - suitable for typical applications in the ancillary building trade and interior work.
- Maximum overpressure: 10 bar - reliable operating pressure for pneumatic tools.
- Compressed air tank: 4 liters - compact design without a large tank for maximum mobility.
- Electrical connection: 230V alternating current - for flexible use at any household socket.
Quality & structure
- Made in Germany: Manufactured at the KAESER production center in Coburg - highest quality and reliability.
- Stainless steel valves: Corrosion-free valves with heat-dissipating stroke limiter for tight closing and long service life.
- High-performance fluid: Filled with temperature-resistant special fluid as standard - almost no oil carbon, up to 1,000 h change interval.
- CE-certified: With LwA and CE mark in accordance with legal requirements. Type-tested.
- Portable design: Ergonomic carrying handle and compact design for use on confined construction sites.
Typical areas of application
- Interior installation: Portable air compressor for tacking, nailing and light compressed air work inside buildings.
- Stripping floor coverings: Compact compressor for use with compressed air lance for stripping floor coverings.
- Sanitary area: Reliable compressed air supply for grouting work and installations.
- Auxiliary building trades: Mobile piston compressor for painters, tilers and drywallers.
| Volume flow at 6 bar (l/min) | 113 |
| Suction volume flow (l/min) | 200 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 1,1 |
| Number of cylinders | 1 |
| Nominal synchronous speed (1/min) | 3000 |
| Volume of compressed air tank (litres) | 4 |
| Emission sound pressure level (dB(A)) | 72 |
| Sound power level (dB(A)) | 97 |
| Hose connection (mm) | 6 (9) |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Width (mm) | 610 |
| Depth (mm) | 350 |
| Height (mm) | 570 |
| Weight (kg) | 33 |
| Model range - piston compressors | Premium Compact |
| Hose reel attached | NO |
| Design | mobile |
