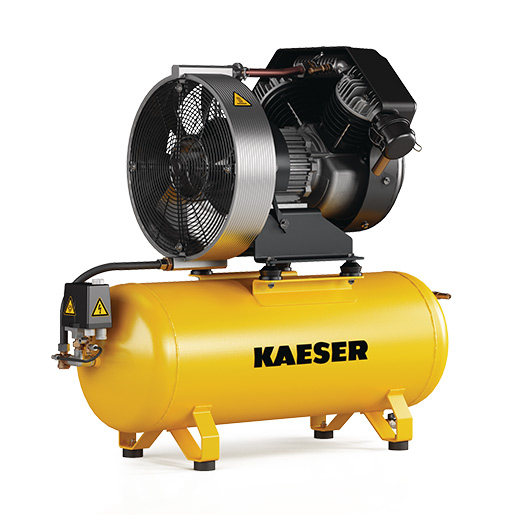

KAESER Industrial Reciprocating compressor model KCTD 230-100 (horizontal) oil-free Performance for operation with 2-selector circuit
Volume flow at 6 bar: 2 x 152 l/min | Maximum overpressure: 7 bar | Pressure tank: 90 liters | Electrical connection: 400 V / 3 Ph / 50 Hz
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
1.5073.00020Category :
KAESER oil-free industrial compressorsWeight :
120.00 kgDelivery area :
GermanyThe oil-free KAESER KCT industrial compressor is specially designed for demanding industrial applications. It runs dry, offers high compressed air quality and is characterized by its quiet operation, low maintenance requirements and an energy-efficient direct drive.
| Volume flow at 6 bar (l/min) | 2x 152 |
| Max. Overpressure (bar) | 7 |
| Rated power drive motor (kW) | 2x 2,2 |
| Number of cylinders | 2x 2 |
| Nominal synchronous speed (1/min) | 1500 |
| Volume of compressed air tank (litres) | 90 |
| Emission sound pressure level (dB(A)) | 71 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Width (mm) | 1110 |
| Depth (mm) | 550 |
| Height (mm) | 820 |
| Weight (kg) | 120 |
| Design | stationary |
