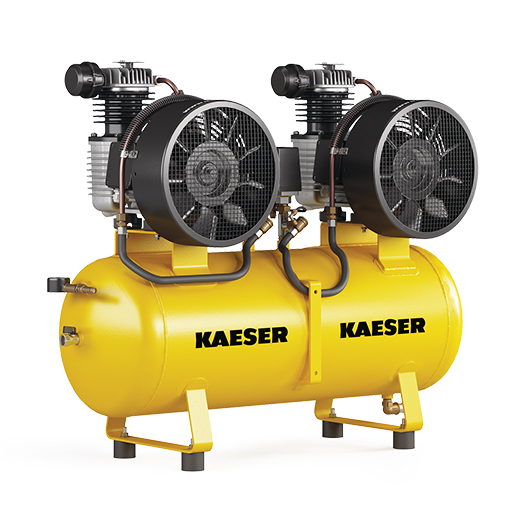

KAESER Industrial reciprocating compressor twin system model KCD 350-100
Volume flow at 6 bar: 2 x 195 l/min | Maximum overpressure: 10 bar | Pressure tank: 90 liters | Electrical connection: 400 V / 3 Ph / 50 Hz
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
1.5253.2Category :
KAESER oil-lubricated industrial compressorsWeight :
105.00 kgDelivery area :
Germany- two compressor units on one compressed air tank, compact and space-saving
- Ideal as an auxiliary compressor and with an existing compressed air tank
- Reliable compressed air supply at all times, even when servicing a compressor unit
- Oil-lubricated and dry-running versions
- Ready for immediate operation
| Volume flow at 6 bar (l/min) | 2x 195 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 2x 1,7 |
| Number of cylinders | 2x 1 |
| Nominal synchronous speed (1/min) | 1500 |
| Volume of compressed air tank (litres) | 90 |
| Emission sound pressure level (dB(A)) | 75 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Width (mm) | 1090 |
| Depth (mm) | 490 |
| Height (mm) | 830 |
| Weight (kg) | 105 |
| Volume flow at 8 bar (l/min) | 2x 170 |
| Design | stationary |
