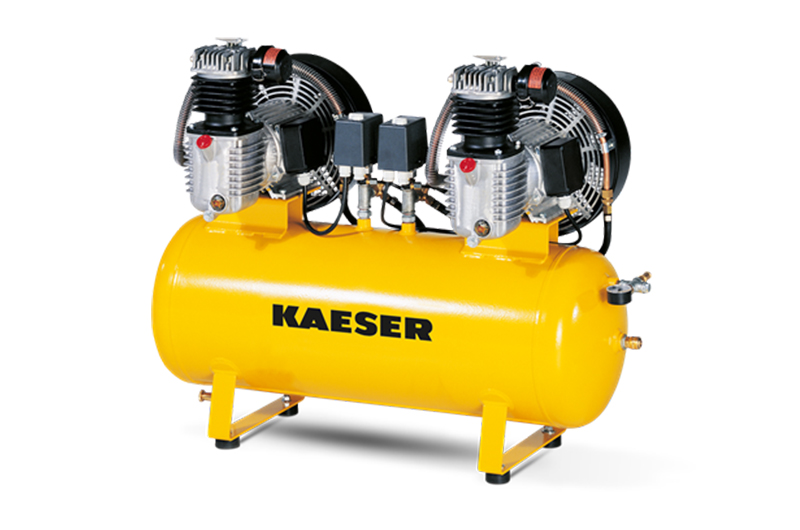

KAESER Industrial reciprocating compressor twin system model KCD 840-350
Volume flow at 6 bar: 2 x 590 l/min | Maximum overpressure: 10 bar | Pressure tank: 350 liters | Electrical connection: 400 V / 3 Ph / 50 Hz
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
1.5256.1Category :
KAESER oil-lubricated industrial compressorsWeight :
230.00 kgDelivery area :
Germany- two compressor units on one compressed air tank, compact and space-saving
- Ideal as an auxiliary compressor and with an existing compressed air tank
- Reliable compressed air supply at all times, even when servicing a compressor unit
- Oil-lubricated and dry-running versions
- Ready for immediate operation
| Volume flow at 6 bar (l/min) | 2x 590 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 2x 4 |
| Number of cylinders | 2x 2 |
| Nominal synchronous speed (1/min) | 1.500 |
| Volume of compressed air tank (litres) | 350 |
| Emission sound pressure level (dB(A)) | 83 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Width (mm) | 1.820 |
| Depth (mm) | 660 |
| Height (mm) | 1.220 |
| Weight (kg) | 230 |
| Volume flow at 8 bar (l/min) | 2x 530 |
| Design | stationary |
