KAESER Reciprocating compressor oil-free model i.Comp 3 mobile
Suction capacity: 265 l/min | Maximum overpressure: 11 bar | Electrical connection: 200-240V / 1 / 50/60Hz
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Oil-free compressor without boiler - 160 l/min, 11 bar, speed-controlled, 230V

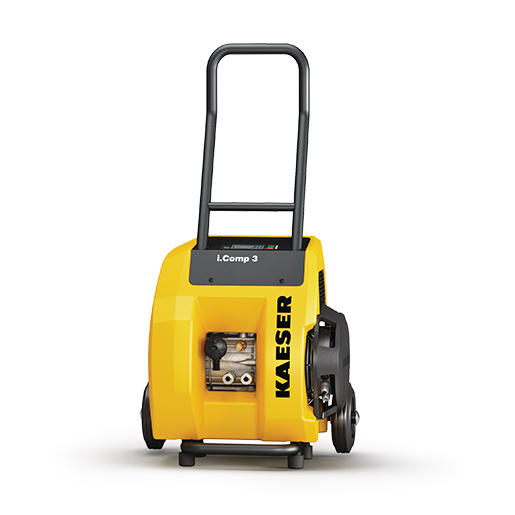

The KAESER i.Comp 3 mobile is an oil-free piston compressor with speed control - without compressed air tank, but with constant pressure up to 11 bar. It delivers an effective volume flow of 160 l/min at 6 bar and works with a 1.5 kW motor on a standard 230 V AC connection - it even starts without any problems with a cable length of 150 m. The mobile version with robust, all-terrain wheels is ideal for use on the construction site and can also be transported horizontally to save space.
Application areas

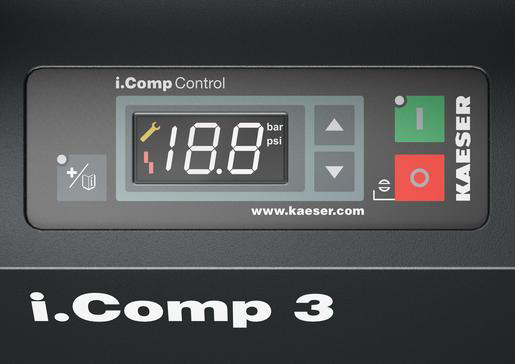

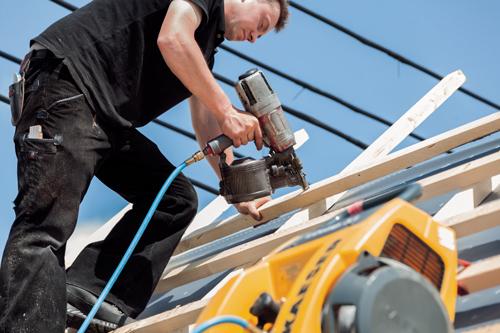

Thanks to oil-free compression, the i.Comp 3 delivers clean, oil-free compressed air - ideal for stapling, nailing, painting, grouting, blowing in cables and stripping floor coverings. The speed control automatically adjusts the output to the demand so that the compressor always delivers exactly the right amount of compressed air. It is also ideally suited for OEM applications such as industrial filter cleaning, laser cutting or remote water supply.

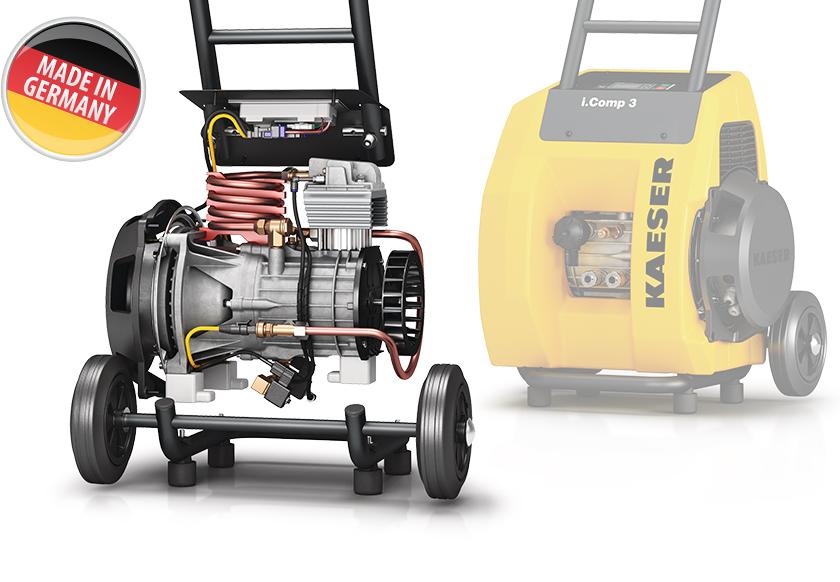

KAESER quality made in Germany
The KAESER i.Comp 3 is manufactured at the Coburg plant. As an oil-free compressor, there is no need for oil level checks, refilling and oil changes - reducing service costs to a minimum. In addition, no oil gets into the compressed air and any condensate is automatically evaporated. Precise manufacturing and KAESER industrial quality Made in Germany guarantee a long service life.
| Volume flow at 6 bar (l/min) | 160 |
| Volume flow at 11 bar (l/min) | 120 |
| Suction volume flow (l/min) | 265 |
| Max. Overpressure (bar) | 11 |
| Output power drive motor (kW) | 1,5 |
| Rated power drive motor (kW) | 1,5 |
| Number of cylinders | 1 |
| Speed range (1/min) | 1500 -3200 |
| Emission sound pressure level (dB(A)) | 79 |
| Sound power level (dB(A)) | 97 |
| Hose connection (mm) | 6-13 |
| Number of compressed air connections | 3 |
| Width (mm) | 570 |
| Depth (mm) | 440 |
| Height (mm) | 1050 |
| Electrical supply | 200-240V / 1 / 50/60Hz |
| Model range - piston compressors | i.Comp |
| Design | mobile |
