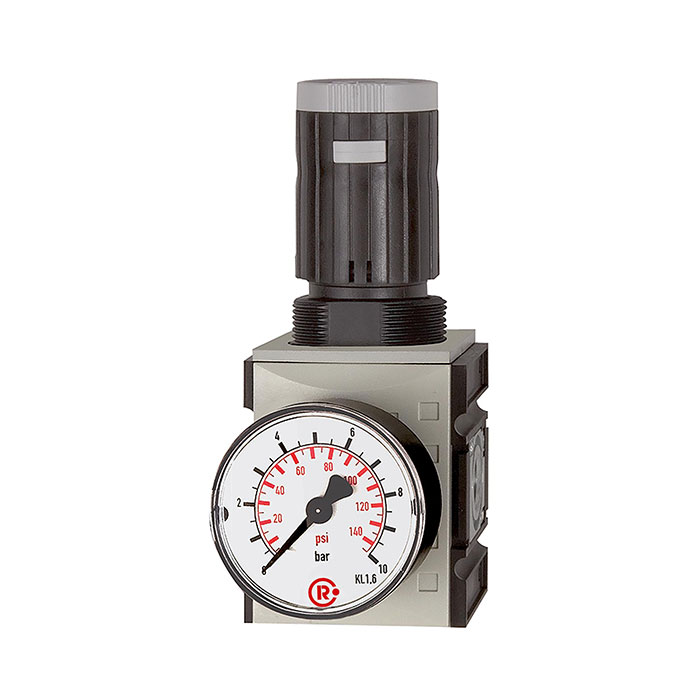

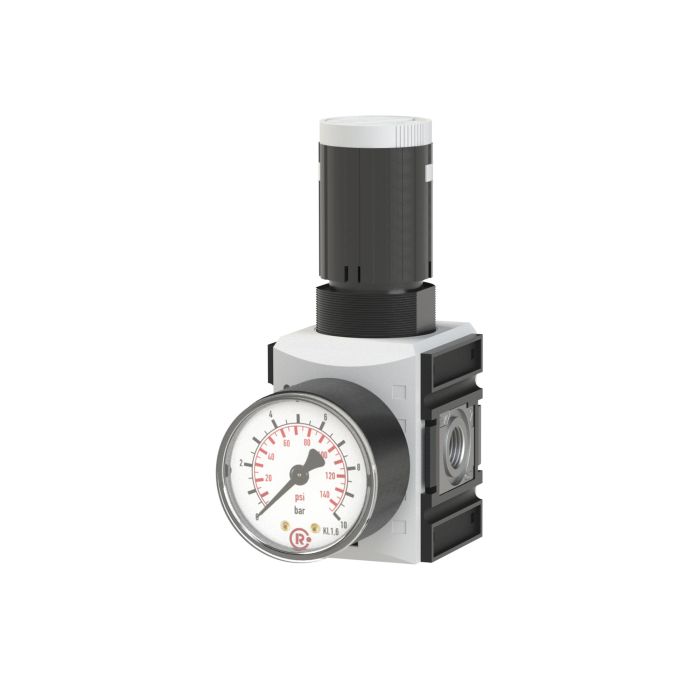

RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.5 - 10 bar
Type number: FU 7010
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator "FUTURA" made of PA66 GF60, for compressed air preparation, 0.5 bar - Type FU 7010
The RIEGLER "FUTURA" pressure regulator, incl. pressure gauge, BG 1, G 1/4, 0.5 - 10 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 2000 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 1/4 |
| Flow rate | 2000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 1 |
| A | 52 mm |
| B | 129 mm |
| C | 96 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100001] RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.1 - 1 bar](/web/image/product.template/117999/image_128/%5B100001%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.1%20-%201%20bar?unique=69c977b)
|
Type number: FU 7001 |
34.45 € | |
![[100002] RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.1 - 2 bar](/web/image/product.template/118000/image_128/%5B100002%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.1%20-%202%20bar?unique=4b9b509)
|
Type number: FU 7002 |
34.45 € | |
![[100003] RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.2 - 4 bar](/web/image/product.template/118001/image_128/%5B100003%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.2%20-%204%20bar?unique=045f838)
|
Type number: FU 7004 |
34.45 € | |
![[100006] RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.5 - 16 bar](/web/image/product.template/118004/image_128/%5B100006%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2016%20bar?unique=09b1a0c)
|
Type number: FU 7016 |
34.45 € | |
![[100004] RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.5 - 8 bar](/web/image/product.template/118002/image_128/%5B100004%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%208%20bar?unique=7333044)
|
Type number: FU 7008 |
34.45 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

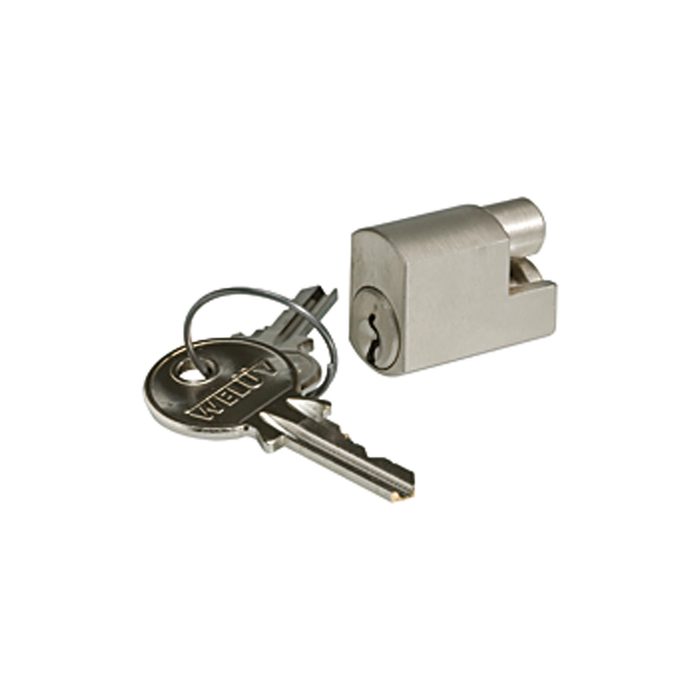

![[100037] Riegler Plug lock for »FUTURA«, made of nickel-plated brass](/web/image/product.template/118199/image_128/%5B100037%5D%20Riegler%20Plug%20lock%20for%20%C2%BBFUTURA%C2%AB%2C%20made%20of%20nickel-plated%20brass?unique=f92ff32)
|
Type number: SS 32 |
43.95 € | |

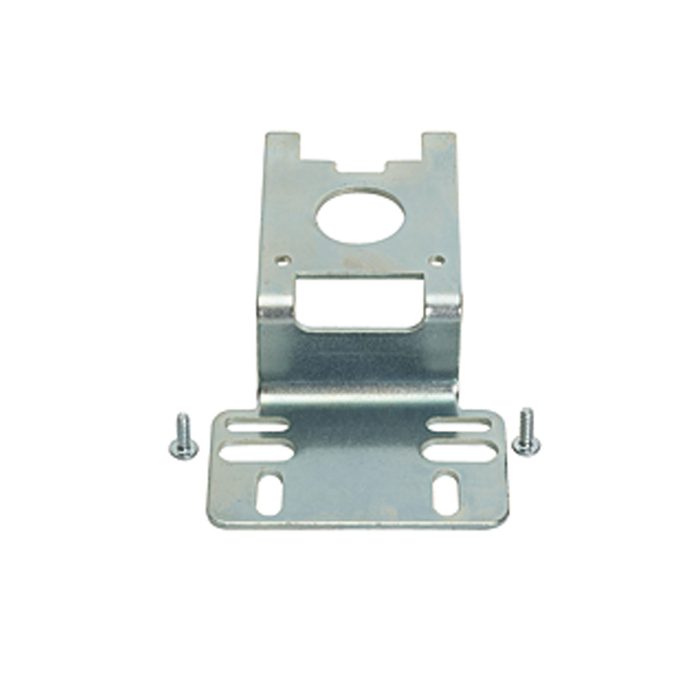

![[100038] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 1](/web/image/product.template/118200/image_128/%5B100038%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=af0fbfa)
|
Type number: H 850 |
6.82 € | |

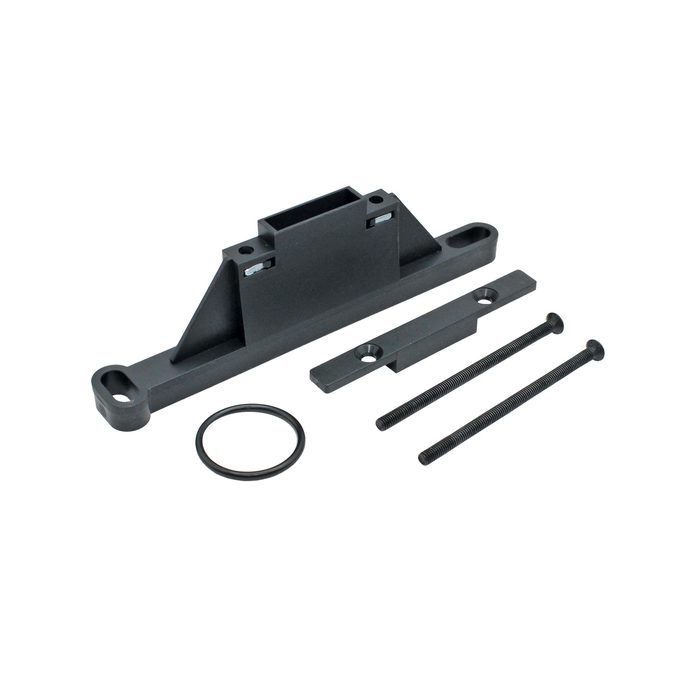

![[100039] RIEGLER Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118201/image_128/%5B100039%5D%20RIEGLER%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=91222d8)
|
Type number: WK 100 |
3.37 € | |
![[100040] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118202/image_128/%5B100040%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=7a38eac)
|
Type number: KP 100 |
2.05 € | |

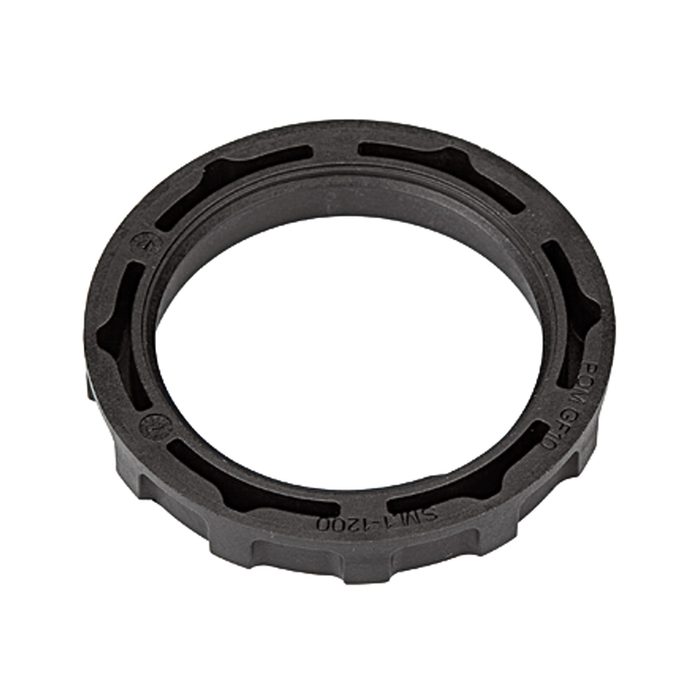

![[100041] Riegler Control panel nut M36x1.5, for »FUTURA«, Size 1, G 1/4 and G 3/8](/web/image/product.template/118203/image_128/%5B100041%5D%20Riegler%20Control%20panel%20nut%20M36x1.5%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=b401a08)
|
Type number: FU 11-55 |
1.00 € | |
![[135851] RIEGLER Wall console with connection thread G 1/4, for »FUTURA«, Size 1](/web/image/product.template/206208/image_128/%5B135851%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=e874eb5)
|
Type number: WK 101-14 |
29.45 € | |
![[135852] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 1](/web/image/product.template/206209/image_128/%5B135852%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=9291427)
|
Type number: WK 101-38 |
29.45 € | |

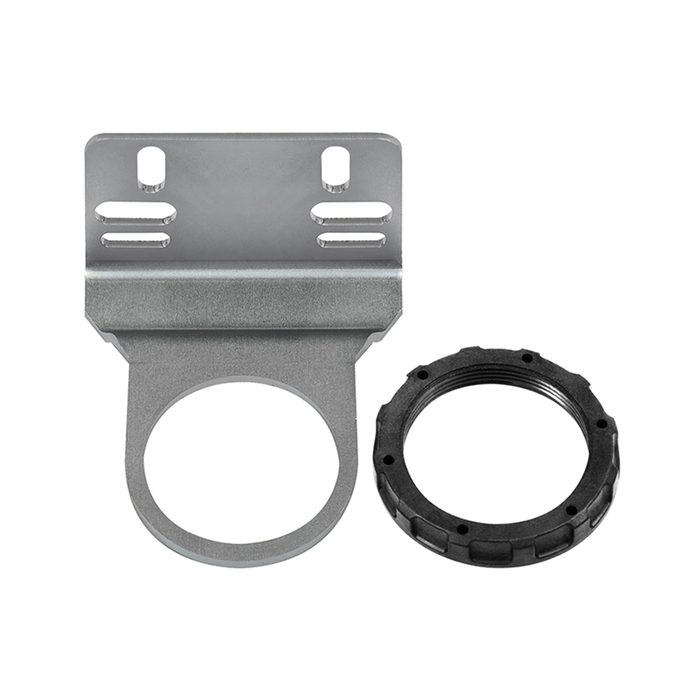

![[152945] RIEGLER Mounting bracket with control panel nut M36x1.5, »FUTURA«, Size 1](/web/image/product.template/212484/image_128/%5B152945%5D%20RIEGLER%20Mounting%20bracket%20with%20control%20panel%20nut%20M36x1.5%2C%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=e9d712b)
|
Typennummer: H 851 |
6.24 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

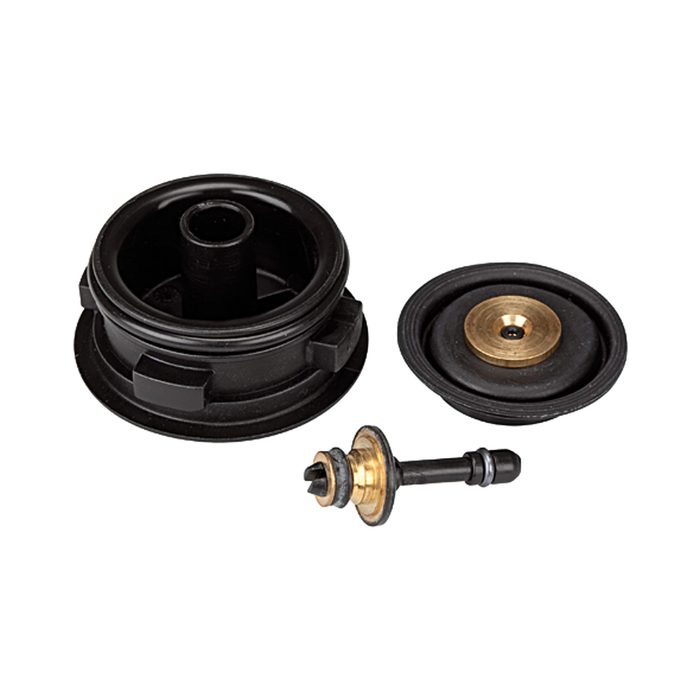

![[100042] Riegler Wear part set for »FUTURA«, size 1, G 1/4 and G 3/8](/web/image/product.template/118204/image_128/%5B100042%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%201%2C%20G%201-4%20and%20G%203-8?unique=882f3ca)
|
