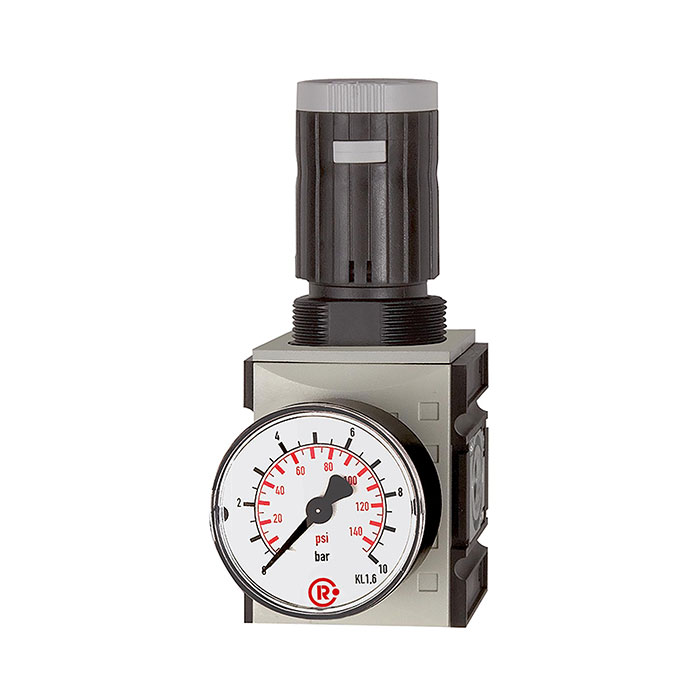

RIEGLER Pressure regulator »FUTURA«, Size 4, G 1, 0.2 - 4 bar
Type number: FU 71104
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator "FUTURA", incl. pressure gauge, BG 4, G 1, PE max. 16 bar, temp. -10 °C to 50 °C, control range 0.2 - 4 bar
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Intrinsic air consumption max. | 1.5 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 1 |
| Flow rate | 14200 l/min |
| Control range min. | 0.2 bar |
| Control range max. | 4 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 6 bar |
| BG | 4 |
| A | 85 mm |
| B | 191 mm |
| C | 137 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I. 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Intrinsic air consumption | Yes |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

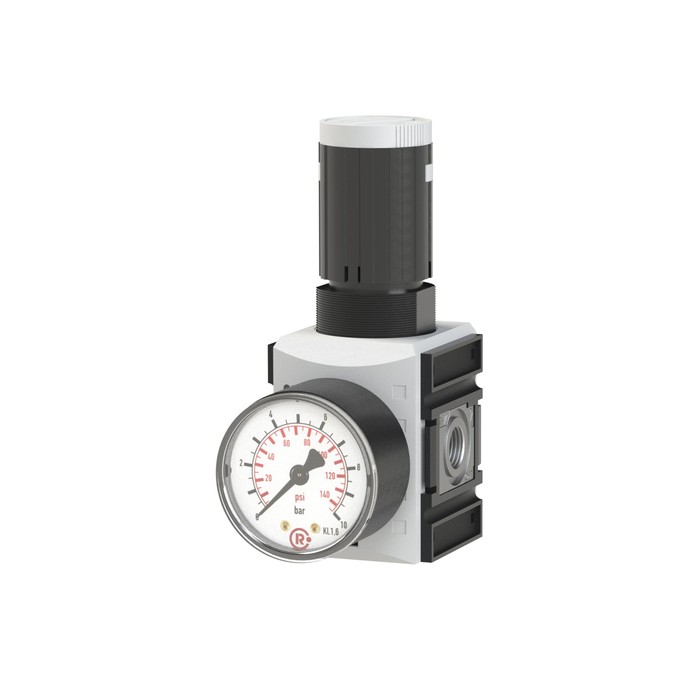

![[100001] RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.1 - 1 bar](/web/image/product.template/117999/image_128/%5B100001%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.1%20-%201%20bar?unique=21ddff0)
|
Type number: FU 7001 |
34.45 € | |
![[100002] RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.1 - 2 bar](/web/image/product.template/118000/image_128/%5B100002%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.1%20-%202%20bar?unique=af912c2)
|
Type number: FU 7002 |
34.45 € | |
![[100003] RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.2 - 4 bar](/web/image/product.template/118001/image_128/%5B100003%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.2%20-%204%20bar?unique=5b08b7e)
|
Type number: FU 7004 |
34.45 € | |
![[100005] RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.5 - 10 bar](/web/image/product.template/118003/image_128/%5B100005%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=cd28375)
|
Type number: FU 7010 |
34.45 € | |
![[100006] RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.5 - 16 bar](/web/image/product.template/118004/image_128/%5B100006%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2016%20bar?unique=1cd13a8)
|
Type number: FU 7016 |
34.45 € | |
![[100004] RIEGLER Pressure regulator »FUTURA«, Size 1, G 1/4, 0.5 - 8 bar](/web/image/product.template/118002/image_128/%5B100004%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%208%20bar?unique=4e1de84)
|
Type number: FU 7008 |
34.45 € | |
![[100007] RIEGLER Pressure regulator »FUTURA«, Size 1, G 3/8, 0.1 - 1 bar](/web/image/product.template/118005/image_128/%5B100007%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.1%20-%201%20bar?unique=85860c1)
|
Type number: FU 7101 |
34.45 € | |
![[100008] RIEGLER Pressure regulator »FUTURA«, Size 1, G 3/8, 0.1 - 2 bar](/web/image/product.template/118006/image_128/%5B100008%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.1%20-%202%20bar?unique=7f1cf17)
|
Type number: FU 7102 |
34.45 € | |
![[100009] RIEGLER Pressure regulator »FUTURA«, Size 1, G 3/8, 0.2 - 4 bar](/web/image/product.template/118007/image_128/%5B100009%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.2%20-%204%20bar?unique=1f4c275)
|
Type number: FU 7104 |
34.45 € | |
![[100011] RIEGLER Pressure regulator »FUTURA«, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/118009/image_128/%5B100011%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=820f925)
|
Type number: FU 7110 |
34.45 € | |
![[100012] RIEGLER Pressure regulator »FUTURA«, Size 1, G 3/8, 0.5 - 16 bar](/web/image/product.template/118010/image_128/%5B100012%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=96e06fc)
|
Type number: FU 7116 |
34.45 € | |
![[100010] RIEGLER Pressure regulator »FUTURA«, Size 1, G 3/8, 0.5 - 8 bar](/web/image/product.template/118008/image_128/%5B100010%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%208%20bar?unique=bee2aec)
|
Type number: FU 7108 |
34.45 € | |
![[100019] RIEGLER Pressure regulator »FUTURA«, Size 2, G 1/2, 0.1 - 1 bar](/web/image/product.template/118017/image_128/%5B100019%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.1%20-%201%20bar?unique=3705451)
|
Type number: FU 7171 |
53.31 € | |
![[100020] RIEGLER Pressure regulator »FUTURA«, Size 2, G 1/2, 0.1 - 2 bar](/web/image/product.template/118018/image_128/%5B100020%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.1%20-%202%20bar?unique=21fb51a)
|
Type number: FU 7172 |
53.31 € | |
![[100021] RIEGLER Pressure regulator »FUTURA«, Size 2, G 1/2, 0.2 - 4 bar](/web/image/product.template/118019/image_128/%5B100021%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.2%20-%204%20bar?unique=9289e61)
|
Type number: FU 7174 |
53.31 € | |
![[100023] RIEGLER Pressure regulator »FUTURA«, Size 2, G 1/2, 0.5 - 10 bar](/web/image/product.template/118021/image_128/%5B100023%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=7c31675)
|
Type number: FU 7180 |
53.31 € | |
![[100024] RIEGLER Pressure regulator »FUTURA«, Size 2, G 1/2, 0.5 - 16 bar](/web/image/product.template/118022/image_128/%5B100024%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%2016%20bar?unique=0938af2)
|
Type number: FU 7186 |
53.31 € | |
![[100022] RIEGLER Pressure regulator »FUTURA«, Size 2, G 1/2, 0.5 - 8 bar](/web/image/product.template/118020/image_128/%5B100022%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%208%20bar?unique=a781077)
|
Type number: FU 7178 |
53.31 € | |
![[100013] RIEGLER Pressure regulator »FUTURA«, Size 2, G 3/8, 0.1 - 1 bar](/web/image/product.template/118011/image_128/%5B100013%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8%2C%200.1%20-%201%20bar?unique=eeb8573)
|
Type number: FU 7151 |
53.31 € | |
![[100014] RIEGLER Pressure regulator »FUTURA«, Size 2, G 3/8, 0.1 - 2 bar](/web/image/product.template/118012/image_128/%5B100014%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8%2C%200.1%20-%202%20bar?unique=b5d678f)
|
Type number: FU 7152 |
53.31 € | |
![[100015] RIEGLER Pressure regulator »FUTURA«, Size 2, G 3/8, 0.2 - 4 bar](/web/image/product.template/118013/image_128/%5B100015%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8%2C%200.2%20-%204%20bar?unique=b7a7f35)
|
Type number: FU 7154 |
53.31 € | |
![[100017] RIEGLER Pressure regulator »FUTURA«, Size 2, G 3/8, 0.5 - 10 bar](/web/image/product.template/118015/image_128/%5B100017%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=fc2b4cc)
|
Type number: FU 7160 |
53.31 € | |
![[100018] RIEGLER Pressure regulator »FUTURA«, Size 2, G 3/8, 0.5 - 16 bar](/web/image/product.template/118016/image_128/%5B100018%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=11db495)
|
Type number: FU 7166 |
53.31 € | |
![[100016] RIEGLER Pressure regulator »FUTURA«, Size 2, G 3/8, 0.5 - 8 bar](/web/image/product.template/118014/image_128/%5B100016%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8%2C%200.5%20-%208%20bar?unique=fca4b64)
|
Type number: FU 7158 |
53.31 € | |
![[100031] RIEGLER Pressure regulator »FUTURA«, Size 4, G 1, 0.1 - 1 bar](/web/image/product.template/118029/image_128/%5B100031%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%201%2C%200.1%20-%201%20bar?unique=aa84b63)
|
Type number: FU 71101 |
106.73 € | |
![[100032] RIEGLER Pressure regulator »FUTURA«, Size 4, G 1, 0.1 - 2 bar](/web/image/product.template/118030/image_128/%5B100032%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%201%2C%200.1%20-%202%20bar?unique=15cbbd1)
|
Type number: FU 71102 |
106.73 € | |
![[100035] RIEGLER Pressure regulator »FUTURA«, Size 4, G 1, 0.5 - 10 bar](/web/image/product.template/118033/image_128/%5B100035%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%201%2C%200.5%20-%2010%20bar?unique=935c990)
|
Type number: FU 71110 |
106.73 € | |
![[100036] RIEGLER Pressure regulator »FUTURA«, Size 4, G 1, 0.5 - 16 bar](/web/image/product.template/118034/image_128/%5B100036%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%201%2C%200.5%20-%2016%20bar?unique=49c00d2)
|
Type number: FU 71116 |
106.73 € | |
![[100034] RIEGLER Pressure regulator »FUTURA«, Size 4, G 1, 0.5 - 8 bar](/web/image/product.template/118032/image_128/%5B100034%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%201%2C%200.5%20-%208%20bar?unique=516200e)
|
Type number: FU 71108 |
106.73 € | |
![[100025] RIEGLER Pressure regulator »FUTURA«, Size 4, G 3/4, 0.1 - 1 bar](/web/image/product.template/118023/image_128/%5B100025%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4%2C%200.1%20-%201%20bar?unique=d6bec21)
|
Type number: FU 7181 |
106.73 € | |
![[100026] RIEGLER Pressure regulator »FUTURA«, Size 4, G 3/4, 0.1 - 2 bar](/web/image/product.template/118024/image_128/%5B100026%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4%2C%200.1%20-%202%20bar?unique=18f9651)
|
Type number: FU 7182 |
106.73 € | |
![[100027] RIEGLER Pressure regulator »FUTURA«, Size 4, G 3/4, 0.2 - 4 bar](/web/image/product.template/118025/image_128/%5B100027%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4%2C%200.2%20-%204%20bar?unique=79e30df)
|
Type number: FU 7184 |
106.73 € | |
![[100029] RIEGLER Pressure regulator »FUTURA«, Size 4, G 3/4, 0.5 - 10 bar](/web/image/product.template/118027/image_128/%5B100029%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=0e0047f)
|
Type number: FU 7190 |
106.73 € | |
![[100030] RIEGLER Pressure regulator »FUTURA«, Size 4, G 3/4, 0.5 - 16 bar](/web/image/product.template/118028/image_128/%5B100030%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=23b1aac)
|
Type number: FU 7196 |
106.73 € | |
![[100028] RIEGLER Pressure regulator »FUTURA«, Size 4, G 3/4, 0.5 - 8 bar](/web/image/product.template/118026/image_128/%5B100028%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4%2C%200.5%20-%208%20bar?unique=f907b2a)
|
Type number: FU 7188 |
106.73 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100037] Riegler Plug lock for »FUTURA«, made of nickel-plated brass](/web/image/product.template/118199/image_128/%5B100037%5D%20Riegler%20Plug%20lock%20for%20%C2%BBFUTURA%C2%AB%2C%20made%20of%20nickel-plated%20brass?unique=98a523a)
|
Type number: SS 32 |
43.95 € | |
![[100048] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 4](/web/image/product.template/118210/image_128/%5B100048%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=3c52e32)
|
Type number: H 854 |
12.95 € | |
![[100049] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 4](/web/image/product.template/118211/image_128/%5B100049%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=9ee9b9d)
|
Type number: WK 103 |
6.18 € | |
![[100050] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 4](/web/image/product.template/118212/image_128/%5B100050%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=0f5385d)
|
Type number: KP 300 |
4.39 € | |
![[135853] RIEGLER Wall console with connection thread G 3/4, for »FUTURA«, Size 4](/web/image/product.template/206210/image_128/%5B135853%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=d138554)
|
Type number: WK 104-34 |
63.42 € | |
![[135854] RIEGLER Wall console with connection thread G 1, for »FUTURA«, Size 4](/web/image/product.template/206211/image_128/%5B135854%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%204?unique=eeb0f13)
|
Type number: WK 104-1 |
63.42 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

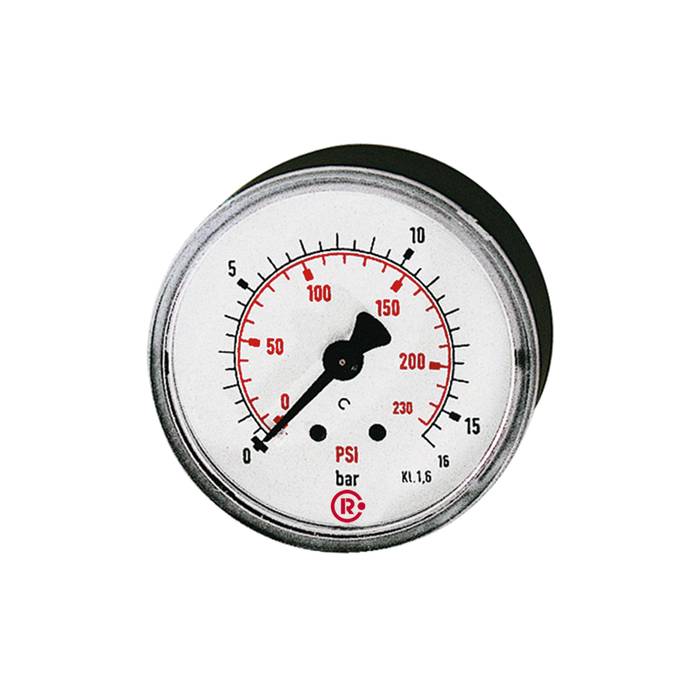

![[101224] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 6 bar/87 psi](/web/image/product.template/140660/image_128/%5B101224%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%206%20bar-87%20psi?unique=f42a57a)
|
