FUTURA Mist Lubricator, Polycarbonate Tank, Protective Cage, BG 1, G 3/8
Part Number: LDGNR14ES4408KDII
EAN: 4047322191807
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER "FUTURA" oil mist lubricator made of PA66 GF60, for maintenance equipment – Model FU 902
The RIEGLER “FUTURA” mist lubricator, featuring a polycarbonate tank, protective cage, BG 1, and G 3/8, safely collects condensate and allows for easy level monitoring. The housing is made of PA66 GF60 with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature ranges from -10 °C to 50 °C. G 3/8 connection—compatible with common industrial standards. The flow rate is 2750 l/min. The tank consists of a polycarbonate tank with a protective cage. Suitable for compressed air and neutral gases. Easy to replace without special tools.
Scope of Application
Typical applications: Add-on mist lubricators, compressed air lubricators, and maintenance equipment for compressed air and pneumatic systems.
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Flow rate measurement | at P2 = 6 bar and a pressure drop Δp = 1 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | PC |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Thread | G 3/8 |
| BG | 1 |
| A | 52 mm |
| B | 186 mm |
| C | 64 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 2750 l/min |
| SCIP message number Supplier | a9a9cf5b-1414-4a62-90d1-20e518c7b08c |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100206] Riegler Mist oiler »FUTURA«, PC container, Protective cage, Size 1, G 1/4](/web/image/product.template/123253/image_128/%5B100206%5D%20Riegler%20Mist%20oiler%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%201%2C%20G%201-4?unique=f026375)
|
Type number: FU 901 |
28.14 € | |
![[100208] Riegler Mist oiler »FUTURA«, PC container, Protective cage, Size 2, G 3/8](/web/image/product.template/123255/image_128/%5B100208%5D%20Riegler%20Mist%20oiler%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%202%2C%20G%203-8?unique=4aa74fb)
|
Type number: FU 903 |
43.59 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

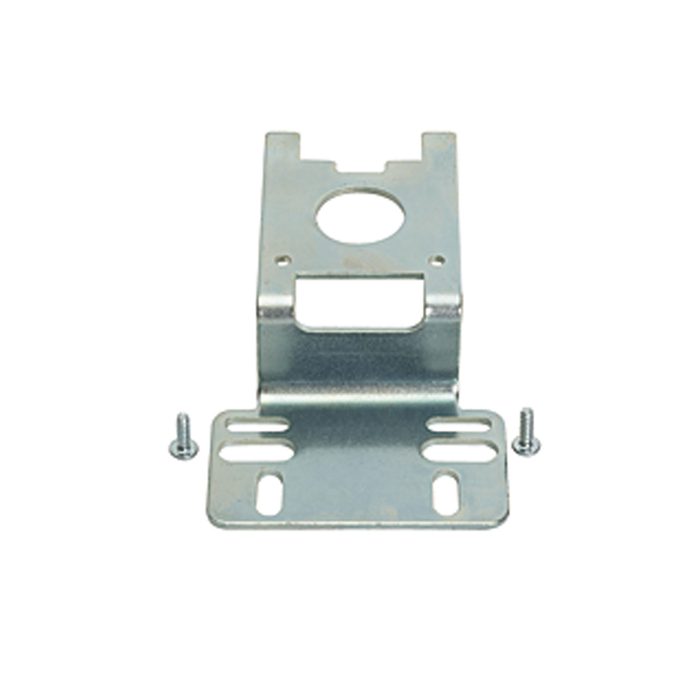

![[100038] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 1](/web/image/product.template/118200/image_128/%5B100038%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=6c35e10)
|
Type number: H 850 |
6.47 € | |

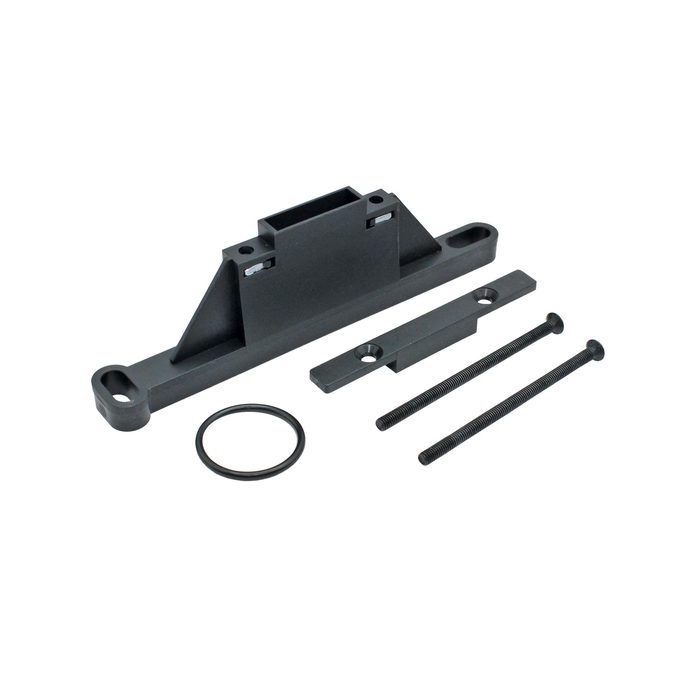

![[100039] RIEGLER Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118201/image_128/%5B100039%5D%20RIEGLER%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=4c4754d)
|
Type number: WK 100 |
3.19 € | |

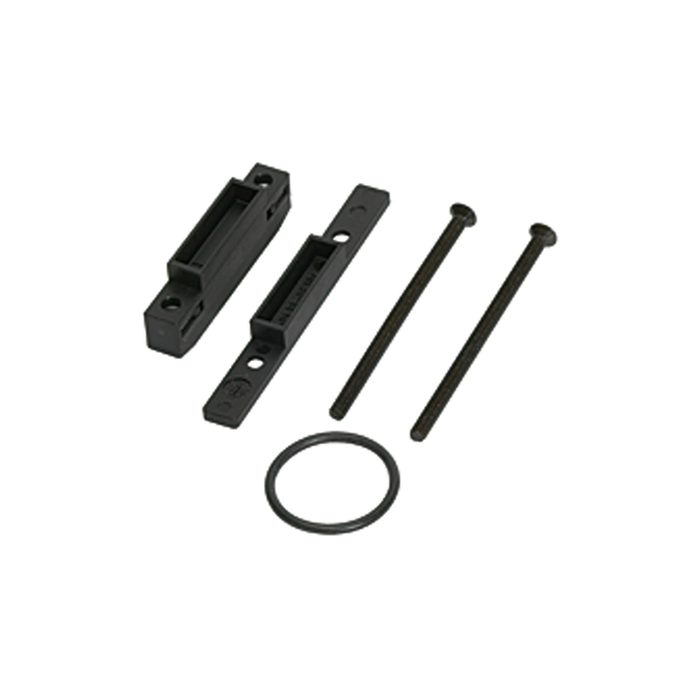

![[100040] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118202/image_128/%5B100040%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=6957569)
|
Type number: KP 100 |
1.94 € | |
