Riegler Service unit 2-part »FUTURA«, PC, Size 1, G 3/8, 0.5-8, Semi a.
Type number: FU 602
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Wartungseinheit 2-tlg. »FUTURA«, PC-Behälter, Schutzkorb und Manometer, BG 1, G 3/8, Regelbereich 0,5 - 8 bar, Kondensatablass: HA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Dropper attachment | PC |
| Thread | G 3/8 |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| Condensate drain | semi-automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 1 |
| A | 104 mm |
| B | 226 mm |
| C | 96 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 1750 l/min |
| SCIP message number Supplier | 666ee50b-c92a-4a47-8d87-1db59fefe151 |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100040] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118202/image_128/%5B100040%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=05a3bff)
|
Type number: KP 100 |
2.05 € | |
![[100214] Riegler Drip cap polycarbonate, »FUTURA« and »FUTURA-mini«, Size 0 - 4](/web/image/product.template/123261/image_128/%5B100214%5D%20Riegler%20Drip%20cap%20polycarbonate%2C%20%C2%BBFUTURA%C2%AB%20and%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%20-%204?unique=d3122f2)
|
Type number: 901.7.990 |
6.71 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=880b63d)
|
Type number: 611.6.905 |
9.46 € | |
![[100212] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, f. Nebelöler FUTURA BG 1](/web/image/product.template/123259/image_128/%5B100212%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20f.%20Nebel%C3%B6ler%20FUTURA%20BG%201?unique=1137b9e)
|
Type number: BSL 14 |
11.51 € | |

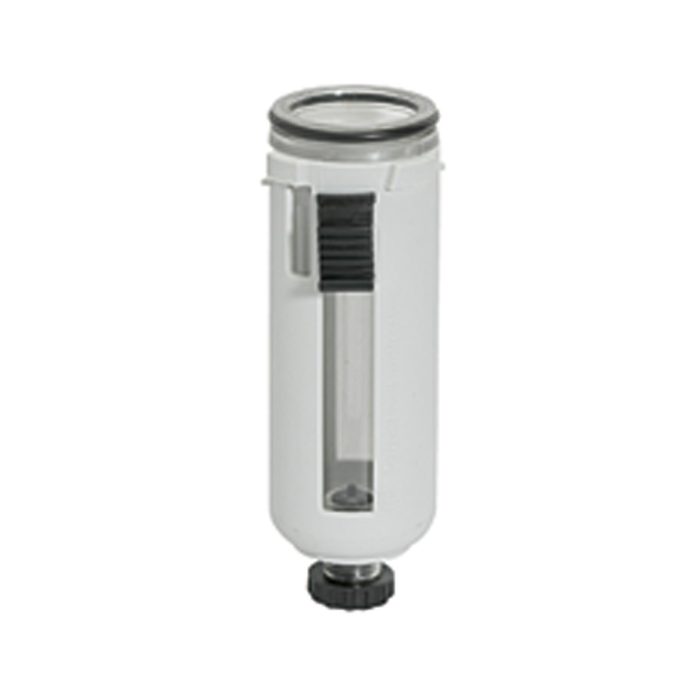

![[100130] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 1, Ablass: HA](/web/image/product.template/123195/image_128/%5B100130%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%201%2C%20Ablass:%20HA?unique=dc1670d)
|
Type number: BSF 14 |
8.28 € | |
![[101677] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=3af80da)
|
Type number: 206-KD |
6.25 € | |
![[100042] Riegler Wear part set for »FUTURA«, size 1, G 1/4 and G 3/8](/web/image/product.template/118204/image_128/%5B100042%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%201%2C%20G%201-4%20and%20G%203-8?unique=c33fce3)
|
Type number: 22.7010.4 |
7.76 € | |
