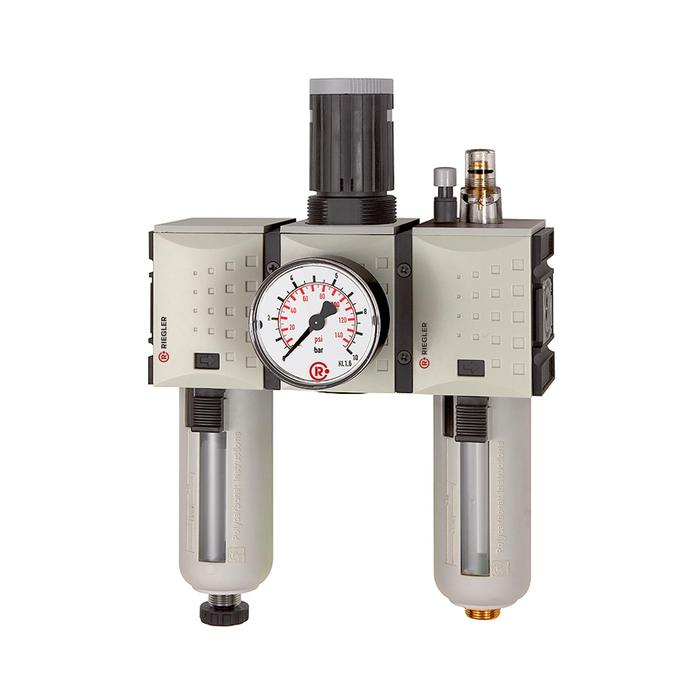

3-piece FUTURA Maintenance Unit, PC, BG 1, G 3/8, 0.5–8 bar, HA
Part Number: LDGNR34ES4408FDII
EAN: 4047322190398
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "FUTURA" maintenance unit made of PA66 GF60, for compressed air treatment – Type FU 622
The RIEGLER 3-piece “FUTURA” maintenance unit, PC, BG 1, G 3/8, 0.5–8 bar, HA combines filtration and pressure regulation in a compact, ready-to-connect unit. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.5 bar to 8 bar at a maximum inlet pressure of 16 bar. The permissible fluid temperature ranges from -10 °C to 50 °C. G 3/8 connection—compatible with common industrial standards. The flow rate is 1,750 l/min. Filter rating: 5 µm; polycarbonate housing with protective cage. Suitable for compressed air and neutral gases. The diaphragm pressure regulator with secondary vent can be locked and sealed; oil can be refilled during operation. All components are designed to work together seamlessly and are easy to maintain.
Scope of Application
Typical applications: Compressed air maintenance units, maintenance equipment, and FUTURA maintenance equipment in compressed air and pneumatic systems.
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Dropper attachment | PC |
| Thread | G 3/8 |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| Condensate drain | semi-automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 1 |
| A | 156 mm |
| B | 226 mm |
| C | 96 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 1750 l/min |
| SCIP message number Supplier | 393fec89-a71b-470b-ac73-3c8d3c49136d |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[152618] RIEGLER Service unit 3-part »FUTURA«, PC, Size 1, G 3/8, 0.1-1, Semi a.](/web/image/product.template/211086/image_128/%5B152618%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.1-1%2C%20Semi%20a.?unique=65b4d63)
|
Model Number: FU 622-1 |
82.21 € | |
![[152619] RIEGLER Service unit 3-part »FUTURA«, PC, Size 1, G 3/8, 0.1-2, Semi a.](/web/image/product.template/211087/image_128/%5B152619%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.1-2%2C%20Semi%20a.?unique=cdbb642)
|
Model Number: FU 622-2 |
82.21 € | |
![[152620] RIEGLER Service unit 3-part »FUTURA«, PC, Size 1, G 3/8, 0.2-4, Semi a.](/web/image/product.template/211088/image_128/%5B152620%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.2-4%2C%20Semi%20a.?unique=c1a9507)
|
Model Number: FU 622-4 |
82.21 € | |
![[152621] RIEGLER Service unit 3-part »FUTURA«, PC, Size 1, G 3/8, 0.5-10, Semi a.](/web/image/product.template/211089/image_128/%5B152621%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.5-10%2C%20Semi%20a.?unique=408ffda)
|
Part Number: FU 622-10 |
82.21 € | |
![[152622] RIEGLER Service unit 3-part »FUTURA«, PC, Size 1, G 3/8, 0.5-16, Semi a.](/web/image/product.template/211090/image_128/%5B152622%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.5-16%2C%20Semi%20a.?unique=18db7ac)
|
Model Number: FU 622-16 |
82.21 € | |

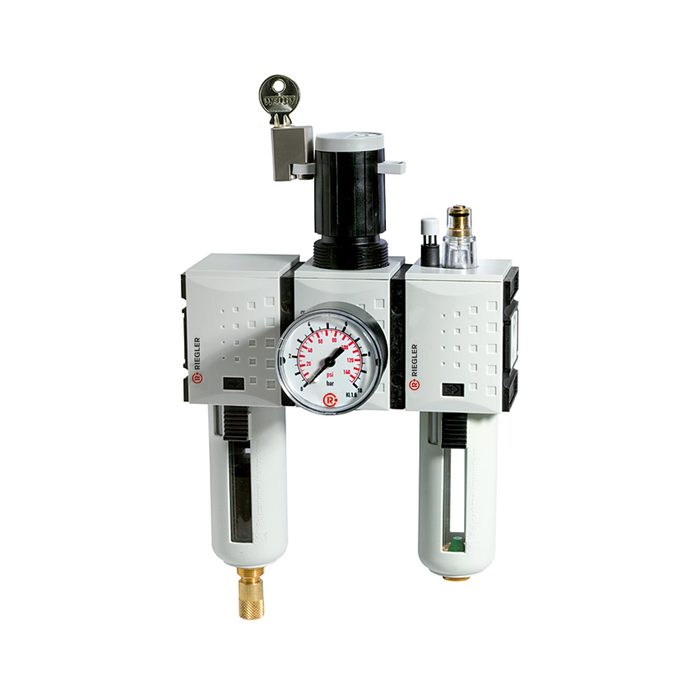

![[100238] Riegler Service unit 3-part »FUTURA«, PC, Size 1, G 3/8, 0.5-8, Fully a.](/web/image/product.template/123285/image_128/%5B100238%5D%20Riegler%20Service%20unit%203-part%20%C2%BBFUTURA%C2%AB%2C%20PC%2C%20Size%201%2C%20G%203-8%2C%200.5-8%2C%20Fully%20a.?unique=d39bded)
|
