RIEGLER Distributor »FUTURA«, Size 1, G 1/4, Outlets 3 x G 1/4
Type number: FU 941
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER FUTURA" manifold made of PA66 GF60, for compressed air preparation, G 1/4 - type FU 941
The RIEGLER "FUTURA" manifold, BG 1, G 1/4, outlets 3 x G 1/4 expands maintenance systems modularly with additional functions. The housing is made of PA66 GF60. The maximum inlet pressure is 16 bar. The temperature range is between -10 °C and 50 °C. G 1/4 connection thread - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 2700 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 1/4 |
| Flow rate | 2700 l/min |
| Departure | 3 x G 1/4 |
| BG | 1 |
| A | 52 mm |
| B | 65.5 mm |
| C | 34.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100275] RIEGLER Distributor »FUTURA«, Size 1, G 3/8, Outlets 3 x G 1/4](/web/image/product.template/132843/image_128/%5B100275%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%203-8%2C%20Outlets%203%20x%20G%201-4?unique=81e7727)
|
Type number: FU 942 |
16.86 € | |
![[100277] RIEGLER Distributor »FUTURA«, Size 2 G 1/2, Outlets 2xG 3/8, G 1/4, G 1/2](/web/image/product.template/132845/image_128/%5B100277%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%202%20G%201-2%2C%20Outlets%202xG%203-8%2C%20G%201-4%2C%20G%201-2?unique=c1c8161)
|
Type number: FU 944 |
20.94 € | |
![[100276] RIEGLER Distributor »FUTURA«, Size 2 G 3/8, Outlets 2xG 3/8, G 1/4, G 1/2](/web/image/product.template/132844/image_128/%5B100276%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%202%20G%203-8%2C%20Outlets%202xG%203-8%2C%20G%201-4%2C%20G%201-2?unique=f8b223a)
|
Type number: FU 943 |
20.94 € | |

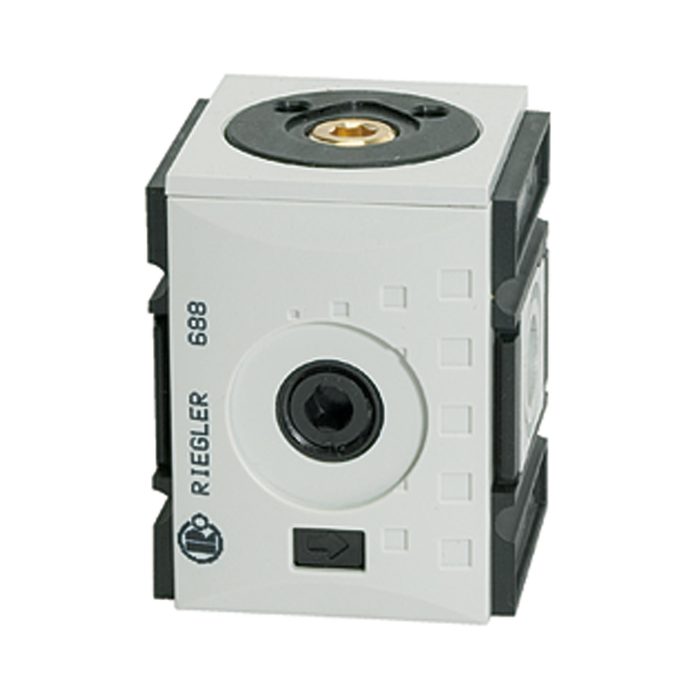

![[100279] RIEGLER Distributor »FUTURA«, Size 4, G 1, Outlets 2 x G 3/4](/web/image/product.template/139714/image_128/%5B100279%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%201%2C%20Outlets%202%20x%20G%203-4?unique=5fd1454)
|
Type number: FU 946 |
60.79 € | |
![[100278] RIEGLER Distributor »FUTURA«, Size 4, G 3/4, Outlets 2 x G 3/4](/web/image/product.template/138956/image_128/%5B100278%5D%20RIEGLER%20Distributor%20%C2%BBFUTURA%C2%AB%2C%20Size%204%2C%20G%203-4%2C%20Outlets%202%20x%20G%203-4?unique=167ee0e)
|
Type number: FU 945 |
60.79 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100038] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 1](/web/image/product.template/118200/image_128/%5B100038%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=a916fbe)
|
Type number: H 850 |
6.82 € | |
![[100039] RIEGLER Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118201/image_128/%5B100039%5D%20RIEGLER%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=d41d3e6)
|
Type number: WK 100 |
3.37 € | |
![[100040] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118202/image_128/%5B100040%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=6f43032)
|
Type number: KP 100 |
2.05 € | |
![[100280] RIEGLER Pressure switch changeover contact design flangeable, 0.5-10 bar](/web/image/product.template/139715/image_128/%5B100280%5D%20RIEGLER%20Pressure%20switch%20changeover%20contact%20design%20flangeable%2C%200.5-10%20bar?unique=b3a2790)
|
Type number: DS 9410 |
96.81 € | |
![[100281] RIEGLER Shaped seal for flange pressure switch](/web/image/product.template/139716/image_128/%5B100281%5D%20RIEGLER%20Shaped%20seal%20for%20flange%20pressure%20switch?unique=23dbe48)
|
Type number: 22.DS9410.4 |
4.05 € | |

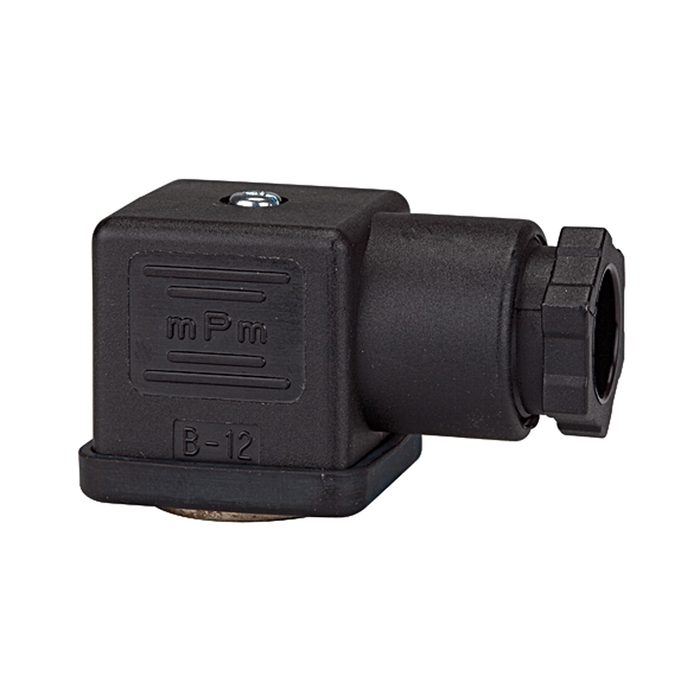

![[100282] RIEGLER Equipment plug for pressure switch, acc. to DIN EN 175301-803 A](/web/image/product.template/139717/image_128/%5B100282%5D%20RIEGLER%20Equipment%20plug%20for%20pressure%20switch%2C%20acc.%20to%20DIN%20EN%20175301-803%20A?unique=3f9107c)
|
