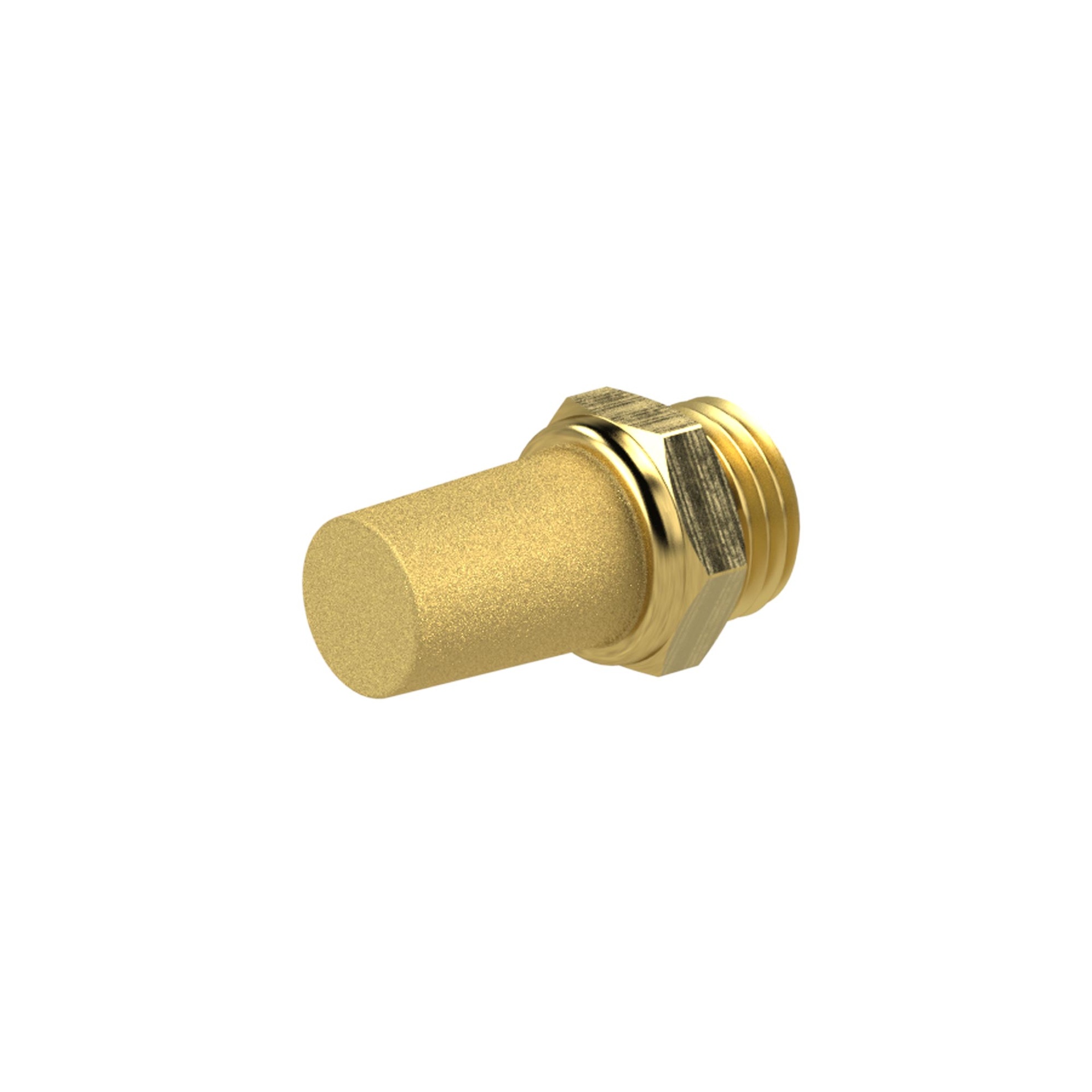

RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 3/4, AF 30
Type number: 567-5/M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Sintered bronze silencer for noise protection, max. 8 bar, G 3/4 - Type 567-5/M
The RIEGLER sintered bronze silencer, MS thread/hexagon, G 3/4, SW 30 significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 8 bar. The operating temperature is between -10 °C and 250 °C. Connection thread G 3/4 - suitable for common industry standards. Significant noise reduction for improved occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 8 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Noise level at 6 bar | 71-108 dB |
| Thread | G 3/4 |
| SW | 30 mm |
| A | 9 mm |
| B | 53 mm |
| C | 21 mm |
| Description of the | Silencer sintered bronze, with hexagon and thread made of brass |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | EASY |
