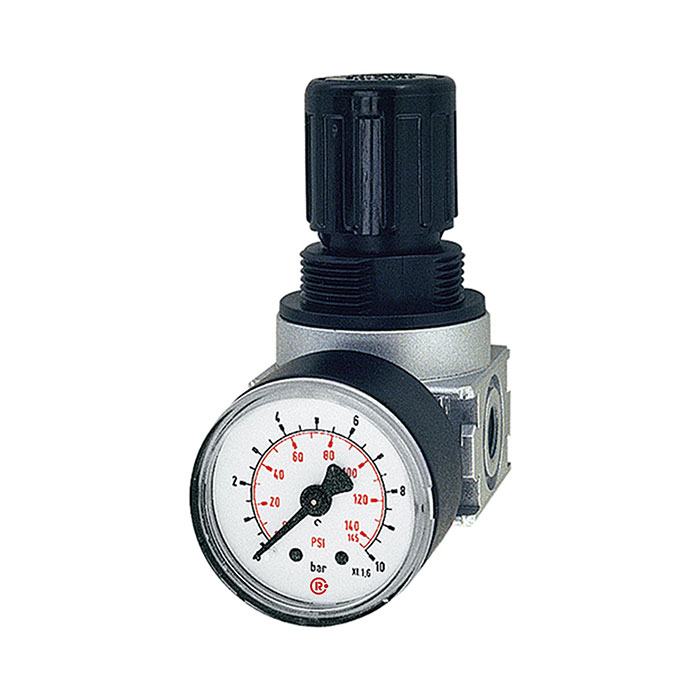

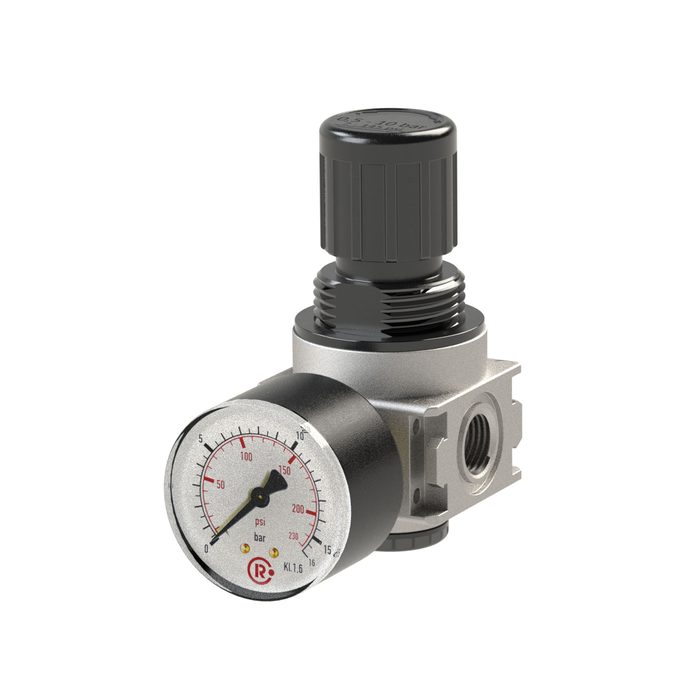

RIEGLER Pressure regulator »multifix-mini«, Size 0, G 1/8, 0.5 - 16 bar
Type number: R 05-16
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator "multifix-mini" made of die-cast zinc, for compressed air preparation - type R 05-16
The RIEGLER pressure regulator "multifix-mini" incl. Mano, BG 0, G 1/8, 0.5 - 16 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 16 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/8 - suitable for common industry standards. The flow rate is 1450 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix-mini |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/8 |
| Flow rate | 1450 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 16 bar |
| DN | 5 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 25 bar |
| BG | 0 |
| A | 40 mm |
| B | 85 mm |
| C | 63 mm |
| D | 22 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100341] RIEGLER Pressure regulator »multifix-mini«, Size 0, G 1/4, 0.1 - 3 bar](/web/image/product.template/139775/image_128/%5B100341%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix-mini%C2%AB%2C%20Size%200%2C%20G%201-4%2C%200.1%20-%203%20bar?unique=e40ea8b)
|
Type number: R 06- 3 |
30.08 € | |
![[100342] RIEGLER Pressure regulator »multifix-mini«, Size 0, G 1/4, 0.2 - 6 bar](/web/image/product.template/139776/image_128/%5B100342%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix-mini%C2%AB%2C%20Size%200%2C%20G%201-4%2C%200.2%20-%206%20bar?unique=7a4fa79)
|
Type number: R 06- 6 |
30.08 € | |
![[100343] RIEGLER Pressure regulator »multifix-mini«, Size 0, G 1/4, 0.5 - 10 bar](/web/image/product.template/139777/image_128/%5B100343%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix-mini%C2%AB%2C%20Size%200%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=58c10e3)
|
Type number: R 06-10 |
30.08 € | |
![[100337] RIEGLER Pressure regulator »multifix-mini«, Size 0, G 1/8, 0.1 - 3 bar](/web/image/product.template/139771/image_128/%5B100337%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix-mini%C2%AB%2C%20Size%200%2C%20G%201-8%2C%200.1%20-%203%20bar?unique=c52831a)
|
Type number: R 05-3 |
30.08 € | |
![[100338] RIEGLER Pressure regulator »multifix-mini«, Size 0, G 1/8, 0.2 - 6 bar](/web/image/product.template/139772/image_128/%5B100338%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix-mini%C2%AB%2C%20Size%200%2C%20G%201-8%2C%200.2%20-%206%20bar?unique=4daa067)
|
Type number: R 05-6 |
30.08 € | |
![[100339] RIEGLER Pressure regulator »multifix-mini«, Size 0, G 1/8, 0.5 - 10 bar](/web/image/product.template/139773/image_128/%5B100339%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBmultifix-mini%C2%AB%2C%20Size%200%2C%20G%201-8%2C%200.5%20-%2010%20bar?unique=1411246)
|
Type number: R 05-10 |
30.08 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100344] RIEGLER Mounting bracket with nut M30x1.5](/web/image/product.template/139778/image_128/%5B100344%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M30x1.5?unique=16512a1)
|
Type number: MV 30 |
5.03 € | |
![[100345] RIEGLER Control panel nut M30x1.5, for »multifix-mini« and »multifix«](/web/image/product.template/139779/image_128/%5B100345%5D%20RIEGLER%20Control%20panel%20nut%20M30x1.5%2C%20for%20%C2%BBmultifix-mini%C2%AB%20and%20%C2%BBmultifix%C2%AB?unique=e2a6bfe)
|
Type number: R 11-55 |
1.63 € | |
![[100346] RIEGLER Coupling package for blocking several components](/web/image/product.template/139780/image_128/%5B100346%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components?unique=ad7baf3)
|
Type number: KP 05 |
0.92 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101673] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 25 bar/360 psi](/web/image/product.template/169645/image_128/%5B101673%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2025%20bar-360%20psi?unique=1ce1772)
|
Type number: 110.48-KD |
6.10 € | |

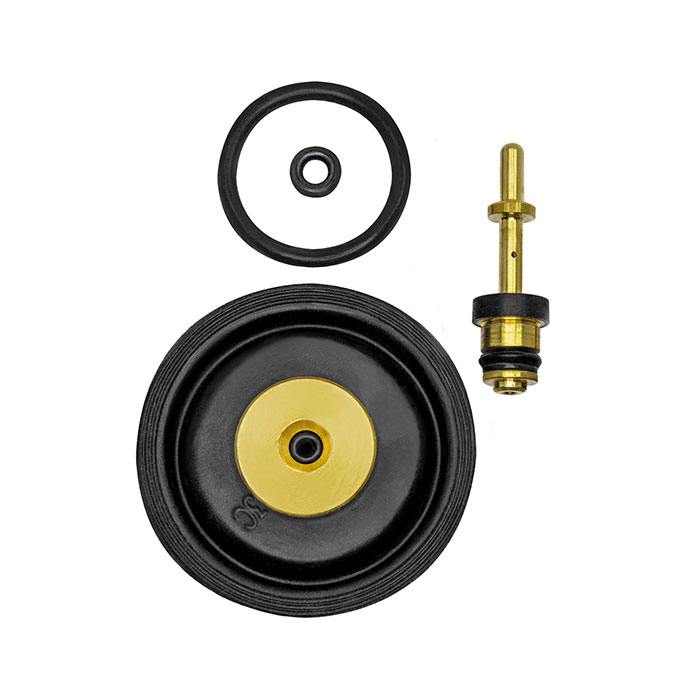

![[100347] RIEGLER Wear part set, for »multifix-mini«, Size 0, G 1/8 and G 1/4](/web/image/product.template/139781/image_128/%5B100347%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20%C2%BBmultifix-mini%C2%AB%2C%20Size%200%2C%20G%201-8%20and%20G%201-4?unique=a04760d)
|
