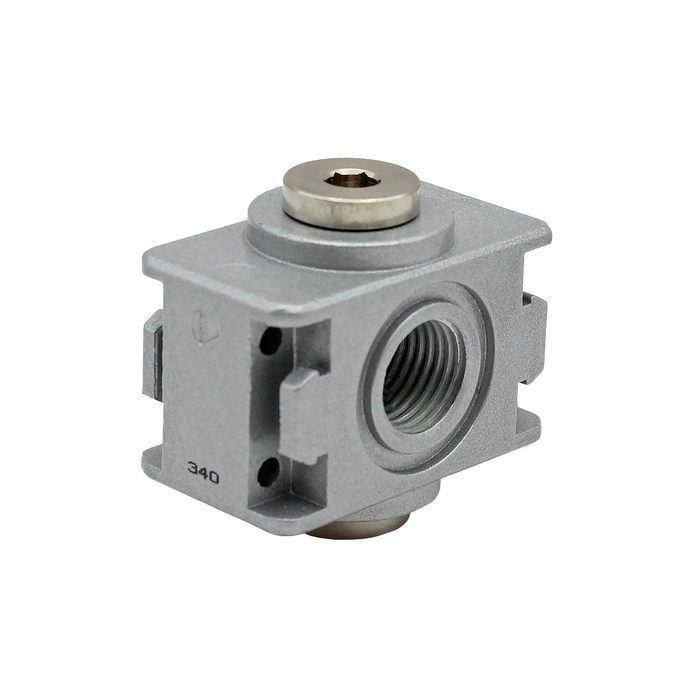

RIEGLER Distributor »multifix-mini«, Size 0, G 1/4, with 2 outlets G 1/8

https://www.filcom-technik.de/web/image/product.template/139836/image_1920?unique=cb6aea9

Type number: Z 06

12.85 € 12.85 EUR 12.85 € VAT Included

18.01 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

100402

EAN :

4047322174299

Category :

System Extensions

Weight :

0.16 kg

RIEGLER Manifold "multifix-mini" made of die-cast zinc, for compressed air preparation, G 1/4 - type Z 06

The RIEGLER manifold "multifix-mini", BG 0, G 1/4, with 2 outlets G 1/8 expands maintenance systems modularly with additional functions. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate value is P †' A 2700 l/min, P †' B and P †' C 1300 l/min (at P1= 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.

Field of application

Typical areas of application: Modular compressed air treatment lines.

Inlet pressure max. 16 bar
Housing Zinc die casting
Sealing material NBR
Flow rate measurement with P<sub>1 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar
Series multifix-mini
Medium temperature min. -10 °C
Medium temperature max. 60 °C
Ambient temperature min. -10 °C
Ambient temperature max. 60 °C
Thread G 1/4
Flow rate P †' A 2700 l/min, P †' B and P †' C 1300 l/min
BG 0
A 23 mm
B 36 mm
C 18 mm
D 18 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name PLUS
