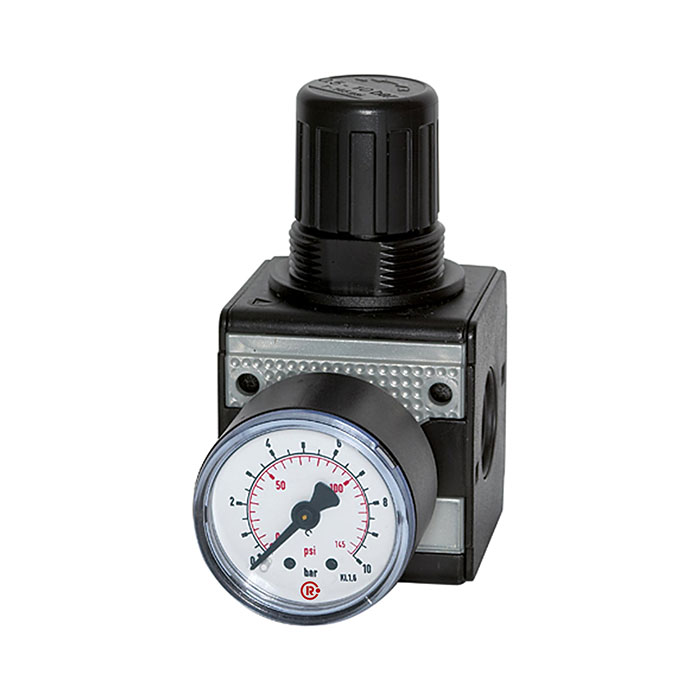

RIEGLER Precision pressure regulator »multifix«, Size 1, G 1/4, 0.2-6 bar
Type number: RP 11-6
EAN: 4047322165044
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Precision pressure regulator "multifix", incl. pressure gauge, BG 1, G 1/4, PE max. 16 bar, med. ambient temp. max. 60 °C, control range 0.2 - 6 bar
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Intrinsic air consumption max. | 2.6 l/min (depending on secondary pressure) |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2 </sub>= 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/4 |
| Flow rate | 2500 l/min |
| Control range min. | 0.2 bar |
| Control range max. | 6 bar |
| DN | 6 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 1 |
| A | 47.8 mm |
| B | 94.8 mm |
| C | 67 mm |
| D | 27.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | PLUS |
