RIEGLER Precision pressure regulator »multifix« Size 3, G 1/2, 0.5-10 bar
Type number: RP 33-10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Precision pressure regulator "multifix" made of die-cast zinc, for compressed air preparation - type RP 33-10
The RIEGLER precision pressure regulator "multifix", BG 3, G 1/2, 0.5 - 10 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 7600 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Intrinsic air consumption max. | 2.6 l/min (depending on secondary pressure) |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2 </sub>= 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1/2 |
| Flow rate | 7600 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| DN | 15 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 3 |
| A | 68.8 mm |
| B | 134.1 mm |
| C | 99 mm |
| D | 35.1 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100454] RIEGLER Precision pressure regulator »multifix«, Size 1, G 1/4, 0.1-3 bar](/web/image/product.template/139888/image_128/%5B100454%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.1-3%20bar?unique=0d8f9a1)
|
Type number: RP 11-3 |
67.21 € | |
![[100455] RIEGLER Precision pressure regulator »multifix«, Size 1, G 1/4, 0.2-6 bar](/web/image/product.template/139889/image_128/%5B100455%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.2-6%20bar?unique=4e7a344)
|
Type number: RP 11-6 |
67.21 € | |
![[100456] RIEGLER Precision pressure regulator »multifix« Size 1, G 1/4, 0.5-10 bar](/web/image/product.template/139890/image_128/%5B100456%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBmultifix%C2%AB%20Size%201%2C%20G%201-4%2C%200.5-10%20bar?unique=ab174a8)
|
Type number: RP 11-10 |
67.21 € | |
![[100457] RIEGLER Precision pressure regulator »multifix«, Size 3, G 1/2, 0.1-3 bar](/web/image/product.template/139891/image_128/%5B100457%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%200.1-3%20bar?unique=1655cc1)
|
Type number: RP 33-3 |
82.72 € | |

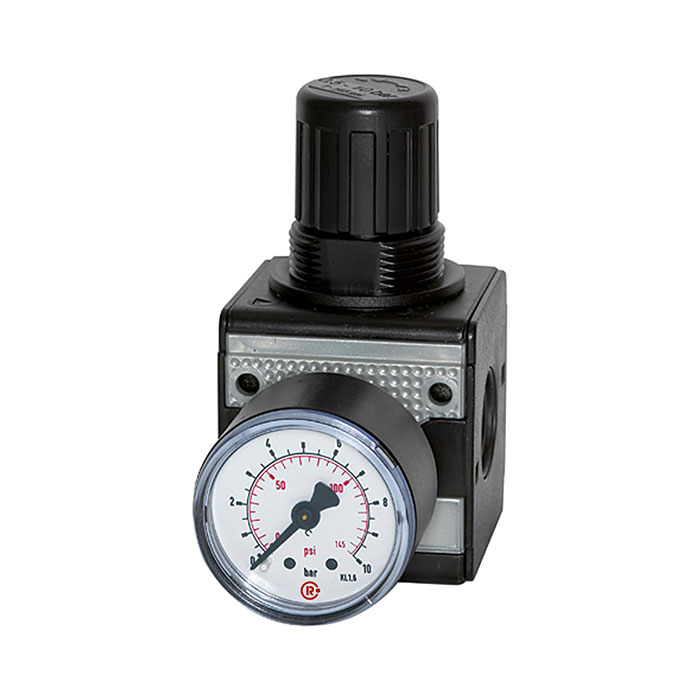

![[100458] RIEGLER Precision pressure regulator »multifix«, Size 3, G 1/2, 0.2-6 bar](/web/image/product.template/139892/image_128/%5B100458%5D%20RIEGLER%20Precision%20pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%200.2-6%20bar?unique=f7bb82a)
|
Type number: RP 33-6 |
82.72 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

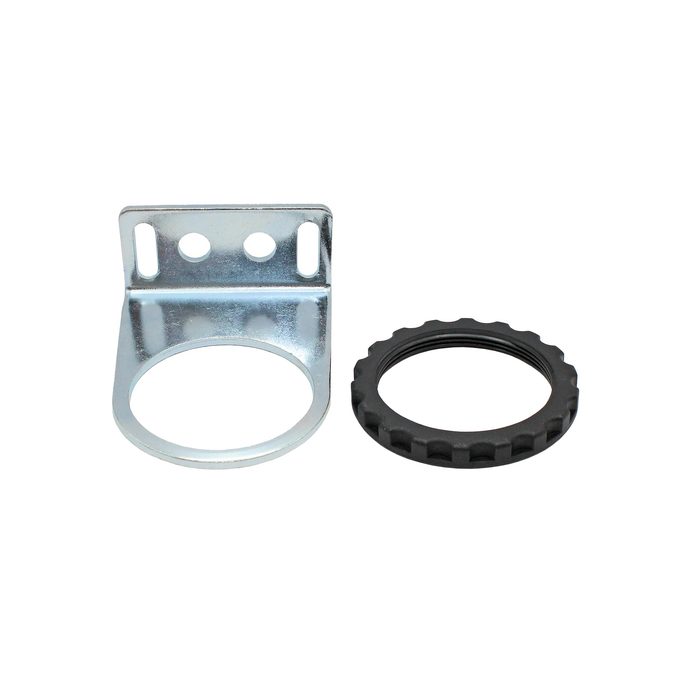

![[100439] RIEGLER Mounting bracket with nut M50x1.5, for »multifix«, Size 3](/web/image/product.template/139873/image_128/%5B100439%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M50x1.5%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203?unique=4661c72)
|
Type number: MV 50 |
5.20 € | |

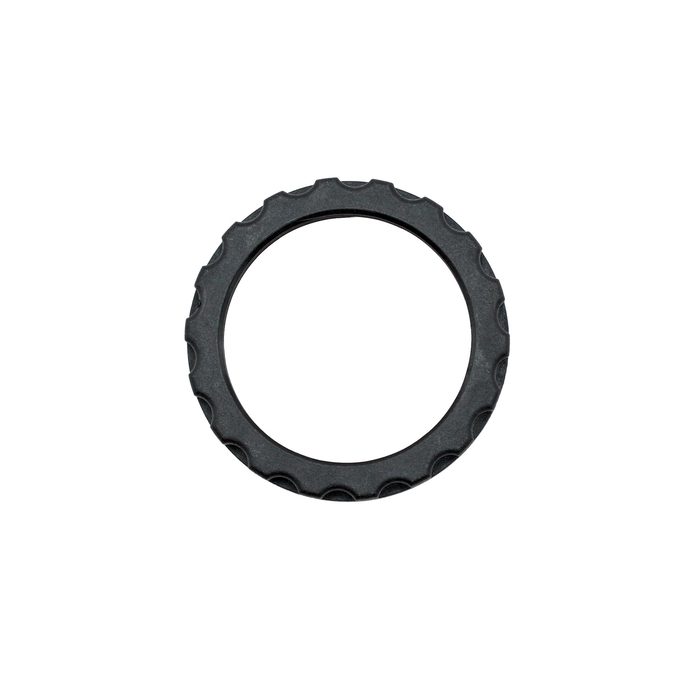

![[100440] RIEGLER Control panel nut M50x1.5, for »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139874/image_128/%5B100440%5D%20RIEGLER%20Control%20panel%20nut%20M50x1.5%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=a63b085)
|
Type number: R 33-55 |
1.80 € | |

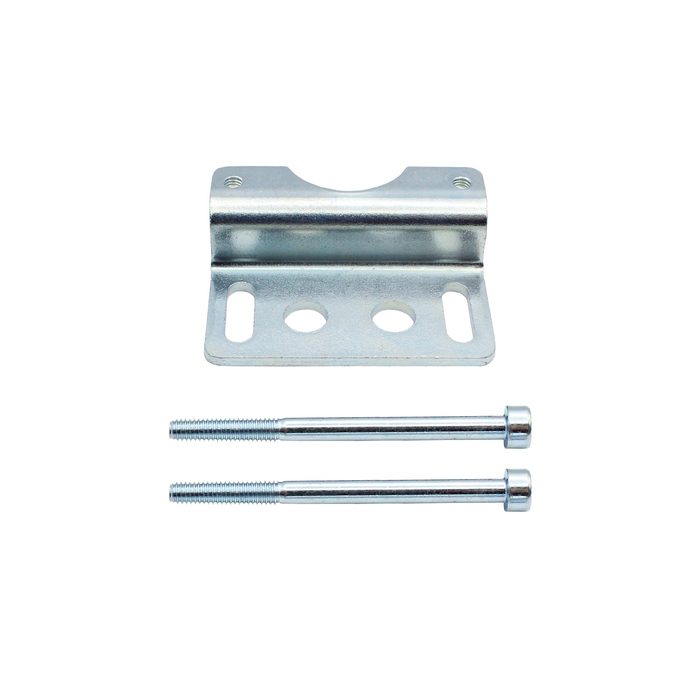

![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=5df67cc)
|
Type number: ZW 33 |
5.00 € | |

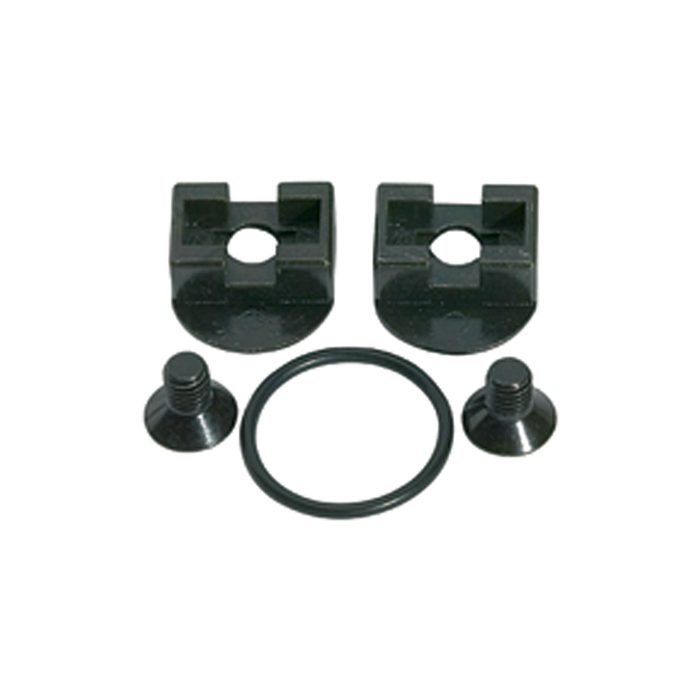

![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=bfbe213)
|
Type number: KP 33 |
2.01 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

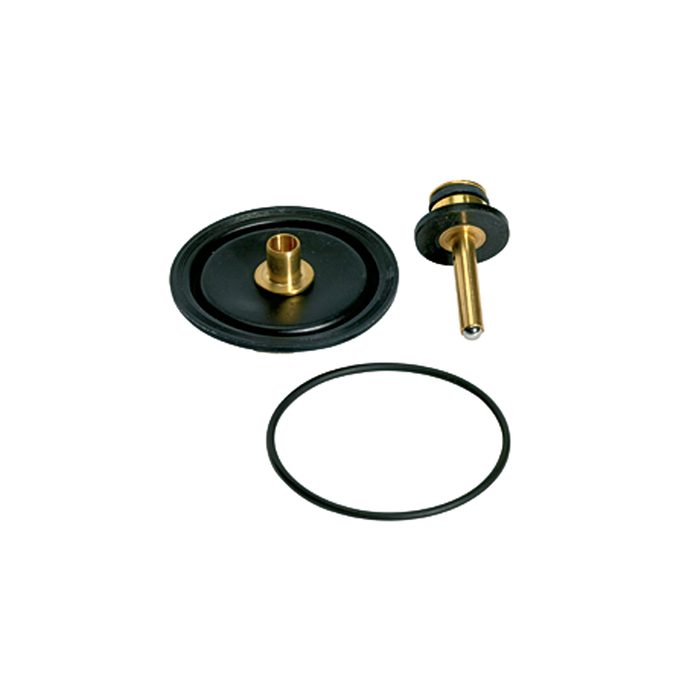

![[100461] RIEGLER Wear part set for precision pressure regulator »multifix«, Size 3](/web/image/product.template/139895/image_128/%5B100461%5D%20RIEGLER%20Wear%20part%20set%20for%20precision%20pressure%20regulator%20%C2%BBmultifix%C2%AB%2C%20Size%203?unique=b2922dc)
|
