RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 1, G 3/8
Type number: L 12 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "multifix" made of die-cast zinc, for compressed air treatment, G 3/8 - type L 12 S
The RIEGLER mist lubricator "multifix", with PC container and protective cage, BG 1, G 3/8 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 1900 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Polycarbonate container with protective cage. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/8 |
| Flow rate | 1900 l/min |
| DN | 10 |
| BG | 1 |
| A | 47.8 mm |
| B | 167.8 mm |
| C | 58 mm |
| D | 109.8 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

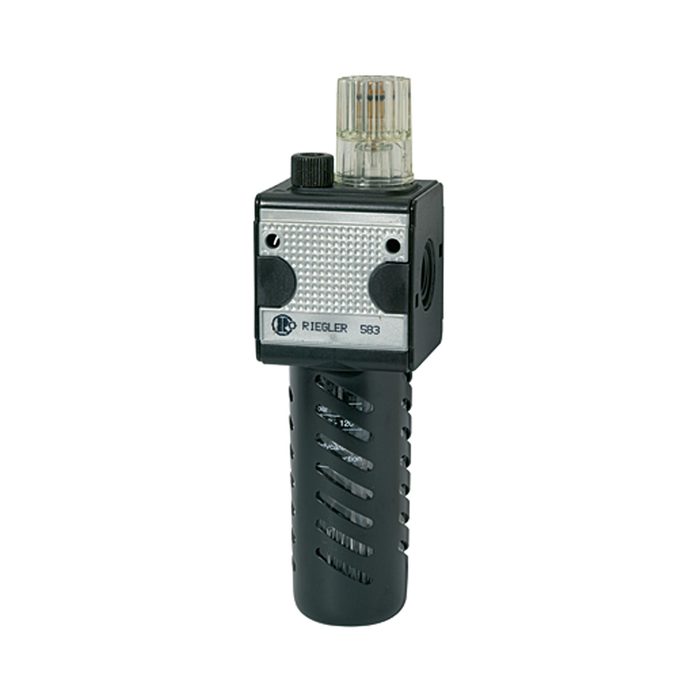

![[100556] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 1, G 1/4](/web/image/product.template/139991/image_128/%5B100556%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%201%2C%20G%201-4?unique=ce98cbe)
|
Type number: L 11 S |
40.64 € | |
![[100558] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 3, G 1/2](/web/image/product.template/139993/image_128/%5B100558%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%203%2C%20G%201-2?unique=8e8c2cd)
|
Type number: L 33 S |
60.40 € | |
![[100559] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 3, G 3/4](/web/image/product.template/139994/image_128/%5B100559%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%203%2C%20G%203-4?unique=c0ab731)
|
Type number: L 34 S |
60.40 € | |

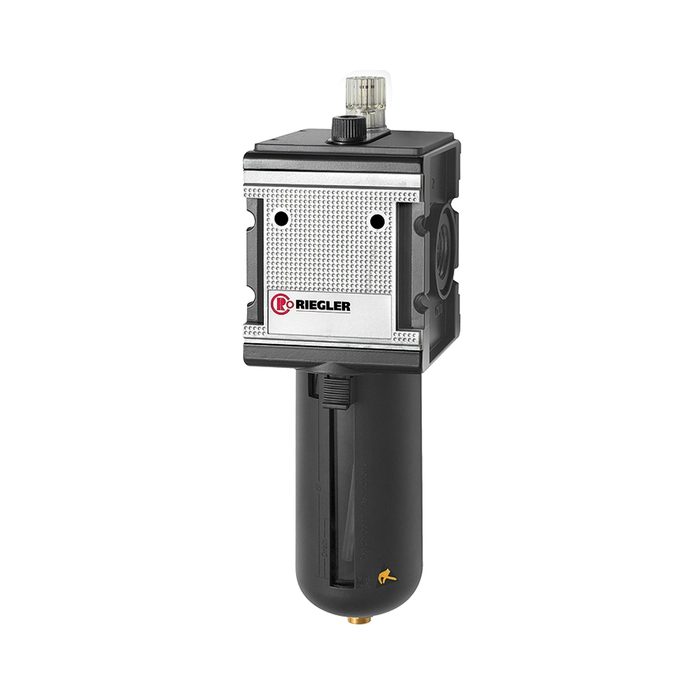

![[133120] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 4, G 1](/web/image/product.template/202770/image_128/%5B133120%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%204%2C%20G%201?unique=4486048)
|
