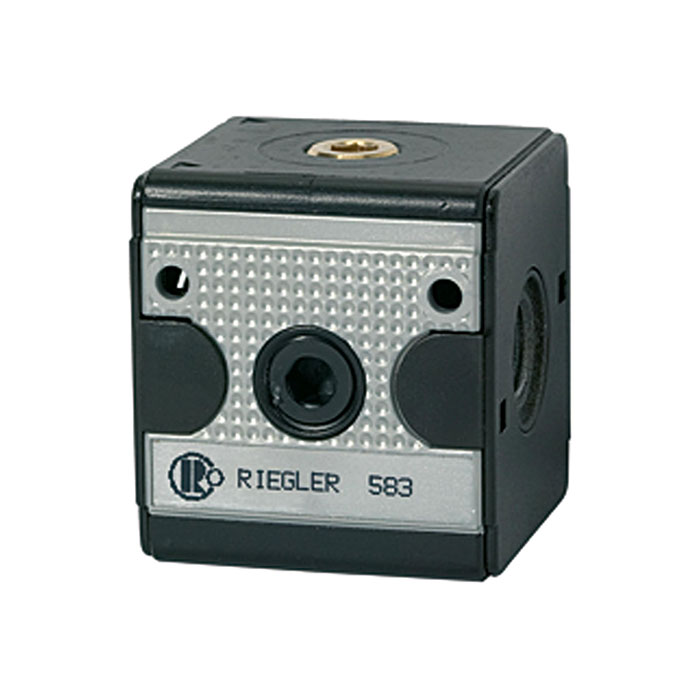

RIEGLER Distributor »multifix«, Wide design, Size 1, G 3/8, 4 outlets
Type number: T 12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Multifix" distributor made of die-cast zinc, for compressed air preparation, G 3/8 - type T 12
The RIEGLER manifold "multifix", wide version, BG 1, G 3/8, 4 outlets expands maintenance systems modularly with additional functions. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 2500 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| Series | multifix |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/8 |
| Flow rate | 2500 l/min |
| Departure | 4 x 1/4 |
| BG | 1 |
| A | 47.8 mm |
| B | 52 mm |
| C | 26 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100607] RIEGLER Distributor »multifix«, Wide design, Size 1, G 1/4, 4 outlets](/web/image/product.template/140042/image_128/%5B100607%5D%20RIEGLER%20Distributor%20%C2%BBmultifix%C2%AB%2C%20Wide%20design%2C%20Size%201%2C%20G%201-4%2C%204%20outlets?unique=26ed36b)
|
Type number: T 11 |
23.98 € | |
![[100609] RIEGLER Distributor »multifix«, Wide design, Size 3, G 1/2, 4 outlets](/web/image/product.template/140044/image_128/%5B100609%5D%20RIEGLER%20Distributor%20%C2%BBmultifix%C2%AB%2C%20Wide%20design%2C%20Size%203%2C%20G%201-2%2C%204%20outlets?unique=0272462)
|
Type number: T 33 |
30.59 € | |
![[100610] RIEGLER Distributor »multifix«, Wide design, Size 3, G 3/4, 4 outlets](/web/image/product.template/140045/image_128/%5B100610%5D%20RIEGLER%20Distributor%20%C2%BBmultifix%C2%AB%2C%20Wide%20design%2C%20Size%203%2C%20G%203-4%2C%204%20outlets?unique=b228b81)
|
Type number: T 34 |
30.59 € | |

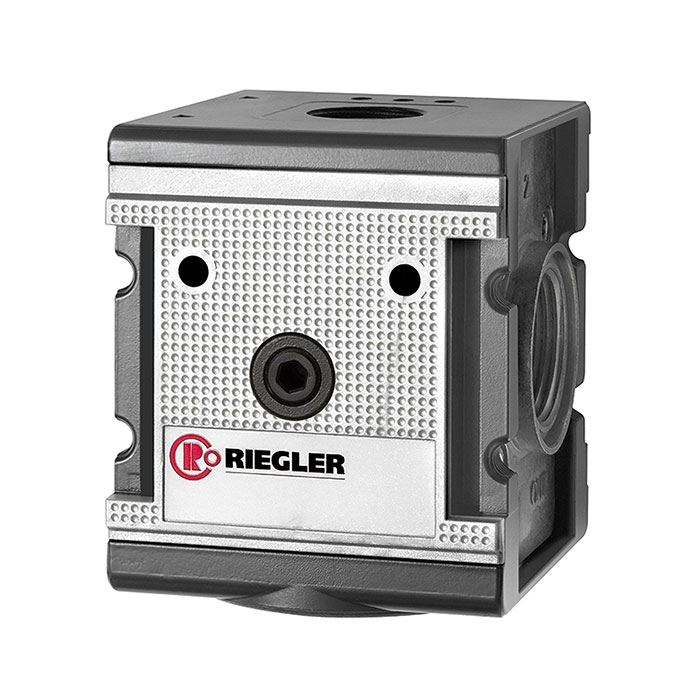

![[133132] RIEGLER Distributor »multifix«, Wide design, Size 4, G 1, 4 outlets](/web/image/product.template/202782/image_128/%5B133132%5D%20RIEGLER%20Distributor%20%C2%BBmultifix%C2%AB%2C%20Wide%20design%2C%20Size%204%2C%20G%201%2C%204%20outlets?unique=2f60cb9)
|
Type number: T 45 |
87.22 € | |
![[133131] RIEGLER Distributor »multifix«, Wide design, Size 4, G 3/4, 4 outlets](/web/image/product.template/202781/image_128/%5B133131%5D%20RIEGLER%20Distributor%20%C2%BBmultifix%C2%AB%2C%20Wide%20design%2C%20Size%204%2C%20G%203-4%2C%204%20outlets?unique=4c334be)
|
Type number: T 44 |
87.22 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

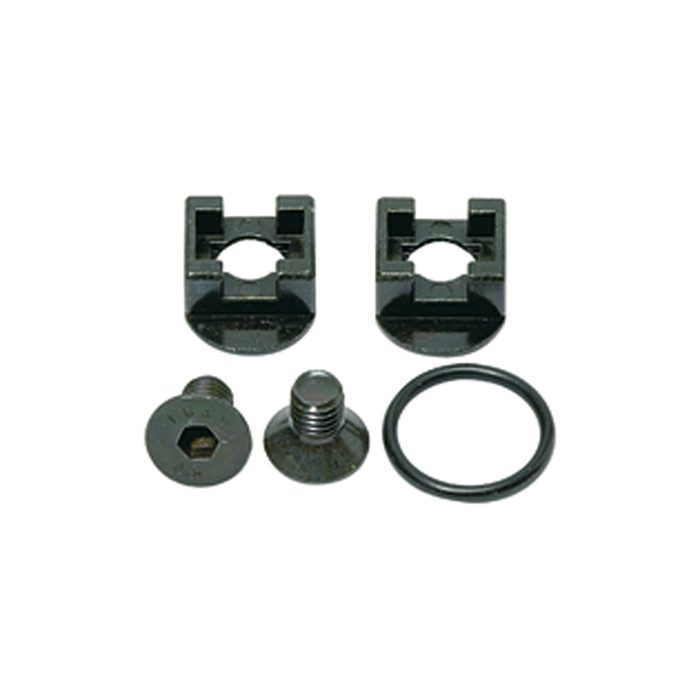

![[100436] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139870/image_128/%5B100436%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=4030941)
|
