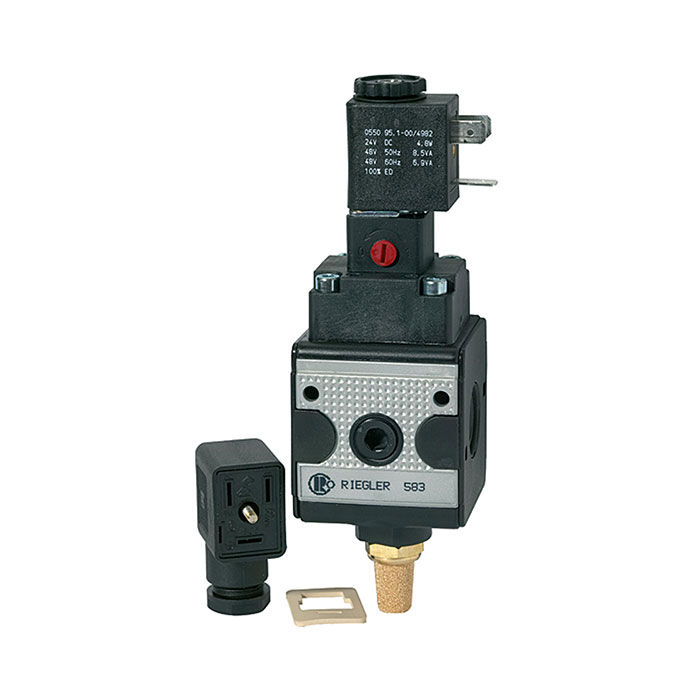

RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V DC, Size 3, G 1/2
Type number: S 33-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Switching valve (3/2-way valve) "multifix" made of die-cast zinc, for compressed air preparation - type S 33-4
The RIEGLER switching valve (3/2-way valve) "multifix", 24 V DC, BG 3, G 1/2 adds additional modular functions to maintenance systems. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 10 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 3150 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Protection class IP 65 (P 54) in accordance with DIN 40050. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 10 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Duty cycle | 1 |
| Protection class | IP 65 (P 54) according to DIN 40050 |
| Electrical connection | Cable plug PG 9, form B, EN 175301-803 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 3150 l/min |
| Solenoid coil | 24 V DC |
| BG | 3 |
| A | 68.8 mm |
| B | 185 mm |
| C | 56.2 mm |
| D | 33.5 mm |
| E | 44.1 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 1/4 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

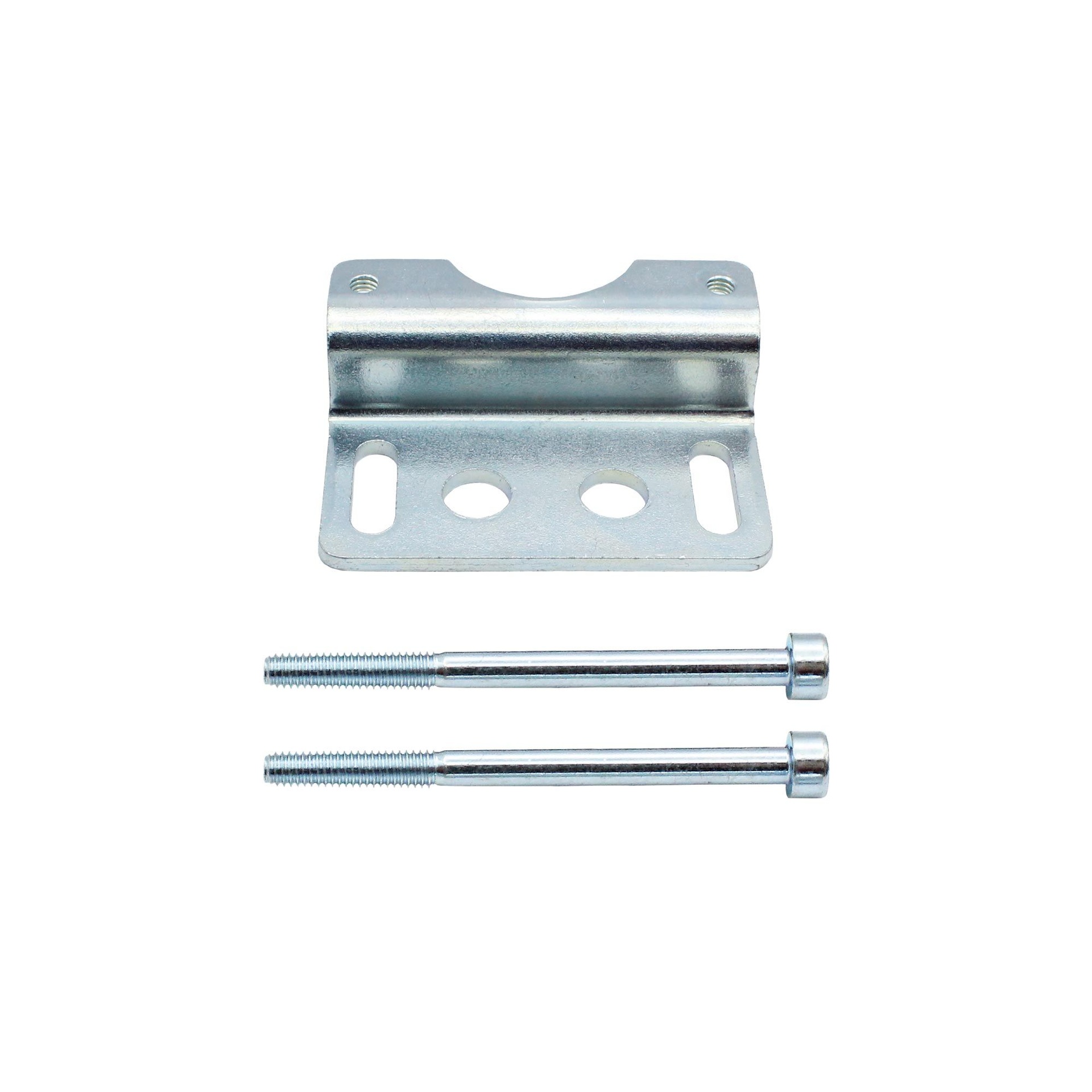

![[100441] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 3, G 1/2, G 3/4](/web/image/product.template/139875/image_128/%5B100441%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%203%2C%20G%201-2%2C%20G%203-4?unique=b7df586)
|
Type number: ZW 33 |
5.00 € | |
![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=5ca313e)
|
Type number: KP 33 |
2.01 € | |

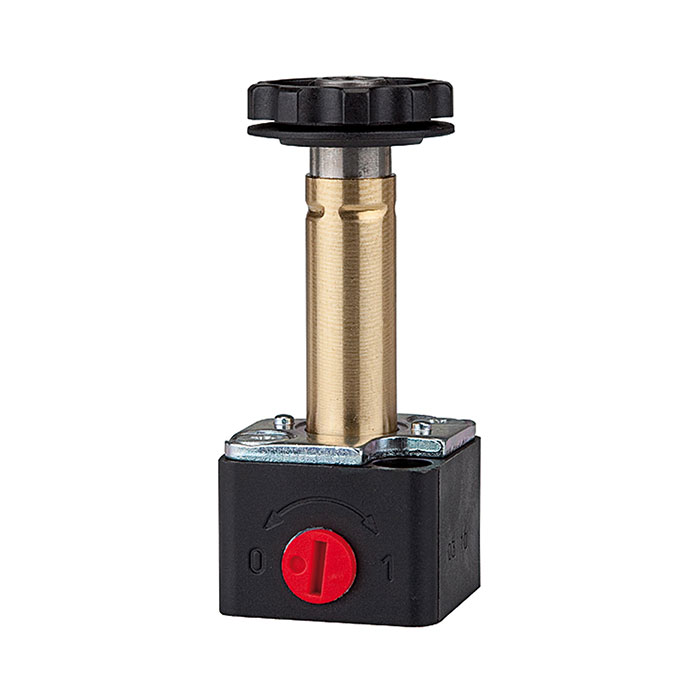

![[100625] RIEGLER 3/2-way valve for pre-control with manual actuation](/web/image/product.template/140060/image_128/%5B100625%5D%20RIEGLER%203-2-way%20valve%20for%20pre-control%20with%20manual%20actuation?unique=57e14ba)
|
Type number: S 11-38N |
44.45 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

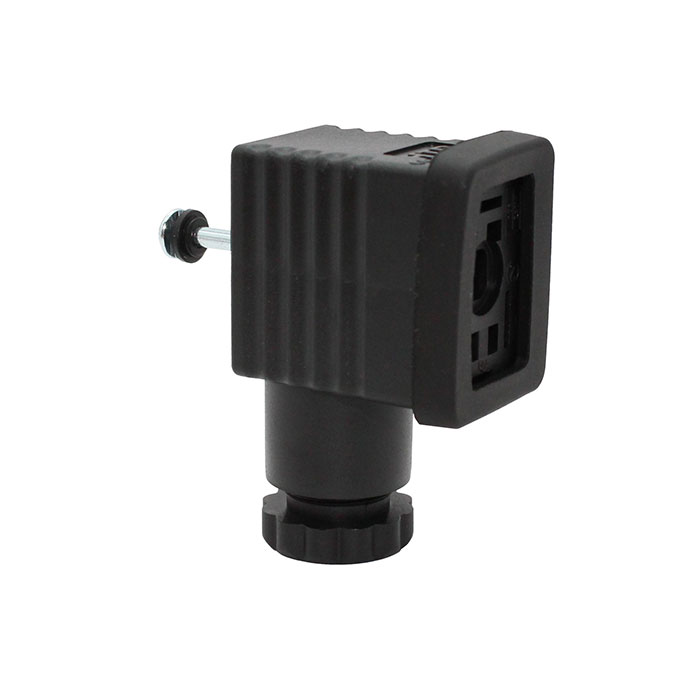

![[100409] RIEGLER Equipment plug B shape acc. to EN175301-803, Cable connection PG9](/web/image/product.template/139843/image_128/%5B100409%5D%20RIEGLER%20Equipment%20plug%20B%20shape%20acc.%20to%20EN175301-803%2C%20Cable%20connection%20PG9?unique=16b7a76)
|
