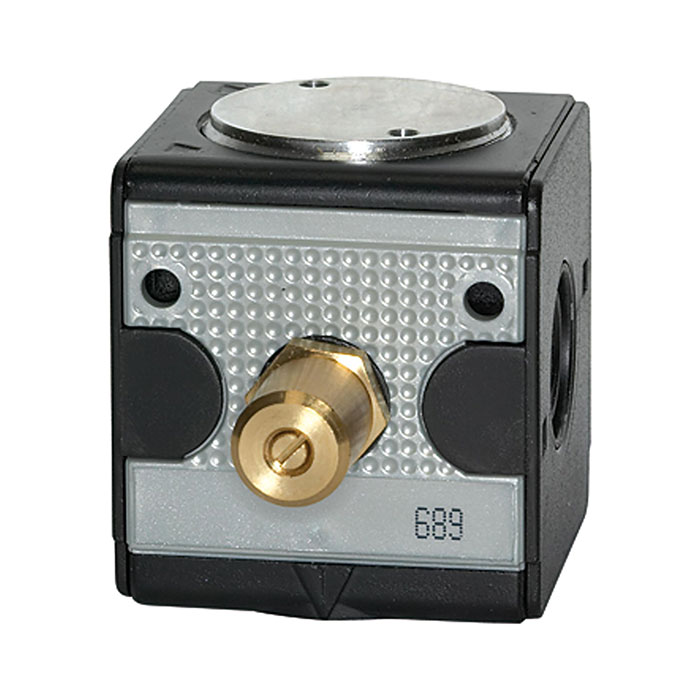

RIEGLER Start up valve »multifix« with adjustable throttle, Size 3, G 1/2
Type number: A 33 F
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Start-up valve "multifix" made of die-cast zinc, for compressed air preparation, G 1/2 - type A 33 F
The RIEGLER start-up valve "multifix", with adjustable throttle, BG 3, G 1/2 expands maintenance systems modularly with additional functions. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 3500 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 3500 l/min |
| BG | 3 |
| A | 68.8 mm |
| B | 71.6 mm |
| D | 35.1 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b-I |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100626] RIEGLER Start up valve »multifix« with adjustable throttle, Size 1, G 1/4](/web/image/product.template/140061/image_128/%5B100626%5D%20RIEGLER%20Start%20up%20valve%20%C2%BBmultifix%C2%AB%20with%20adjustable%20throttle%2C%20Size%201%2C%20G%201-4?unique=336eb5a)
|
Type number: A 11 F |
43.95 € | |
![[133144] RIEGLER Start up valve »multifix«, with adjustable throttle, Size 4, G 1](/web/image/product.template/202794/image_128/%5B133144%5D%20RIEGLER%20Start%20up%20valve%20%C2%BBmultifix%C2%AB%2C%20with%20adjustable%20throttle%2C%20Size%204%2C%20G%201?unique=a3b0469)
|
Type number: A 45 F |
139.37 € | |

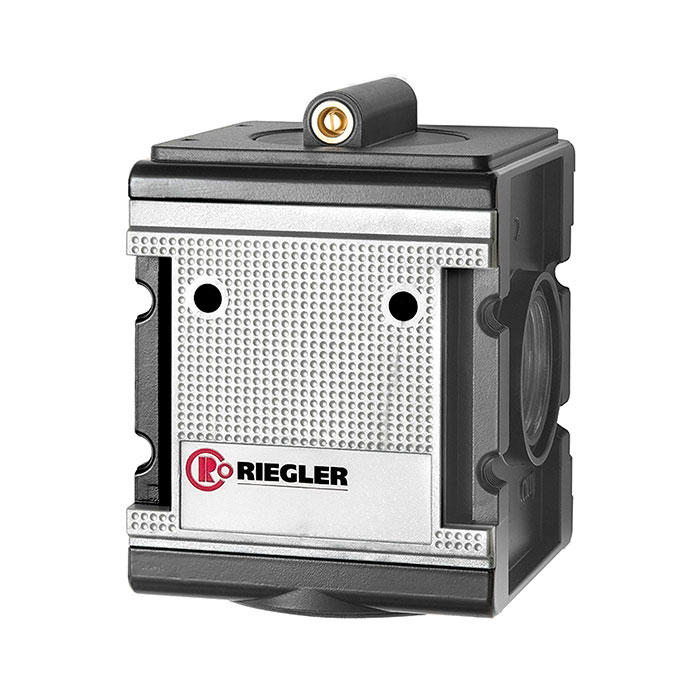

![[133143] RIEGLER Start up valve »multifix« with adjustable throttle, Size 4, G 3/4](/web/image/product.template/202793/image_128/%5B133143%5D%20RIEGLER%20Start%20up%20valve%20%C2%BBmultifix%C2%AB%20with%20adjustable%20throttle%2C%20Size%204%2C%20G%203-4?unique=cb2286e)
|
Type number: A 44 F |
139.37 € | |

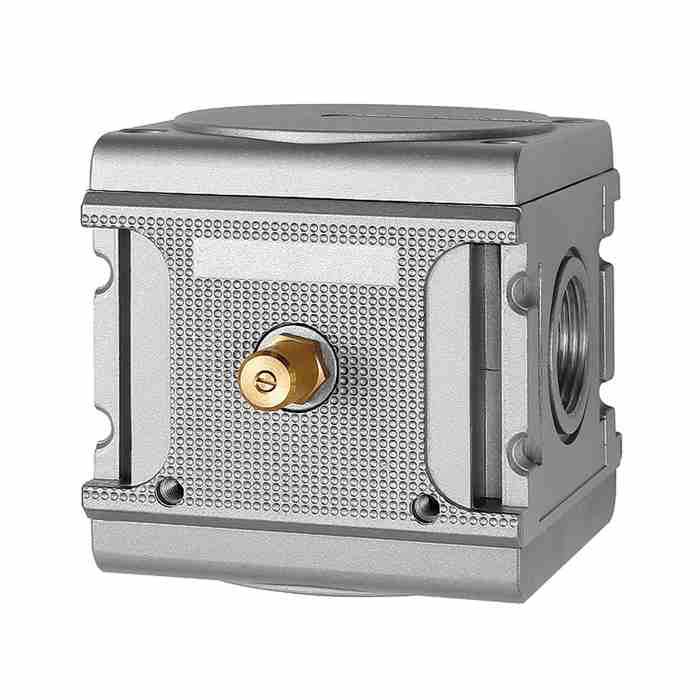

![[100629] RIEGLER Start up valve »multifix«, with adjustable throttle, Size 5, G 1](/web/image/product.template/140064/image_128/%5B100629%5D%20RIEGLER%20Start%20up%20valve%20%C2%BBmultifix%C2%AB%2C%20with%20adjustable%20throttle%2C%20Size%205%2C%20G%201?unique=2903eb4)
|
Type number: A 55 F |
165.60 € | |
![[100628] RIEGLER Start up valve »multifix« with adjustable throttle, Size 5, G 3/4](/web/image/product.template/140063/image_128/%5B100628%5D%20RIEGLER%20Start%20up%20valve%20%C2%BBmultifix%C2%AB%20with%20adjustable%20throttle%2C%20Size%205%2C%20G%203-4?unique=885169b)
|
Type number: A 54 F |
165.60 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

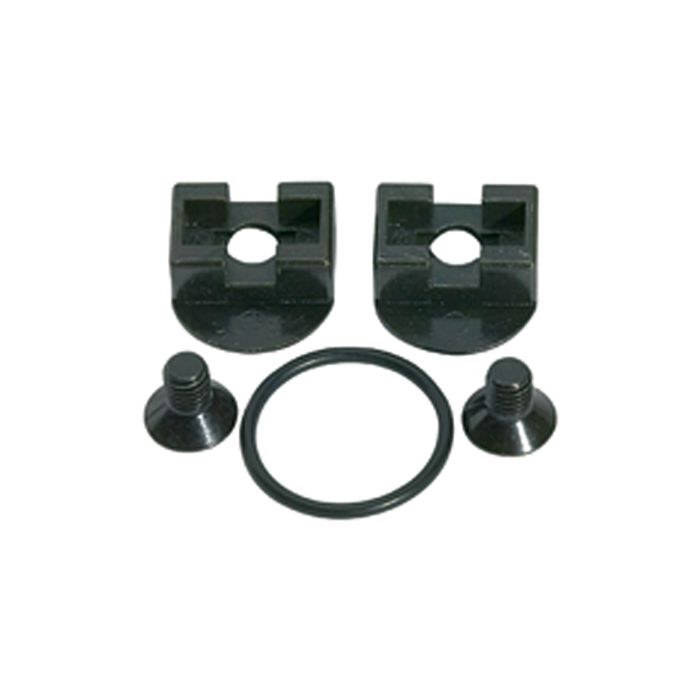

![[100442] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139876/image_128/%5B100442%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=5ca313e)
|
