RIEGLER Mist oiler »variobloc« with PC container, Size 2, G 1
Type number: VN 26
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "variobloc" made of die-cast zinc, for compressed air treatment, G 1 - type VN 26
The RIEGLER mist lubricator "variobloc", with polycarbonate container, BG 2, G 1 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. Connection thread G 1 - suitable for common industry standards. The flow rate is 7500 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Tank made of polycarbonate container. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Thread | G 1 |
| Flow rate | 7500 l/min |
| BG | 2 |
| A | 124 mm |
| B | 224 mm |
| C | 57 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100703] RIEGLER Mist oiler »variobloc« with PC container, Size 1, G 1/4](/web/image/product.template/140139/image_128/%5B100703%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%201-4?unique=370b979)
|
Type number: VN 22 |
60.30 € | |
![[100704] RIEGLER Mist oiler »variobloc« with PC container, Size 1, G 3/8](/web/image/product.template/140140/image_128/%5B100704%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%201%2C%20G%203-8?unique=23064b7)
|
Type number: VN 23 |
31.74 € | |

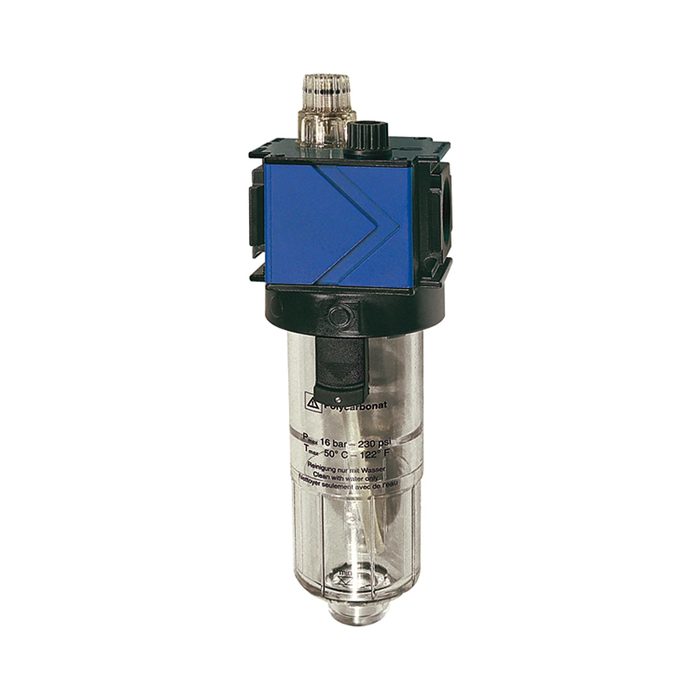

![[100705] RIEGLER Mist oiler »variobloc« with PC container, Size 2, G 1/2](/web/image/product.template/140141/image_128/%5B100705%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20PC%20container%2C%20Size%202%2C%20G%201-2?unique=f910370)
|
