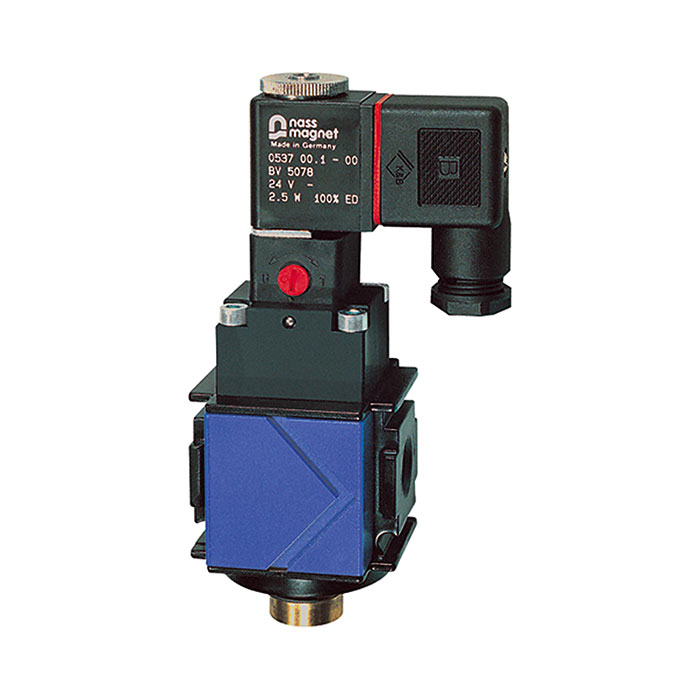

RIEGLER Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 1, G 3/8
Type number: VS 23
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Switching valve (3/2-way valve) "variobloc" for compressed air preparation, max. 10 bar, G 3/8 - type VS 23
The RIEGLER switching valve (3/2-way valve) "variobloc", 24 V DC, BG 1, G 3/8 expands maintenance systems modularly with additional functions. The operating pressure range is 3 bar to 10 bar. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 2600 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Operating voltage 24 V DC, protection class IP 65 to DIN 40050. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Protection class | IP 65 according to DIN 40050 |
| Electrical connection | Cable plug PG 9, form B, EN 175301-803 |
| Operating voltage | 24 V DC |
| Working pressure min. | 3 bar |
| Working pressure max. | 10 bar |
| Thread | G 3/8 |
| Flow rate | 2600 l/min |
| BG | 1 |
| A | 48 mm |
| B | 147 mm |
| C | 108 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Class name | PLUS |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

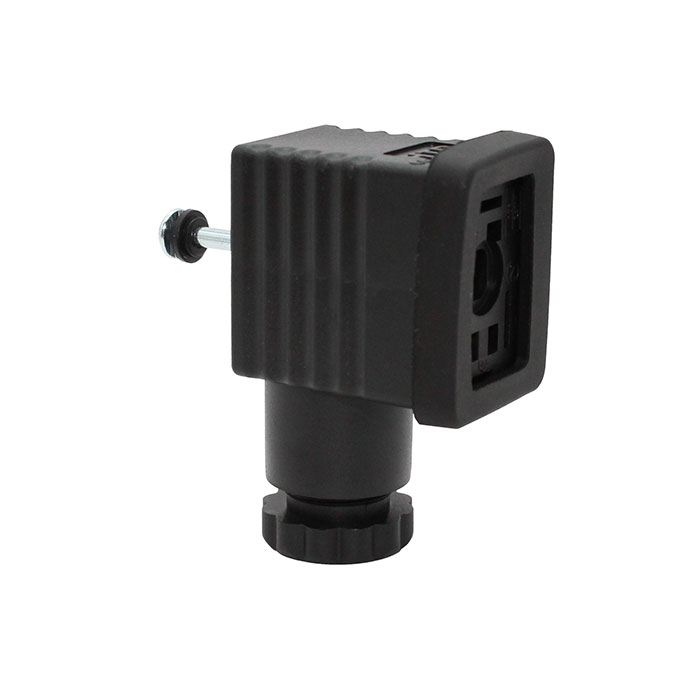

![[100409] RIEGLER Equipment plug B shape acc. to EN175301-803, Cable connection PG9](/web/image/product.template/139843/image_128/%5B100409%5D%20RIEGLER%20Equipment%20plug%20B%20shape%20acc.%20to%20EN175301-803%2C%20Cable%20connection%20PG9?unique=ce6ce94)
|
Type number: 1920.9B |
6.87 € | |
