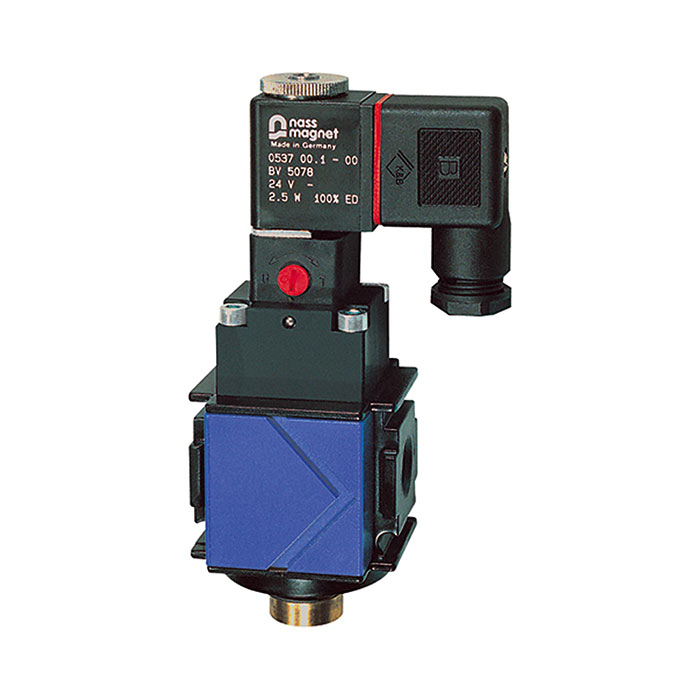

RIEGLER Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 2, G 3/4
Type number: VS 25
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Switching valve (3/2-way valve) "variobloc" for compressed air preparation, max. 10 bar, G 3/4 - type VS 25
The RIEGLER switching valve (3/2-way valve) "variobloc", 24 V DC, BG 2, G 3/4 expands maintenance systems modularly with additional functions. The operating pressure range is 3 bar to 10 bar. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 3800 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Operating voltage 24 V DC, protection class IP 65 to DIN 40050. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Protection class | IP 65 according to DIN 40050 |
| Electrical connection | Cable plug PG 9, form B, EN 175301-803 |
| Operating voltage | 24 V DC |
| Working pressure min. | 3 bar |
| Working pressure max. | 10 bar |
| Thread | G 3/4 |
| Flow rate | 3800 l/min |
| BG | 2 |
| A | 70 mm |
| B | 157 mm |
| C | 113 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Class name | PLUS |
