RIEGLER Constant pressure regulator, Size 1, G 3/8, 0.5 - 16 bar
Type number: 737.314
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Constant pressure regulator incl. pressure gauge, BG 1, G 3/8, PE max. 25 bar, medium temperature max. 90 °C, control range 0.5 - 16 bar
| Inlet pressure max. | 25 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | other |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| Thread | G 3/8 |
| Flow rate | 1600 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 16 bar |
| DN | 10 |
| BG | 1 |
| A | 70 mm |
| B | 165 mm |
| C | 33 mm |
| D | 132 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

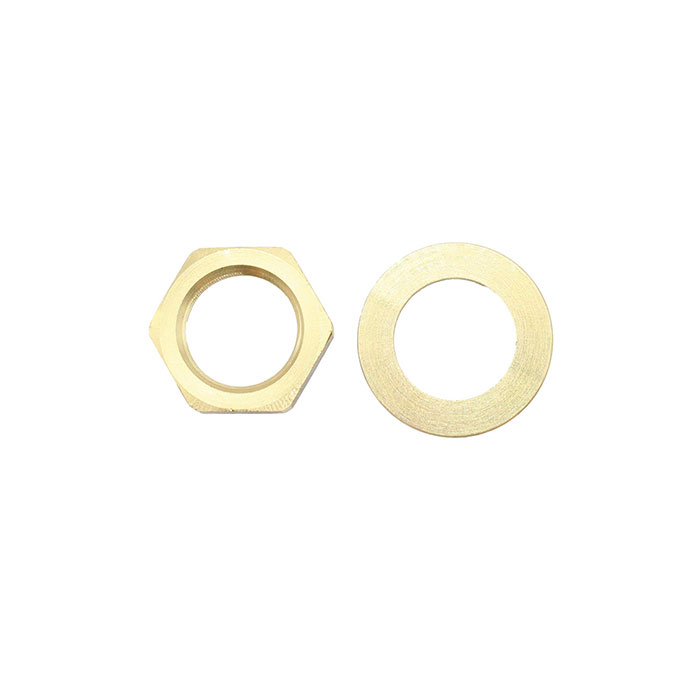

![[100831] RIEGLER Nut M20x1.5 and washer, for series »Standard«](/web/image/product.template/140267/image_128/%5B100831%5D%20RIEGLER%20Nut%20M20x1.5%20and%20washer%2C%20for%20series%20%C2%BBStandard%C2%AB?unique=09b59c5)
|
Type number: 74/1 |
2.43 € | |
![[100836] RIEGLER Mounting bracket with nut and washer](/web/image/product.template/140272/image_128/%5B100836%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20and%20washer?unique=7e09bea)
|
Type number: 75/2 |
8.29 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

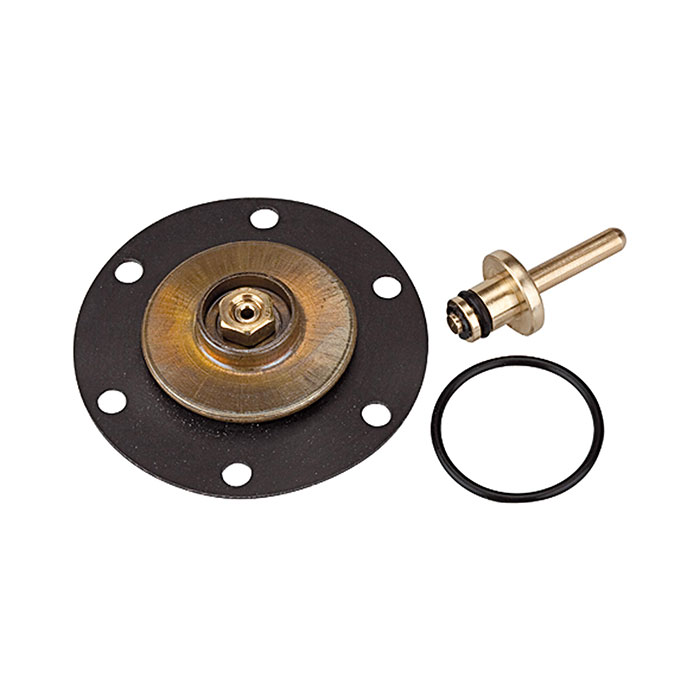

![[100905] RIEGLER Wear part set, for constant pressure regulator, Size 1](/web/image/product.template/140342/image_128/%5B100905%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20constant%20pressure%20regulator%2C%20Size%201?unique=6ef95fc)
|
Type number: 22.733.4 |
26.43 € | |
