TIVAL Pressure switch FF 4-32 DRH 2 - 32 bar 3/8" silumin, Handreset max.
max. operating pressure 52 bar
Upper switching point: adjustable 2 - 32 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-32 DRH pressure switch 2 - 32 bar - with manual reset function | Art. 1010057
The TIVAL Manual reset pressure switch with Perbunan diaphragm combines reliability and accuracy for industrial pressure monitoring. Connection: G 3/8" silumin - robust design in matching material variant. Application range: Oil, water & air - with proven long-term stability. max. operating pressure: 52 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 2 ... 32 |
| Max. Operating pressure (bar) | 52 |
| Max. Test pressure (bar) | 64 |
| Factory setting (bar) | 20 |
| Pressure connection | G 3/8" Silumin, manual reset max. |
| Switch-back differential approx. (bar) | 4,0 |
| Model range - Pressure switch | FF 4 / DRH |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[1030146] TIVAL Pressure switch FF 4-32 AC DAH 2 - 32 bar 3/8" silumin](/web/image/product.template/149376/image_128/%5B1030146%5D%20TIVAL%20Pressure%20switch%20FF%204-32%20AC%20DAH%202%20-%2032%20bar%203-8%22%20silumin?unique=d97cf59)
|
max. operating pressure 52 bar |
325.96 € | |
![[1010076] TIVAL Pressure switch FF 4-32 DAH 2-32 bar 3/8" silumin](/web/image/product.template/149331/image_128/%5B1010076%5D%20TIVAL%20Pressure%20switch%20FF%204-32%20DAH%202-32%20bar%203-8%22%20silumin?unique=6f15f9e)
|
max. operating pressure 52 bar |
121.95 € | |
![[1010003] TIVAL pressure switch FF 4-32 DAH G 2 - 32 bar 3/8" Silumin, gold-plated contacts Contacts](/web/image/product.template/149351/image_128/%5B1010003%5D%20TIVAL%20pressure%20switch%20FF%204-32%20DAH%20G%202%20-%2032%20bar%203-8%22%20Silumin%2C%20gold-plated%20contacts%20Contacts?unique=49ec79d)
|
[1010003] TIVAL pressure switch FF 4-32 DAH G 2 - 32 bar 3/8" Silumin, gold-plated contacts Contacts
max. operating pressure 52 bar |
144.80 € | |
![[1010026] TIVAL Pressure switch FF 4-32 GL DAH 2 - 32 bar / 16A - 230 VAC 3/8" silumin](/web/image/product.template/149317/image_128/%5B1010026%5D%20TIVAL%20Pressure%20switch%20FF%204-32%20GL%20DAH%202%20-%2032%20bar%20-%2016A%20-%20230%20VAC%203-8%22%20silumin?unique=9283706)
|
max. operating pressure 52 bar |
153.46 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[1011001] TIVAL Cover for Pressure switch FF 4](/web/image/product.template/149371/image_128/%5B1011001%5D%20TIVAL%20Cover%20for%20Pressure%20switch%20FF%204?unique=4f73d7f)
|
TIVAL hood FF4 |
29.87 € | |
![[1011002] TIVAL Throttle for FF4-2 up to 32 bar](/web/image/product.template/149318/image_128/%5B1011002%5D%20TIVAL%20Throttle%20for%20FF4-2%20up%20to%2032%20bar?unique=4f73d7f)
|
TIVAL throttle FF4-2....32 |
4.19 € | |
![[1011003] TIVAL Throttle for series FF4-60 up to 250](/web/image/product.template/149367/image_128/%5B1011003%5D%20TIVAL%20Throttle%20for%20series%20FF4-60%20up%20to%20250?unique=4f73d7f)
|
TIVAL throttle FF4-12....250 |
10.35 € | |

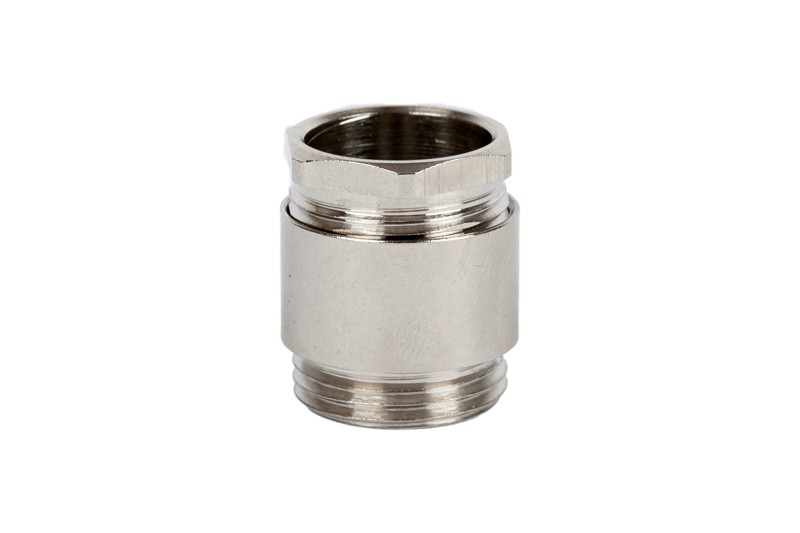

![[1011004] TIVAL Fitting FF 4 490 M 20 13](/web/image/product.template/149369/image_128/%5B1011004%5D%20TIVAL%20Fitting%20FF%204%20490%20M%2020%2013?unique=4f73d7f)
|
