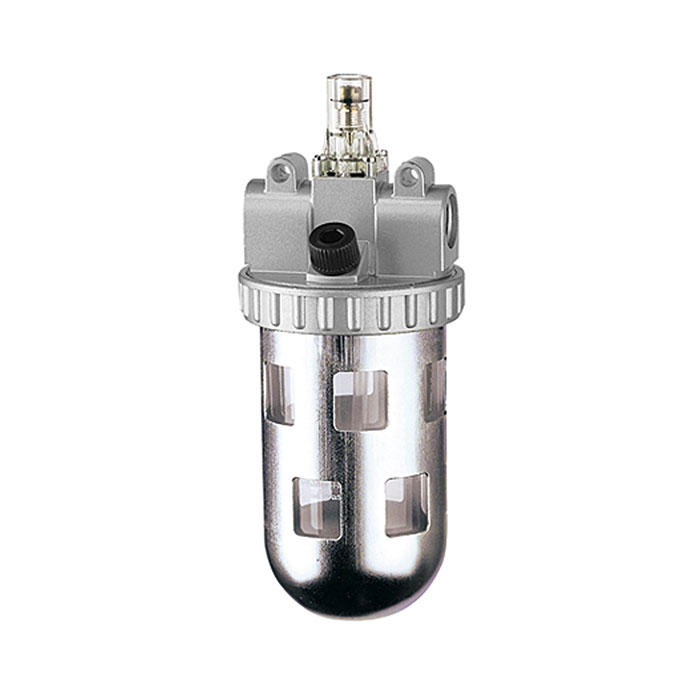

RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 1, G 1/4
Type number: 745 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Mist lubricator "Standard" with polycarbonate tank and protective cage, BG 1, G 1/4, PE max. 16 bar, ambient medium temp. max. 60 °C
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 1200 l/min |
| DN | 6 |
| BG | 1 |
| A | 50 mm |
| C | 51 mm |
| D | 118 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101023] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 1, G 3/8](/web/image/product.template/140459/image_128/%5B101023%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%201%2C%20G%203-8?unique=b7e807c)
|
Type number: 748 S |
39.04 € | |
![[101024] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 2, G 3/8](/web/image/product.template/140460/image_128/%5B101024%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%202%2C%20G%203-8?unique=2fb7c84)
|
Type number: 750 S |
63.46 € | |
![[101027] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 3, G 1](/web/image/product.template/140463/image_128/%5B101027%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%203%2C%20G%201?unique=f98be35)
|
Type number: 762 S |
104.68 € | |
![[101025] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 3, G 1/2](/web/image/product.template/140461/image_128/%5B101025%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%203%2C%20G%201-2?unique=6791395)
|
Type number: 760 S |
63.46 € | |
![[101026] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 3, G 3/4](/web/image/product.template/140462/image_128/%5B101026%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%203%2C%20G%203-4?unique=5b9e833)
|
Type number: 761 S |
104.68 € | |
![[101029] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 4, G 1 1/2](/web/image/product.template/140465/image_128/%5B101029%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%204%2C%20G%201%201-2?unique=b92d300)
|
Type number: 764 S |
191.65 € | |

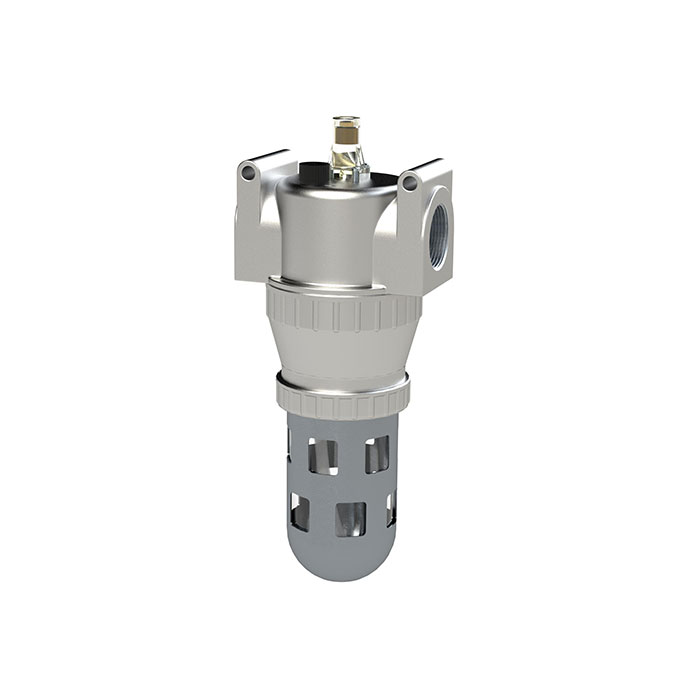

![[101028] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 4, G 1 1/4](/web/image/product.template/140464/image_128/%5B101028%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%204%2C%20G%201%201-4?unique=072d4b8)
|
Type number: 763 S |
191.65 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=f58d385)
|
Type number: 32 |
34.09 € | |
![[100795] RIEGLER Drip cap metal](/web/image/product.template/140231/image_128/%5B100795%5D%20RIEGLER%20Drip%20cap%20metal?unique=7f4da5a)
|
Type number: 760.7.992 |
31.57 € | |
![[100796] RIEGLER Adapter for mounting metal drip cap](/web/image/product.template/140232/image_128/%5B100796%5D%20RIEGLER%20Adapter%20for%20mounting%20metal%20drip%20cap?unique=5ad05c1)
|
Type number: 760.7.1135 |
10.95 € | |

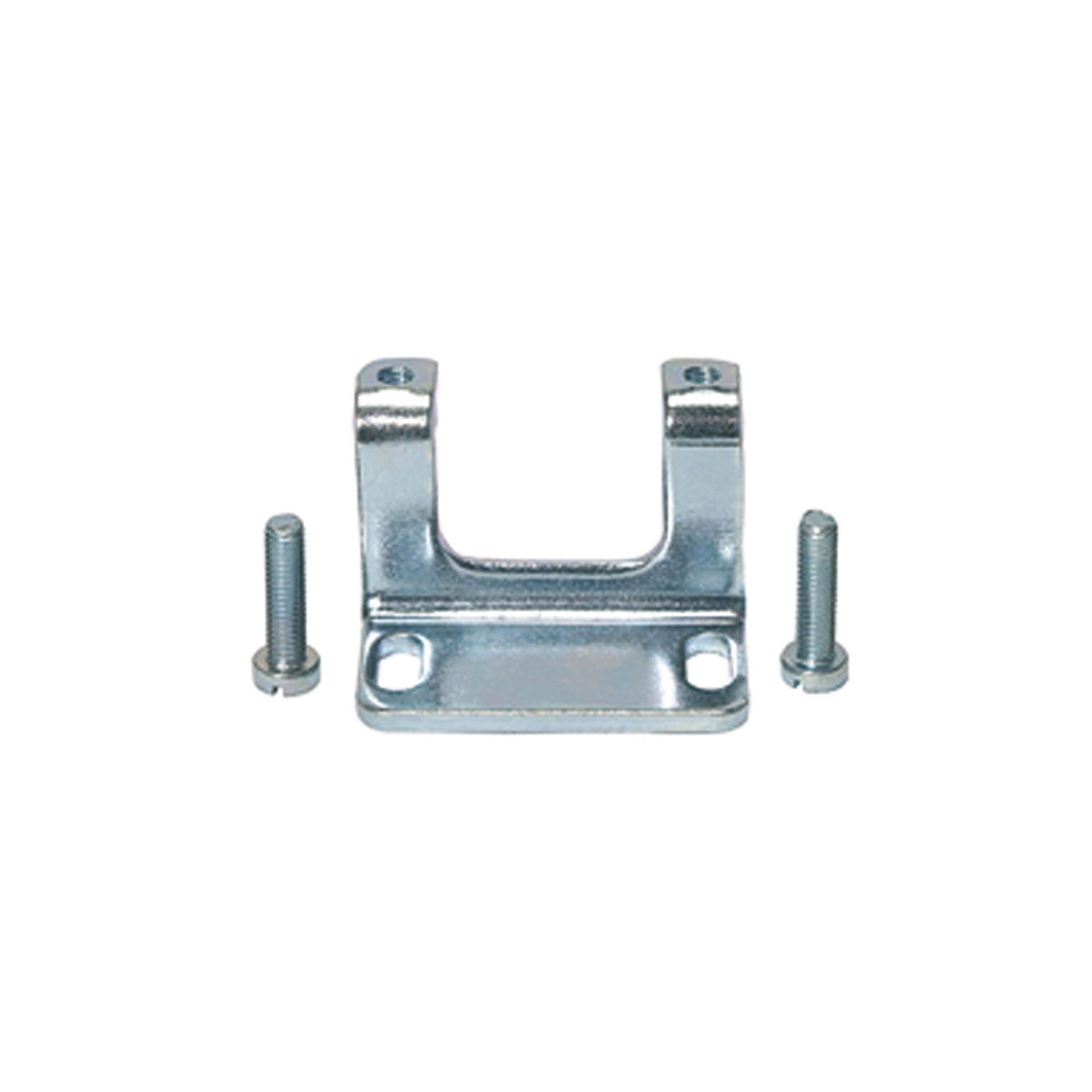

![[100981] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140417/image_128/%5B100981%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=a97bfd0)
|
Type number: H 800 |
4.08 € | |

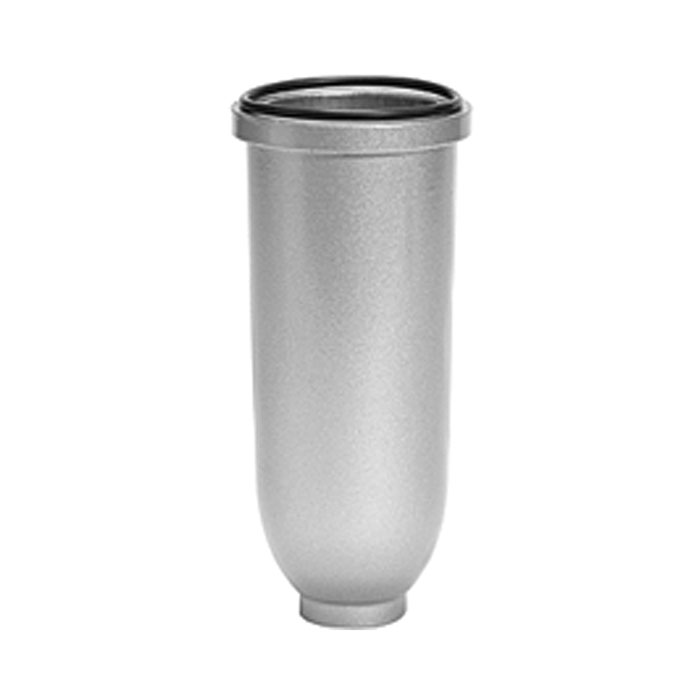

![[101038] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 1](/web/image/product.template/140474/image_128/%5B101038%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%201?unique=46ba5ac)
|
Type number: 740/12 |
14.76 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=7832679)
|
Type number: 760.7.990 |
7.03 € | |

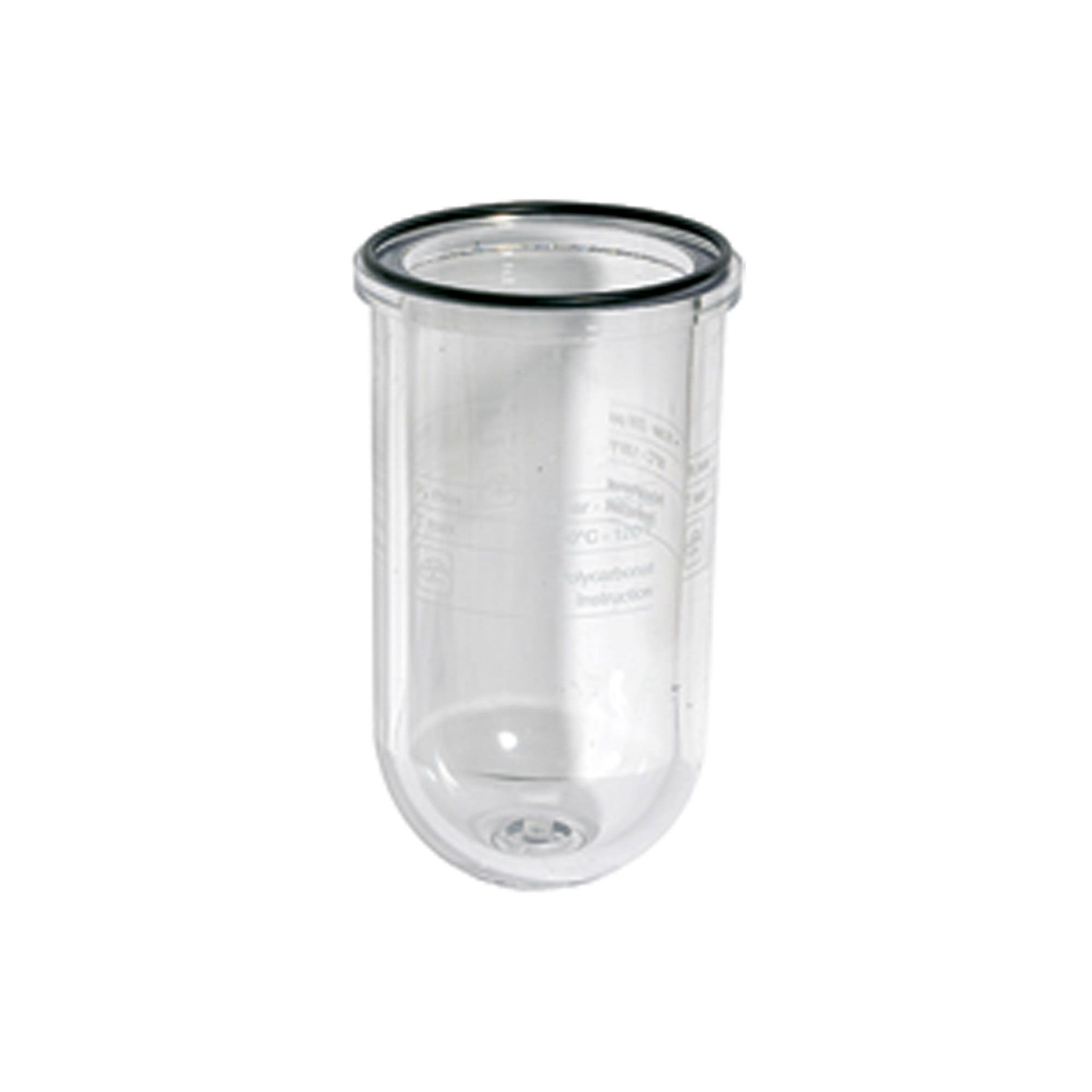

![[101039] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 1](/web/image/product.template/140475/image_128/%5B101039%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%201?unique=b4d607f)
|
Type number: 740/02 |
7.44 € | |
![[100940] RIEGLER Protective cage, for series »Standard«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140376/image_128/%5B100940%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=2c8148a)
|
Type number: SK 01 |
15.53 € | |
