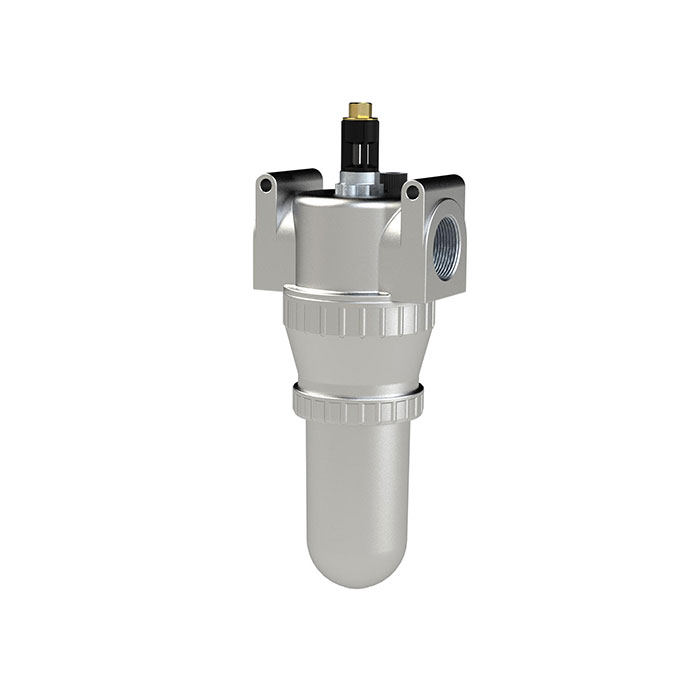

RIEGLER Mist oiler »Standard« with Metal container, Size 4, G 1 1/2
Type number: 764 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "Standard" made of die-cast zinc, painted silver, for compressed air treatment - Type 764 M
The RIEGLER mist lubricator "Standard", with metal container, BG 4, G 1 1/2 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast zinc, painted silver with NBR seals. The maximum inlet pressure is 25 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 1/2 - suitable for common industry standards. The flow rate is 9000 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Tank made of metal container. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Dropper attachment | Zinc-glass-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 1/2 |
| Flow rate | 9000 l/min |
| DN | 45 |
| BG | 4 |
| A | 125 mm |
| C | 70 mm |
| D | 232 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101030] RIEGLER Mist oiler »Standard« with Metal container, Size 1, G 1/4](/web/image/product.template/140466/image_128/%5B101030%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=3f54e33)
|
Type number: 745 M |
57.16 € | |
![[101031] RIEGLER Mist oiler »Standard« with Metal container, Size 1, G 3/8](/web/image/product.template/140467/image_128/%5B101031%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=1095534)
|
Type number: 748 M |
57.16 € | |

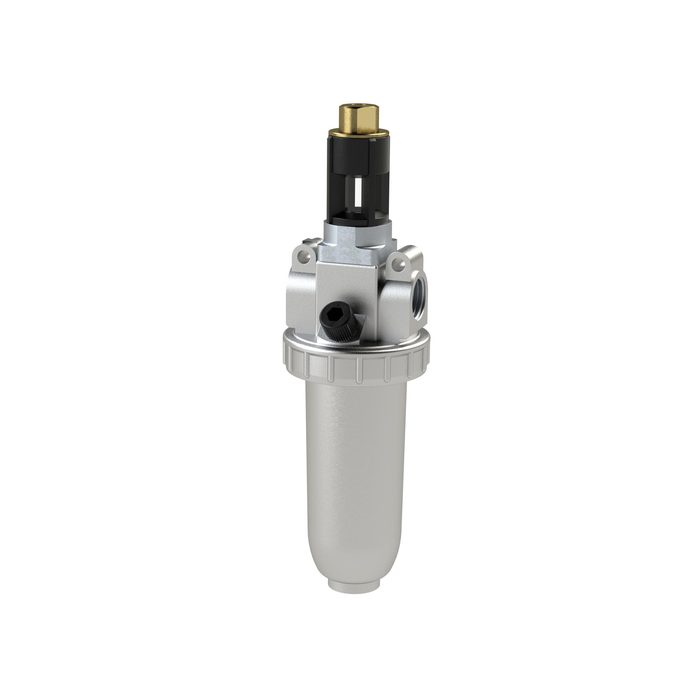

![[101032] RIEGLER Mist oiler »Standard« with Metal container, Size 2, G 3/8](/web/image/product.template/140468/image_128/%5B101032%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%202%2C%20G%203-8?unique=46fff30)
|
Type number: 750 M |
75.86 € | |
![[101035] RIEGLER Mist oiler »Standard« with Metal container, Size 3, G 1](/web/image/product.template/140471/image_128/%5B101035%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%203%2C%20G%201?unique=2aebd8a)
|
Type number: 762 M |
113.43 € | |
![[101033] RIEGLER Mist oiler »Standard« with Metal container, Size 3, G 1/2](/web/image/product.template/140469/image_128/%5B101033%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%203%2C%20G%201-2?unique=ac22acf)
|
Type number: 760 M |
75.86 € | |
![[101034] RIEGLER Mist oiler »Standard« with Metal container, Size 3, G 3/4](/web/image/product.template/140470/image_128/%5B101034%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%203%2C%20G%203-4?unique=5cf0e1f)
|
Type number: 761 M |
113.43 € | |

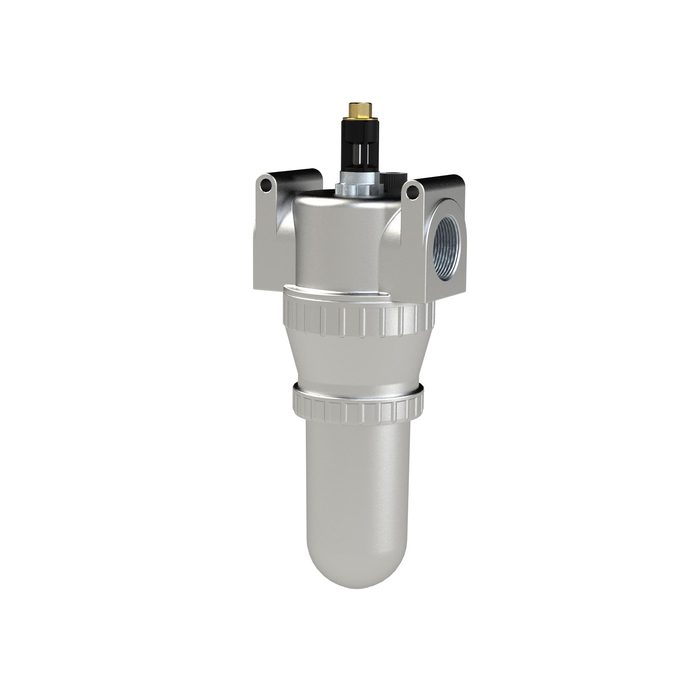

![[101036] RIEGLER Mist oiler »Standard« with Metal container, Size 4, G 1 1/4](/web/image/product.template/140472/image_128/%5B101036%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%20with%20Metal%20container%2C%20Size%204%2C%20G%201%201-4?unique=217aa80)
|
Type number: 763 M |
208.29 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

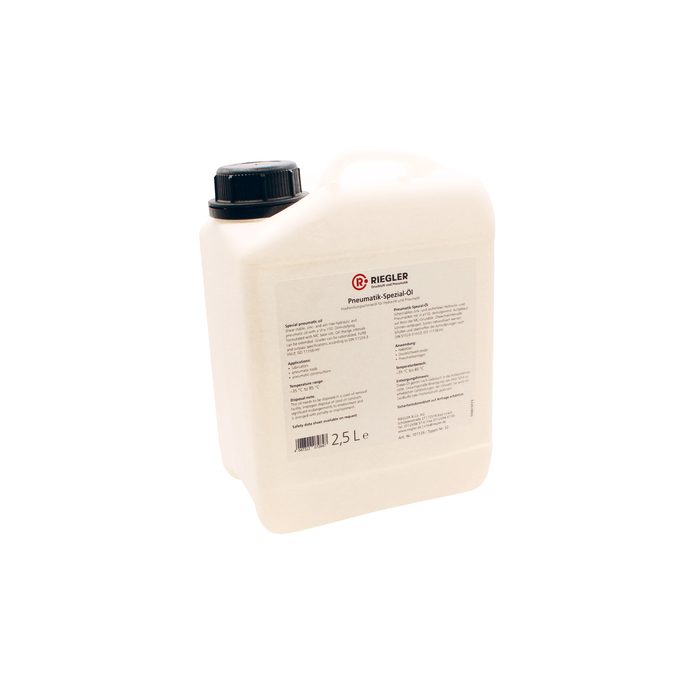

![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=7cc8561)
|
Type number: 32 |
34.09 € | |

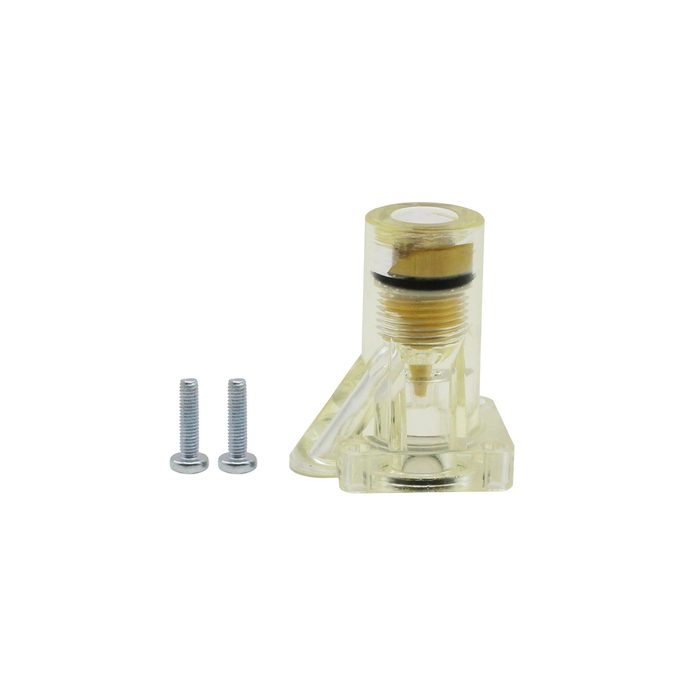

![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=1de8650)
|
Type number: 760.7.990 |
7.03 € | |
![[100949] RIEGLER Protective cage, for series »Standard«, Size 3, G 1/2](/web/image/product.template/140385/image_128/%5B100949%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=ab8d489)
|
Type number: SK 03 |
23.98 € | |

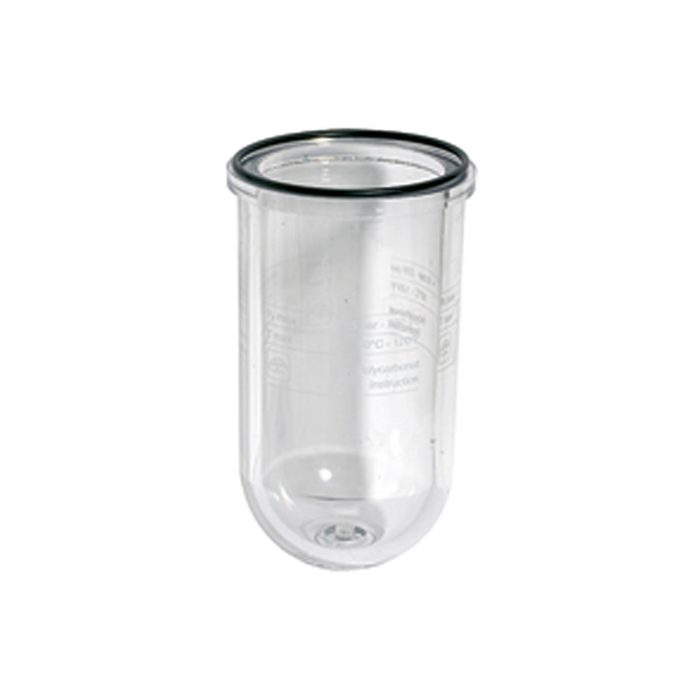

![[101044] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140480/image_128/%5B101044%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=ef4fa96)
|
Type number: 740/04 |
14.52 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

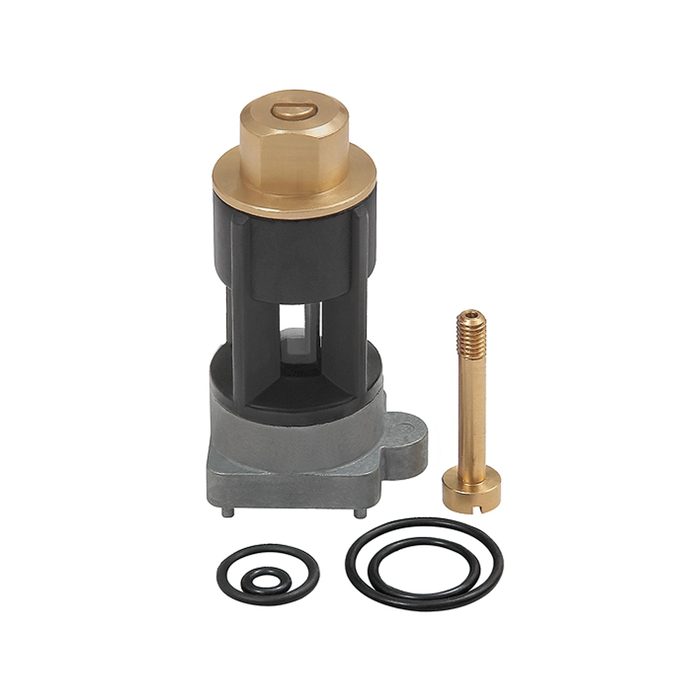

![[101045] RIEGLER Drip cap metal](/web/image/product.template/140481/image_128/%5B101045%5D%20RIEGLER%20Drip%20cap%20metal?unique=0b98621)
|
Type number: 760.7.994 |
34.12 € | |

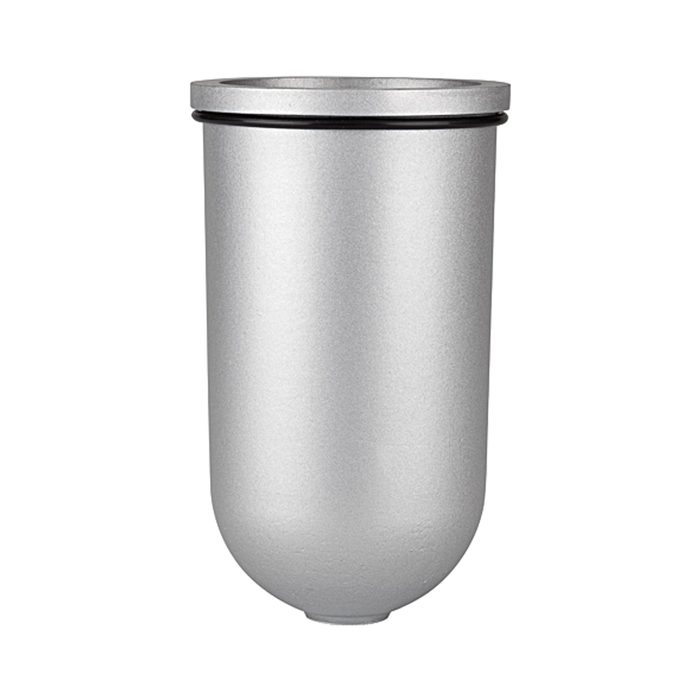

![[101043] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140479/image_128/%5B101043%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=dcb6d3c)
|
