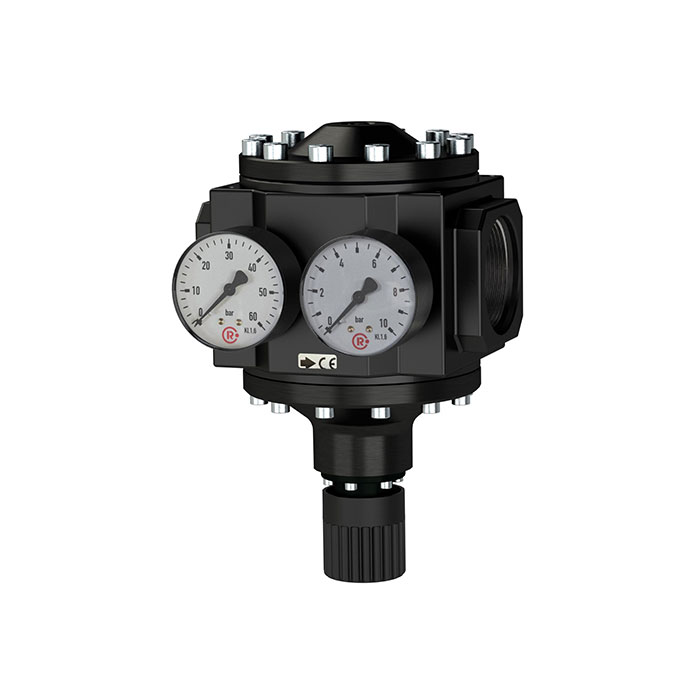

RIEGLER Large pressure regulator, 2 pressure gauges, G 2, 0.5 - 25 bar
Type number: 637.88
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Large pressure regulator with 2 pressure gauges for inlet and outlet pressures, G 2, Control range 0.5 - 25 bar
| Inlet pressure max. | 40 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 8 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| Flow rate | 48000 l/min |
| Thread | G 2 |
| Control range min. | 0.5 bar |
| Control range max. | 25 bar |
| DN | 50 |
| A | 160 mm |
| B | 246 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

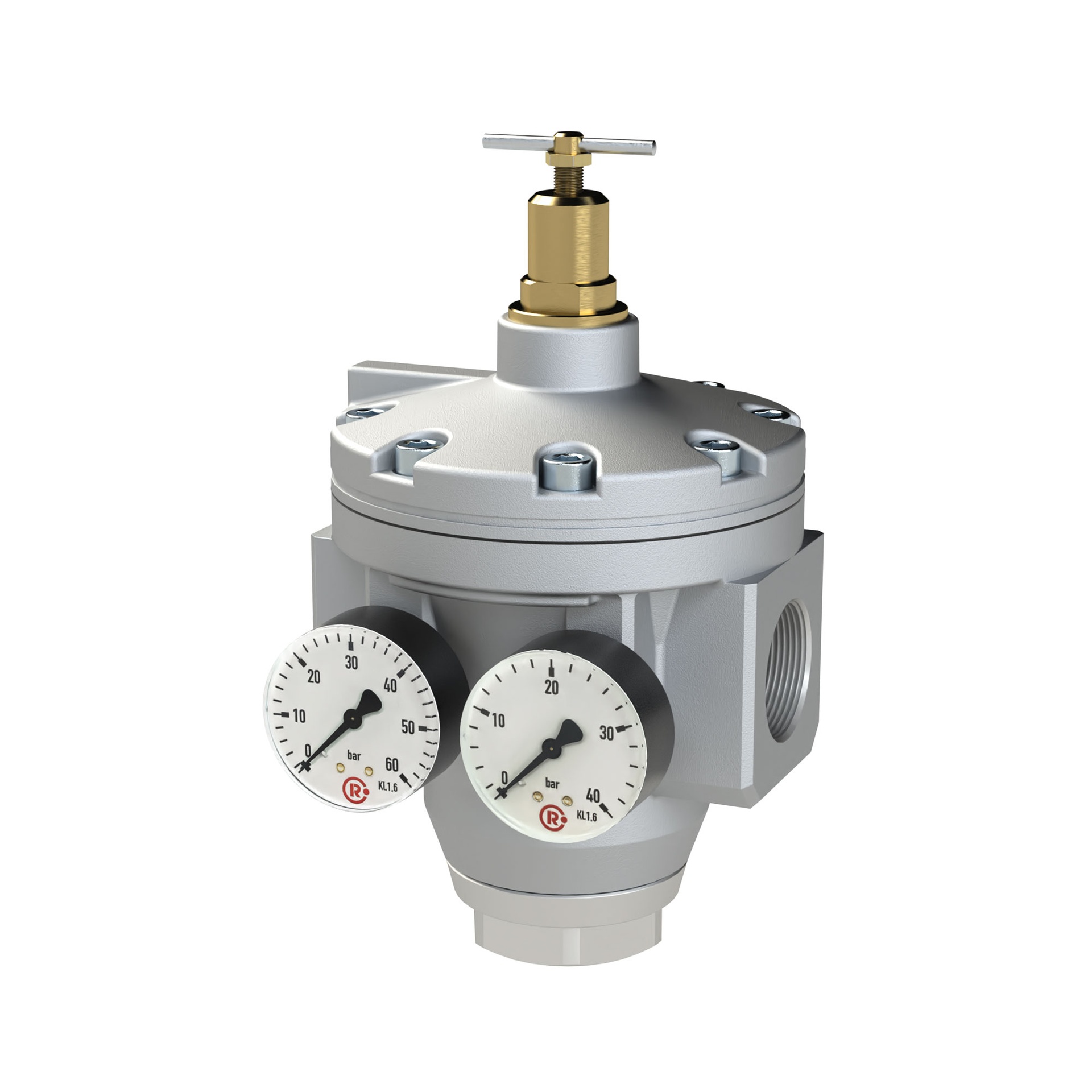

![[101137] RIEGLER Large pressure regulator, 2 pressure gauges, G 1 1/2, 0.5-10 bar](/web/image/product.template/140573/image_128/%5B101137%5D%20RIEGLER%20Large%20pressure%20regulator%2C%202%20pressure%20gauges%2C%20G%201%201-2%2C%200.5-10%20bar?unique=150876c)
|
Type number: 637.76 |
1,003.85 € | |
![[101138] RIEGLER Large pressure regulator, 2 pressure gauges, G 1 1/2, 0.5-16 bar](/web/image/product.template/140574/image_128/%5B101138%5D%20RIEGLER%20Large%20pressure%20regulator%2C%202%20pressure%20gauges%2C%20G%201%201-2%2C%200.5-16%20bar?unique=150876c)
|
Type number: 637.77 |
1,003.85 € | |
![[101139] RIEGLER Large pressure regulator, 2 pressure gauges, G 1 1/2, 0.5-25 bar](/web/image/product.template/140575/image_128/%5B101139%5D%20RIEGLER%20Large%20pressure%20regulator%2C%202%20pressure%20gauges%2C%20G%201%201-2%2C%200.5-25%20bar?unique=150876c)
|
Type number: 637.78 |
1,003.85 € | |
![[101136] RIEGLER Large pressure regulator, 2 pressure gauges, G 1 1/2, 0.5 - 6 bar](/web/image/product.template/140572/image_128/%5B101136%5D%20RIEGLER%20Large%20pressure%20regulator%2C%202%20pressure%20gauges%2C%20G%201%201-2%2C%200.5%20-%206%20bar?unique=150876c)
|
Type number: 637.75 |
1,003.85 € | |
![[101141] RIEGLER Large pressure regulator, 2 pressure gauges, G 2, 0.5 - 10 bar](/web/image/product.template/140577/image_128/%5B101141%5D%20RIEGLER%20Large%20pressure%20regulator%2C%202%20pressure%20gauges%2C%20G%202%2C%200.5%20-%2010%20bar?unique=f8a5469)
|
Type number: 637.86 |
941.81 € | |
![[101142] RIEGLER Large pressure regulator, 2 pressure gauges, G 2, 0.5 - 16 bar](/web/image/product.template/140578/image_128/%5B101142%5D%20RIEGLER%20Large%20pressure%20regulator%2C%202%20pressure%20gauges%2C%20G%202%2C%200.5%20-%2016%20bar?unique=150876c)
|
Type number: 637.87 |
941.81 € | |
![[101140] RIEGLER Large pressure regulator, 2 pressure gauges, G 2, 0.5 - 6 bar](/web/image/product.template/140576/image_128/%5B101140%5D%20RIEGLER%20Large%20pressure%20regulator%2C%202%20pressure%20gauges%2C%20G%202%2C%200.5%20-%206%20bar?unique=150876c)
|
Type number: 637.85 |
941.81 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101144] RIEGLER Mounting bracket with 4 screws, for large pressure regulator](/web/image/product.template/140580/image_128/%5B101144%5D%20RIEGLER%20Mounting%20bracket%20with%204%20screws%2C%20for%20large%20pressure%20regulator?unique=23ad9ea)
|
Type number: H 805 |
23.18 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

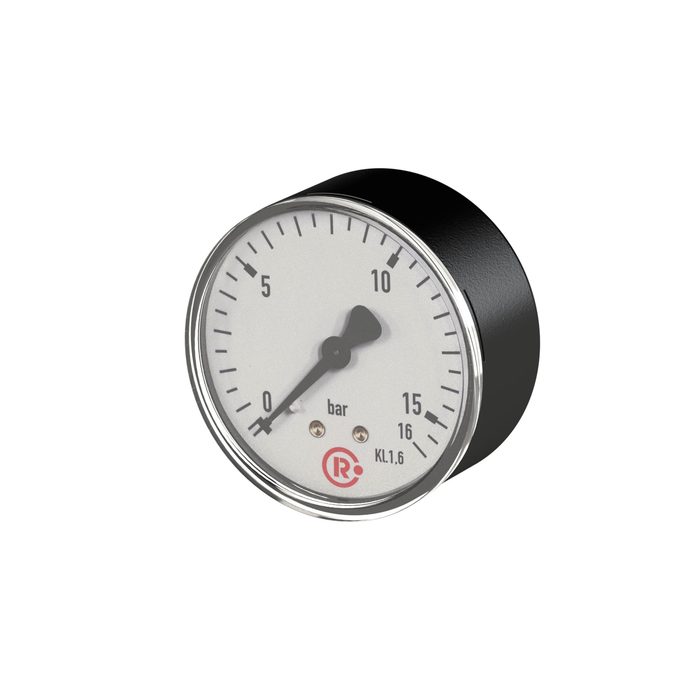

![[101842] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 40 bar, Ø 63](/web/image/product.template/169814/image_128/%5B101842%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2040%20bar%2C%20%C3%98%2063?unique=6a95775)
|
