RIEGLER High pressure regulator 60 bar, G 1, Control range 2 - 35 bar
Type number: 637.913
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER High-pressure regulator 60 bar made of brass, for compressed air treatment, 2 bar - Type 637.913
The RIEGLER high-pressure regulator 60 bar, incl. mano., G 1, control range 2 - 35 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of brass with NBR seals. The control range extends from 2 bar to 35 bar with a maximum inlet pressure of 60 bar. The operating temperature is between -10 °C and 90 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 5000 l/min (at P1 = 20 bar, P2 = 10 bar and pressure drop Δp = 4 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 60 bar |
| Housing | Brass |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 20 bar, P<sub>2</sub> = 10 bar and pressure drop ˆ†<sub>p</sub> = 4 bar |
| Area of application | Compressed air and other neutral, non-flammable gases |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1 |
| Flow rate | 5000 l/min |
| Control range min. | 2 bar |
| Control range max. | 35 bar |
| A | 118 mm |
| B | 257 mm |
| C | 51 mm |
| D | 206 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101151] RIEGLER High pressure regulator 60 bar, G 1, Control range 0.5 - 12 bar](/web/image/product.template/140587/image_128/%5B101151%5D%20RIEGLER%20High%20pressure%20regulator%2060%20bar%2C%20G%201%2C%20Control%20range%200.5%20-%2012%20bar?unique=6bee447)
|
Type number: 637.911 |
621.45 € | |
![[101152] RIEGLER High pressure regulator 60 bar, G 1, Control range 1 - 20 bar](/web/image/product.template/140588/image_128/%5B101152%5D%20RIEGLER%20High%20pressure%20regulator%2060%20bar%2C%20G%201%2C%20Control%20range%201%20-%2020%20bar?unique=23064b7)
|
Type number: 637.912 |
621.45 € | |

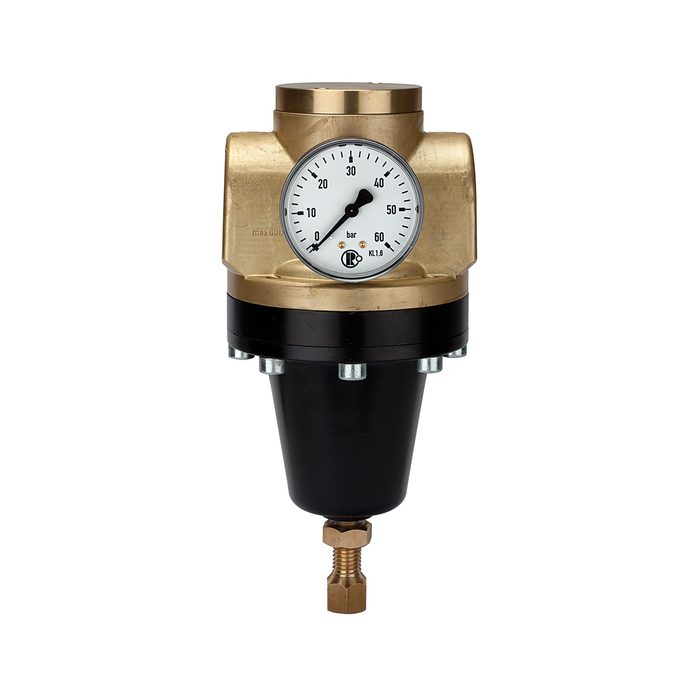

![[101154] RIEGLER High pressure regulator 60 bar, G 1, Control range 3 - 50 bar](/web/image/product.template/140590/image_128/%5B101154%5D%20RIEGLER%20High%20pressure%20regulator%2060%20bar%2C%20G%201%2C%20Control%20range%203%20-%2050%20bar?unique=23064b7)
|
Type number: 637.914 |
621.45 € | |

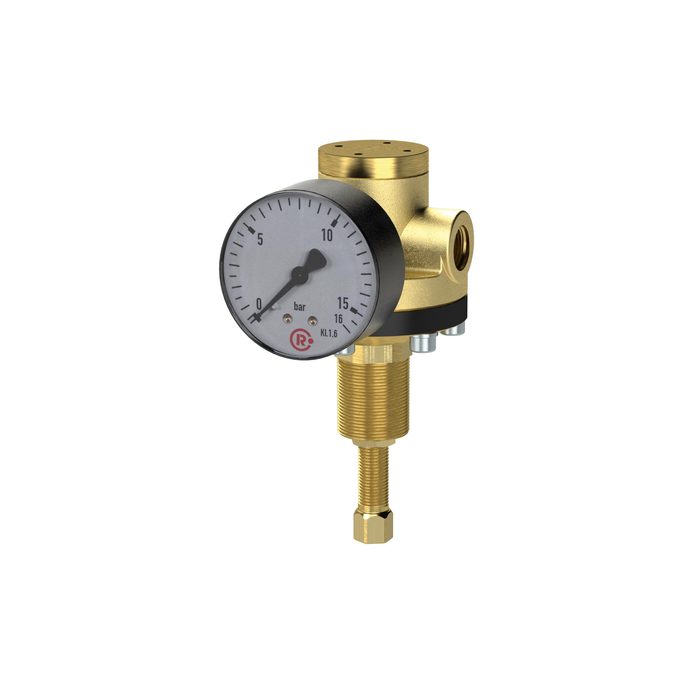

![[101147] RIEGLER High pressure regulator 60 bar, G 3/8, Control range 0.5 - 12 bar](/web/image/product.template/140583/image_128/%5B101147%5D%20RIEGLER%20High%20pressure%20regulator%2060%20bar%2C%20G%203-8%2C%20Control%20range%200.5%20-%2012%20bar?unique=23064b7)
|
Type number: 637.901 |
203.00 € | |
![[101148] RIEGLER High pressure regulator 60 bar, G 3/8, Control range 1 - 20 bar](/web/image/product.template/140584/image_128/%5B101148%5D%20RIEGLER%20High%20pressure%20regulator%2060%20bar%2C%20G%203-8%2C%20Control%20range%201%20-%2020%20bar?unique=a320dc4)
|
Type number: 637.902 |
294.36 € | |
![[101149] RIEGLER High pressure regulator 60 bar, G 3/8, Control range 2 - 35 bar](/web/image/product.template/140585/image_128/%5B101149%5D%20RIEGLER%20High%20pressure%20regulator%2060%20bar%2C%20G%203-8%2C%20Control%20range%202%20-%2035%20bar?unique=38cdadd)
|
Type number: 637.903 |
294.36 € | |
![[101150] RIEGLER High pressure regulator 60 bar, G 3/8, Control range 2 - 50 bar](/web/image/product.template/140586/image_128/%5B101150%5D%20RIEGLER%20High%20pressure%20regulator%2060%20bar%2C%20G%203-8%2C%20Control%20range%202%20-%2050%20bar?unique=e397791)
|
Type number: 637.904 |
294.36 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

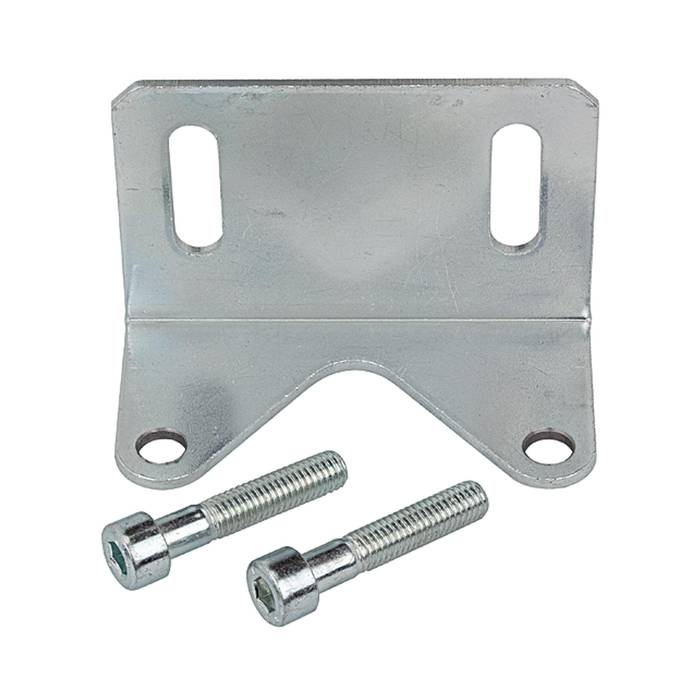

![[101158] RIEGLER Mounting fastening, for high pressure regulator 60 bar, G 1](/web/image/product.template/140594/image_128/%5B101158%5D%20RIEGLER%20Mounting%20fastening%2C%20for%20high%20pressure%20regulator%2060%20bar%2C%20G%201?unique=26db613)
|
Type number: 302-19 |
15.37 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

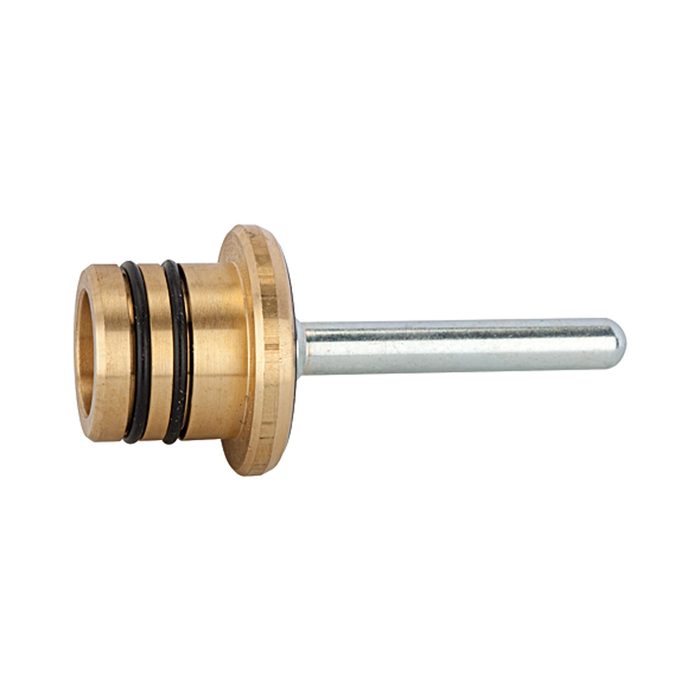

![[101159] RIEGLER Sealing cone assembly, for high pressure regulator 60 bar, G 1](/web/image/product.template/140595/image_128/%5B101159%5D%20RIEGLER%20Sealing%20cone%20assembly%2C%20for%20high%20pressure%20regulator%2060%20bar%2C%20G%201?unique=70b2141)
|
