RIEGLER Precision pressure regulator, G 1/4, Control range 0.1 - 3 bar
Type number: 637.63
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Precision pressure regulator without pressure gauge, non-ferrous metal-free, G 1/4, control range 0.1 - 3 bar, PE max. 16 bar, max. ambient temperature 60 °C
| Inlet pressure max. | 16 bar |
| Medium | ultra-fine filtered, unlubricated compressed air (0.01 µm) |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Intrinsic air consumption max. | 0.2 l/min, depending on inlet pressure and control range |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Flow rate | 750 l/min |
| Pressure gauge connection | G 1/4 |
| Thread | G 1/4 |
| Control range min. | 0.1 bar |
| Control range max. | 3 bar |
| A | 60 mm |
| B | 152 mm |
| C | 120 mm |
| D | 32 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b, 6b-I |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101225] RIEGLER Precision pressure regulator, G 1/4, Control range 0.1 - 2 bar](/web/image/product.template/140661/image_128/%5B101225%5D%20RIEGLER%20Precision%20pressure%20regulator%2C%20G%201-4%2C%20Control%20range%200.1%20-%202%20bar?unique=d639913)
|
Type number: 637.62 |
73.67 € | |
![[101227] RIEGLER Precision pressure regulator, G 1/4, Control range 0.2 - 5 bar](/web/image/product.template/140663/image_128/%5B101227%5D%20RIEGLER%20Precision%20pressure%20regulator%2C%20G%201-4%2C%20Control%20range%200.2%20-%205%20bar?unique=ee42f92)
|
Type number: 637.64 |
73.67 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

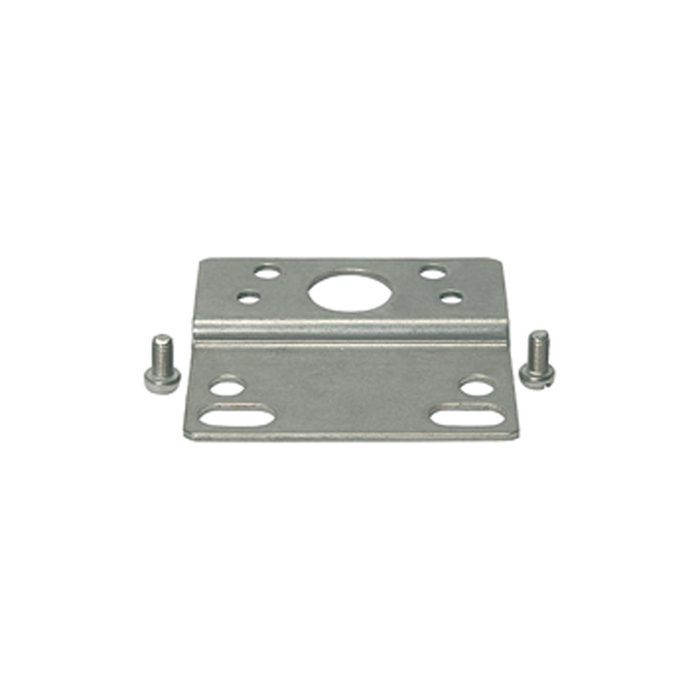

![[101220] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140656/image_128/%5B101220%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=985eb18)
|
Type number: H 820 |
6.84 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

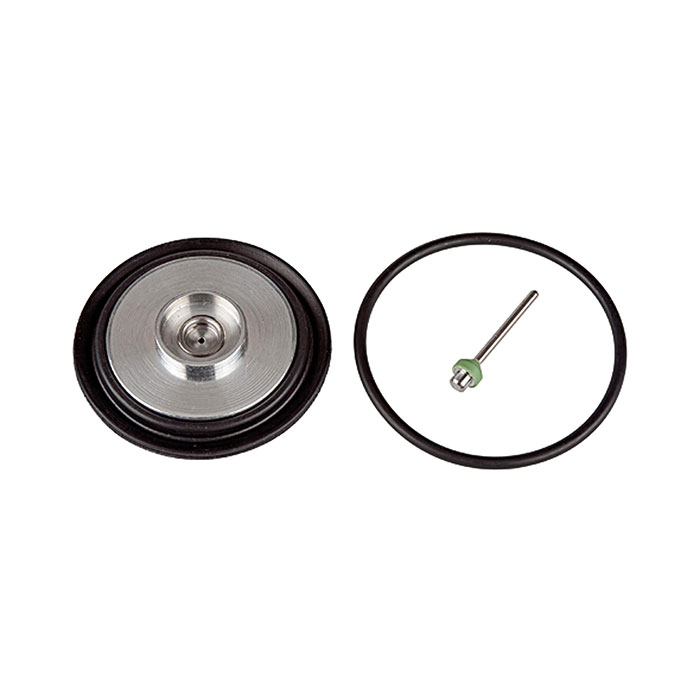

![[101221] RIEGLER Wear part set: Diaphragm, Valve cone, Valve seat, O-ring](/web/image/product.template/140657/image_128/%5B101221%5D%20RIEGLER%20Wear%20part%20set:%20Diaphragm%2C%20Valve%20cone%2C%20Valve%20seat%2C%20O-ring?unique=8f77552)
|
Type number: 22.662.4 |
30.46 € | |
