RIEGLER Precision pressure regulator, G 1/4, Control range 0.2 - 6 bar
Type number: 637.73
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

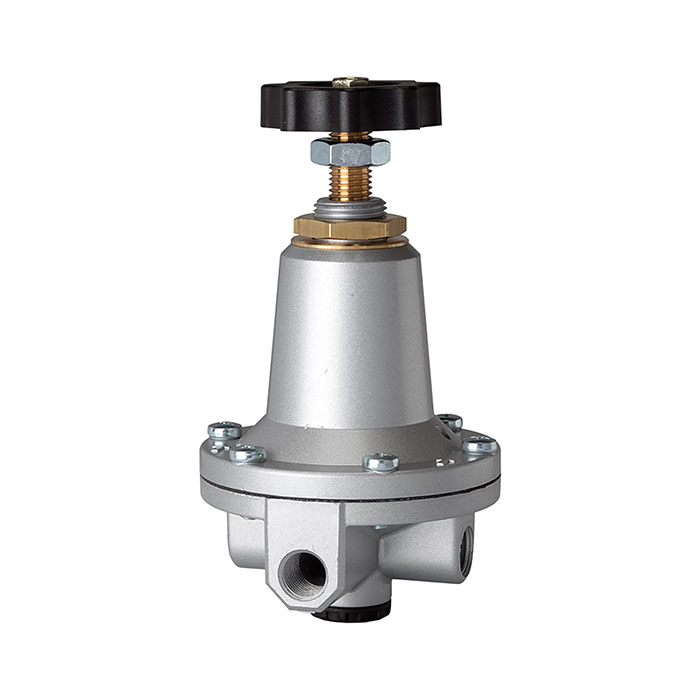

RIEGLER Precision pressure regulator without internal air consumption made of die-cast zinc - Type 637.73
The RIEGLER precision pressure regulator without internal air consumption, G 1/4, 0.2 - 6 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.2 bar to 6 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for ultra-fine filtered (5 µm), oil-free compressed air, neutral gases. The flow rate is 540 l/min. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Medium | ultra-fine filtered (5 µm), oil-free compressed air, neutral gases |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | FPM |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Pressure gauge connection | G 1/4 |
| Thread | G 1/4 |
| Flow rate | 540 l/min |
| Control range min. | 0.2 bar |
| Control range max. | 6 bar |

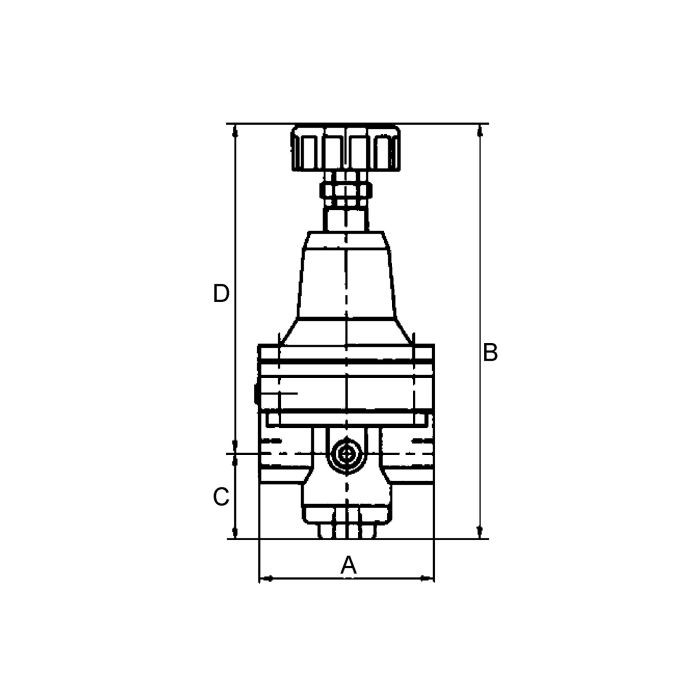

| A | 82 mm |
| B | 148 mm |
| C | 19.5 mm |
| D | 128.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Valve cone | FPM |
| Class name | FLEX |
